Dual Magnification Stereo Microscope
Article No. 12032

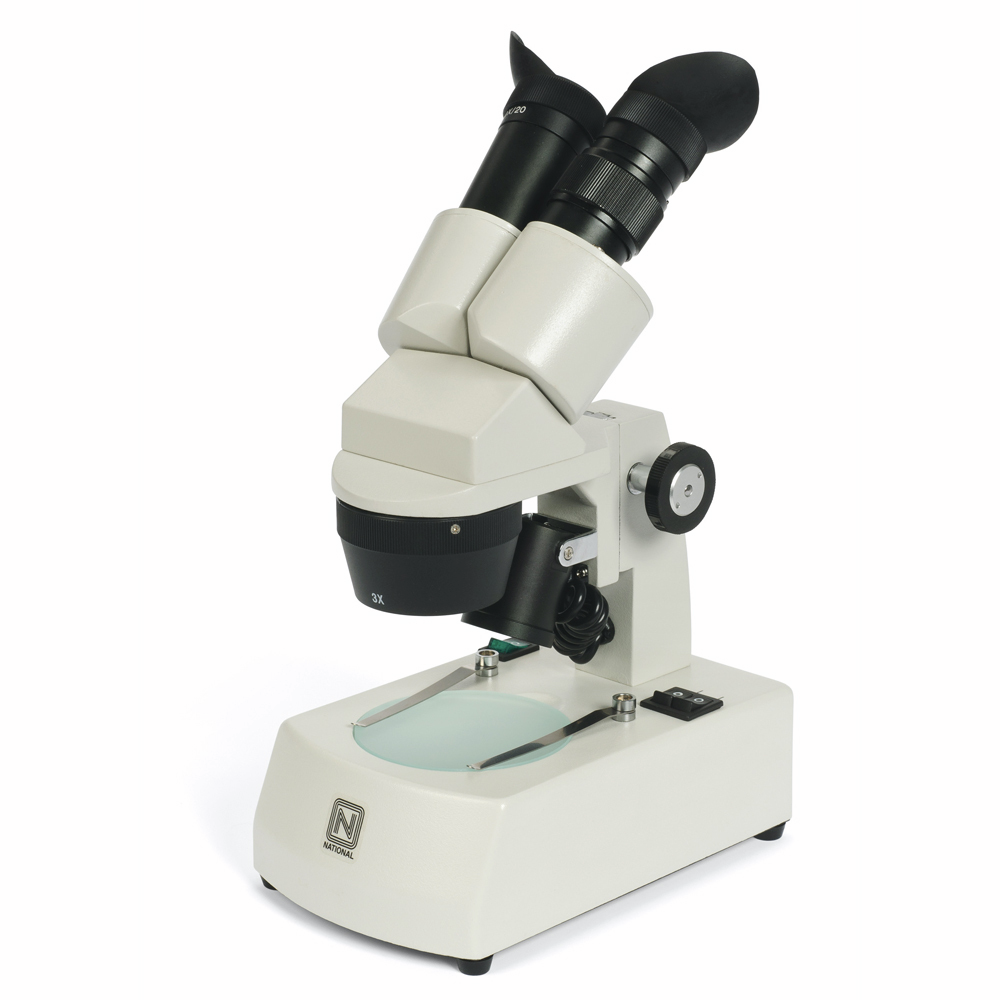

Dual Magnification Stereo Microscope
The Dual Magnification Stero Microscope combines the precise optical performance of our most popular stereo model with a newly enhanced illumination system. Specially designed incidental lamp can be directed precisely where needed, includes intensity control. Transmitted illumination is LED for optimum light and very cool temperature to prolong life of live material.
Features
- Paired widefield 10x eyepieces, 45° inclined, diopter adjustment, interpupillary adjustment from 55mm to 75mm.
- Eyepieces equipped with reticle holder/retainer to accept reticle with 23mm O.D.
- Viewing head rotates 360°, adjusts up or down on post mount to accommodate different size specimen.
- Magnification changed by rotating objective turret 90° to positive click stops.
- Top light (incidental) is LED with adjustable beam and variable intensity control.
- Bottom light (transmitted) is LED.
- 4-position light control: top only/bottom only/top & bottom/off.
- Heavy-duty 3-wire grounded cord and plug.
- 110V-240V internal auto-switching power supply.
- Supplied with American style IEC power cord.
- Additional wall adapter for 240V operation required.
- Heavy-duty rack & pinion focusing with slip clutch and tension adjustment.
- Blue filter for transmitted light.
- Locked-on stage clips.
- Professional, all-metal frame.
- Heavy-duty post mount with locking collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
- Molded styrofoam container with vinyl dustcover & rubber eyeshields.
Technical Attributes
-
- Data
-
Magnification: 2x & 4x Zoom Height: 13 in. (325mm) Base Width: 6-3/4 in. (171mm) Base Depth: 9-1/2 in. (242mm) Individual Ship Weight: 16 lbs (7.3 kgs) Individual Ship Dimensions: 22x15x15 in. (550x375x375mm) Optical Specifications Objective Eyepiece Working Distance Maximum Specimen Height WF5X
(Optional)WF10X
(Supplied)WF15X
(Optional)WF20X
(Optional)Total Mag. Field Size Total Mag. Field Size Total Mag. Field Size Total Mag. Field Size 2X 10X 11mm 20X 10mm 30X 6.5mm 40X 5mm 94mm 72mm 4X 20X 5.5mm 40X 5mm 60X 3.2mm 80X 2.5mm 94mm 72mm
Delivery Content
Includes two 80mm stage plates: frosted glass and reversible black/white plastic contrast plate.
