Digital Zoom Stereo Microscopes

Article No. 12033

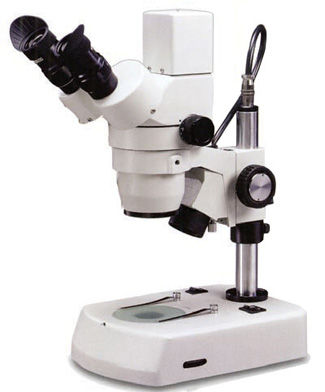

DC5-420TH Digital Stereo Microscope

The Digital Zoom Stereo Microscope is a high resolution 3.0 mega pixel digital camera, built into microscope. The convenience and versatility of viewing large picture at 10x magnification, then zooming continuously all the way to close-up detail at 40x magnification. Upright, unreversed 3-dimensional image remains in focus throughout zoom range.

$1,883.00 excl. taxes & shipping cost


  • Paired widefield 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55mm to 75mm.
  • Superb optical clarity and reliable mechanical engineering assure years of top performance. This microscope is fully functional, independent of camera application.
  • Achromatic, color corrected lenses.
  • Top light is 12v 15 watt halogen, bi-pin with directional beam and rheostat control.
  • Bottom light is 12V 10 watt halogen, bi-pin.
  • Base mounted light controls permit choice of top only, bottom only, or dual illumination.
  • 12VDC power converted operates on 100v-240v 50H/60H current, without need of additional transformer.
  • 2.5 amp time delay fuse.
  • Large dual focusing knobs with slip clutch to prevent damage to mechanism.
  • Tension adjustment eliminates focus “drift”.
  • Two 80mm stage plates (frosted glass and reversible black/white plastic contrast plates).
  • Blue filter for transmitted light.
  • Locked on stage clips.
  • Professional, all-metal frame, gray enamel finish.
  • Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
  • Molded styrofoam container with rubber eyeshields and vinyl dustcover.

Technical Attributes

  • Data
    Magnification:10x - 40x Zoom
    Deep Stage Surface:165mm wide x 220mm
    Net Weight:11.2 lbs (5.1 kgs)
    Individual Ship Weight:18 lbs (8.2 kgs)
    Individual Ship Dimensions:18x17x11 in. (450x425x275mm)

Delivery Content

Supplied with power pack that automatically converts input of 100-240Vac 50-60Hz to 12V output


Lamp Repl 10W Halogen Front Filament Dc
