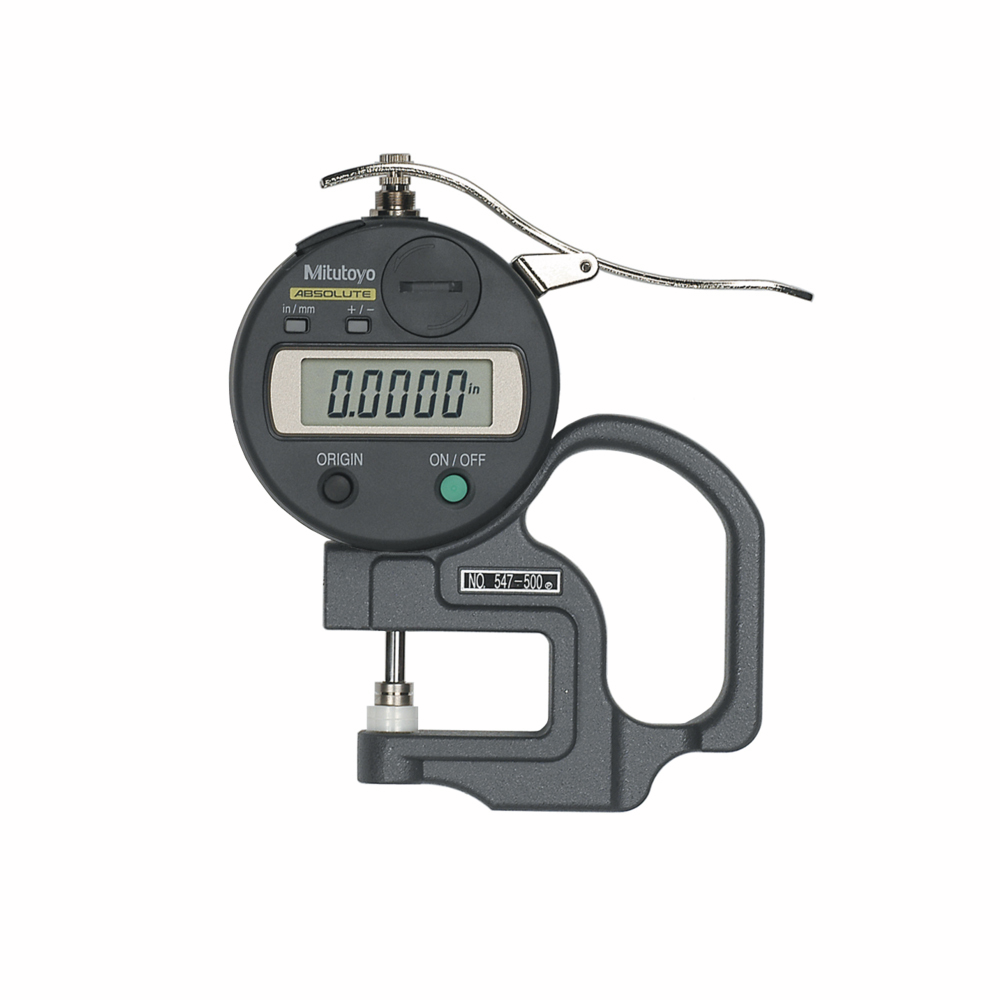

Mitutoyo Digimatic Thickness Gauges

Article No. 12156

Digitmatic Flat Anvil, 0-0.47x0.0005”

  • ABS Digital Thickness Gauge with ID-S
  • Inch/Metric
  • 0-0.47", 0.0005", Standard
  • Measure film, paper, etc., with flat contact points

Select your model

$1,091.00 excl. taxes & shipping cost

Features

  • The ABSOLUTE Mitutoyo digital gauge quickly measures the thickness of different materials or objects with high accuracy.
  • Measurements are shown on an easy-to-read LCD display.
  • Metric/Inch models available
  • Available with deep-throated frames (flat anvil type)
  • The tube/pipe thickness gauge features a curved contact point which provides highly accurate thickness measurements of tube and pipe walls.
  • Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
  • Carbide contact points are available on model 547-400
  • Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
  • SPC output function allows for quick and easy data management in real time
  • Unlimited response speed eliminates over-speed errors
  • Measuring force is 1.5N or less
  • Supplied in a fitted plastic case

Technical Attributes

  • Data
    Part No.:121571215612155
    Range:0-0.47" / 0-12mm0-0.47" / 0-12mm0-0.4" / 0-12mm
    Resolution:0.0005" / 0.01mm0.00005" / 0.001mm.0005" / 0.01mm
    Accuracy:±0.001"±0.00015"±0.001"
    Indicator Type:Digimatic IDSDigimatic IDCDigimatic IDS
    Measuring Force:1.5 or lessN3.5 or lessN1.5 or lessN
    Spindle Material:CeramicCarbideCeramic

Delivery Content

Comes with fitted plastic case
