Cylindrical Mandrel Tester

Article No. 5710

Cylindrical Mandrel Set, ISO
Lever Bend Tester with multiple specific size mandrels

  • Rod diameters from 2 to 32 mm
  • Handle design to make it easy to bend the metal panel
  • Product selection is compliant with method ISO 1519

Select your model

$2,600.00 excl. taxes & shipping cost

Features

Cylindrical mandrel testers evaluate a coating’s flexibility in regards to bending properties. A coated sheet metal is bent over a defined radius to evaluate elongation / adhesion as well as resistance to cracking.
The test procedure for elongation check is performed with fast speed (1s), while cracking is evaluated with slow speed (15 sec). The smaller the bend radius, the greater the material flexibility.
They are used in QC for simple Pass/Fail check or in R&D to determine the smallest mandrel size.

Two models are available:

  • Hand Bend Tester, a low cost solution with simple hand operation for Pass/Fail test according to ASTM D522.
  • Lever Bend Tester with operation using a lever for Pass/Fail test according to ISO 1519.



Technical Attributes

    General

  • Weight
    4.4 kg
  • Weight
    9.7 lb
  • Dimensions: L x W x H
    38 x 14 x 15 cm
  • Dimensions: L x W x H
    15 x 5.5 x 5.9 in

Standards

ISO

1519

ASTM

D522 D1737

Procedure

  • Apply the paint film on sheet metal strips
  • Coat and dry film carefully to ensure reproducible results
  • For testing, uniformly bend the coated samples over the bending mandrels within 1-2 sec at 180 degrees
  • Starting with the largest bending radius, the test is continued until reaching the bending radius at which the film shows cracks

Delivery Content

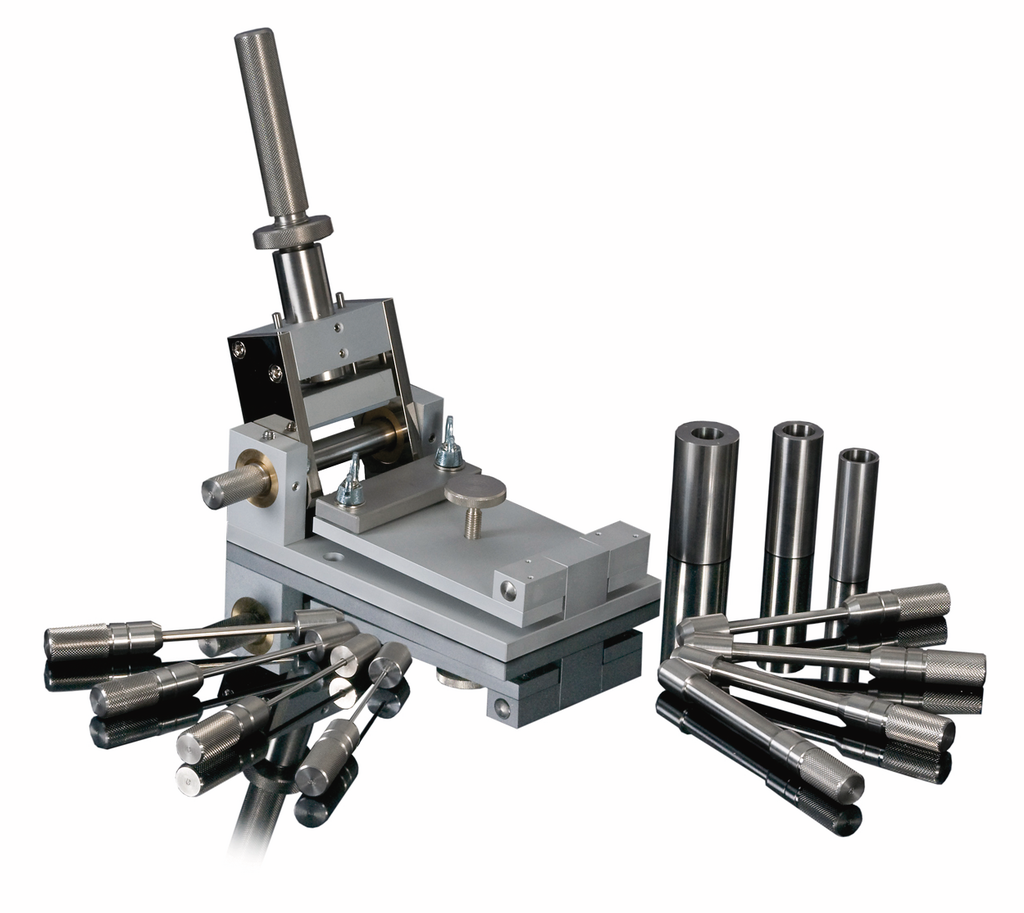

Cylindrical Mandrel Bending Tester
Set of 12 stainless steel rods with dia. 2 mm to 32 mm
Frame
Manual
