PosiTest LPD Complete Pinhole Detector Kit

PosiTest LPD Holiday Detector

Art. No.: 11844

Positest Pinhole Detector Complete Kit

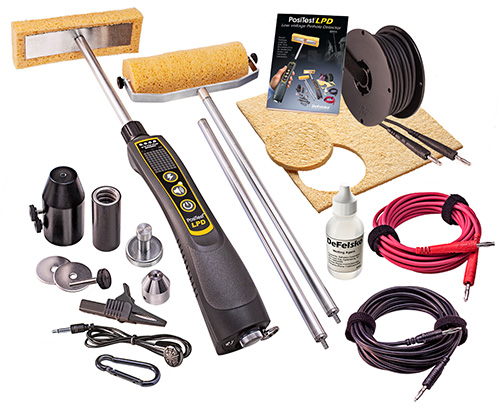

  • PosiTest Pinhole Detector Complete Kit
  • Includes: Positest LPD, Base Tube, 3 AAA Batteries, Rectangle Sponge Hardware, Rectangle Sponge, 4.5 M (15') Ground Wire, Insulating Collar, Ear Bud, Wrist Strap, Carabiner, Long Form Certificate Of Calibration Traceable To Nist, Instructions, Hard Shell Case, Two Year Warranty, Rectangle (Flat), Roller, Internal Diameter, Additional 20 cm x 20 cm (8"x8") sheet sponge for custom usages, Wetting agent, Extension rods with additional 0.6 m (2') of reach, Universal adapters for paint roller extensions, 12 m (40') ground wire, 4.5 m (15') hot wire, and Magnetic grounding post

Select your Model

$1,265.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The PosiTest LPD is a Low Voltage Pinhole Holiday Detector that is often used by pipeline inspection companies to detect holidays, pinholes and other discontinuities on metal and concrete substrates.
  • Easy-to-use interface with bright, multi-function LEDs
  • Ready to measure, both kits come with everything needed for testing
  • Audibly and visibly alerts when flaws are detected
  • Light, ergonomic design
  • Rugged, environmentally sealed enclosure
  • Weatherproof, dustproof and shockproof, meets or exceeds IP65
  • Two year warranty
  • A wide range of adaptable sponge hardware for a variety of test configurations
  • Common threads and connectors allow for maximum flexibility
  • Headphone jack with included earbud for noisy environments
  • Uses 3 AAA alkaline or rechargeable batteries
  • 4 voltage output options conform to a variety of standards
  • Automatic self-test verifies voltage calibration
  • Regulated voltage outputs will not drop under load
  • Long Form Certificate of Calibration included
  • GroundSense™ visibly reassures the user that the instrument is properly grounded
  • Conforms to international standards including ISO, ASTM and NACE

Technical Data Chart
Data
Voltage:9V ± 5%67.5V ± 5%67.5V ± 5%90V ± 5%
Sensitivity:90kΩ ± 3%80kΩ ± 3%90kΩ ± 3%400kΩ ± 3%
Thickness Range:0 - 500 µm (0 - 20 mils)
Temperature Range:-10 - 50° C (14 - 122° F)
Battery Life:> 150 hrs (depending on battery type)
IP Rating:meets or exceeds IP65
Size:27 x 6 x 5.5 cm (10.6" x 2.3" x 2.1") without wand
Weight:180 g (6.4 oz.) without batteries
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net
Positest LPD
Base Tube
(3) AAA Batteries
Rectangle Sponge Hardware
Rectangle Sponge
4.5 M (15') Ground Wire
Insulating Collar
Ear Bud
Wrist Strap
Carabiner
Long Form Certificate Of Calibration Traceable To Nist
Instructions
Hard Shell Case
Two Year Warranty
Rectangle (Flat)
Roller
Internal Diameter
"Additional 20 cm x 20 cm (8""x8"") sheet sponge for custom usages"
Wetting agent
Extension rods provide an additional 0.6 m (2') of reach
Universal adapters for use with existing paint roller extensions
12 m (40') ground wire
4.5 m (15') hot wire
Magnetic grounding post
PosiTest LPD Rectangular Sponge

Rectangular Sponges For Positest LPD

Article No: 11845

Price: $16.00

PosiTest LPD Roller Sponge

Roller Sponges For Positest LPD

Article No: 11846

Price: $32.00

PosiTest LPD Extension Rod

12" Extension Rod For Positest LPD

Article No: 11847

Price: $65.00

PosiTest LPD Basic Pinhole Detector Kit

Positest Pinhole Detector Basic Kit

Article No: 11843

Price: $495.00
