Hardness Test Pen
Article No. 11789

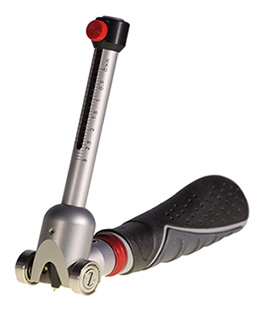

Hardness Test Pen Pro With Tips/Springs
The Hardness Test Pen is a pocket instrument for testing the hardness and wear/scratch resistance of materials such as coatings, lacquers, plastics or related products.
Features
- Ergonomic design with anti-slip texture on the holding point
- Made of maintenance-free anodised aluminium, tips in tungsten carbide
- Available in 2 models Basic and Pro
- Very stable load on tip
- Easy to apply force
- Can be used on flat and curved surfaces
Standards
Can be used in accordance with ISO 1518; AS 3894.4; EN 438-2, SIS 184188, DIN 55656 and Corporate Standards Bosch, Volvo, Opel, van Laar
Procedure
- Release the red knob on the slider and set the slider to the required position and fasten it by turning the red knob clockwise. (Note the beveled edge of the slider indicates the correct position).
- Place the tester perpendicular on the surface to be tested and press the holder, using light force, in order to create load on the tip. The black guide tip should not touch the sample.
- A tungsten carbide tip is drawn over the surface with a defined constant pressure. The pressure on the tip can be changed using the slide or by changing the spring.
- Move the tester over the surface over a length of about 10 mm with a constant speed.
- A visual mark on the surface after use of the Hardness Test Pen indicates a fail of the surface hardness or wear/scratch resistance.
- Observe the surface to check for visible marks as indicated by standard.
Delivery Content
Pro Hardness test pen, Handle / Wheel assembly, Tip Ø 1mm, Tip Ø 0. 75mm, Tip Ø 0. 5mm, Spring 0 - 3 N (300g- 0.671lbF) (Blank), Spring 0 - 10 N (1000g - 2.248lbF) (Blue), Spring 0 - 30 N (3000g - 6.74lbF) (Red), Allen key
Accessories
11783
Replacement Tip For Hardness Pen 0.5 mm
$122.00
11784
Replacement Tip For Hardness Pen 0.75 mm
$119.00
11785
Replacement Tip For Hardnss Pen 1mm
$119.00
11786
Spring For Hardness Test Pen 300G
$108.00
11787
Spring For Hardness Test Pen 1000G
$108.00
11788
Spring For Hardness Test Pen 3000G
$108.00
