PosiTector BHI Barcol Hardness Impressor

Article No. 11758

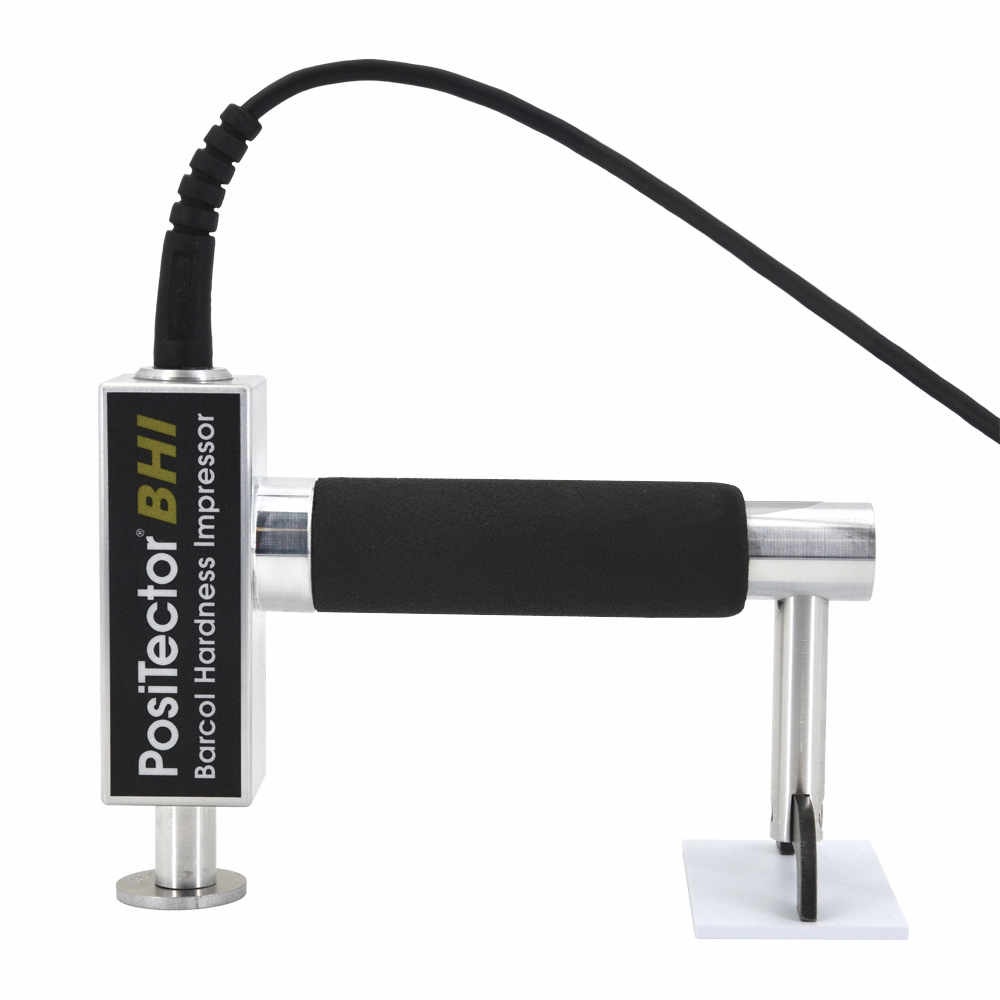

Positector BHI Barcol Hardness, Probe

  • PosiTector BHI Probe
  • Probe Only


Select your model

$920.00 excl. taxes & shipping cost


  • The PosiTector BHI Barcol Hardness Impressor measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic.
  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • User-adjustable measurement time with on-screen countdown
  • Includes spare, field replaceable indentor with replacement tool
  • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings
  • Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Hard-shell carrying case included
  • Two year warranty on gage body AND probe
  • Certificate of Calibration included
  • Hi-RES mode increases displayed resolution for precision applications
  • Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
  • Conforms to national and international standards including ASTM
  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • 1 and 2 point calibration options with Cal Reset to restore factory settings
  • Selectable display languages
  • Auto rotating display with Flip Lock
  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture, save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Instant-on feature quickly powers up the gage if recently powered down
  • Up to 30% longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Updates via the internet keep your gage current
  • Includes PosiSoft suite of software for viewing, analyzing and reporting data

Technical Attributes

  • Data
    Range:20 - 100 Barcol
    Resolution:0.1 Barcol
    Accuracy:±2 Barcol
    Gage Body Size:5.4" x 2.4" x 1.1" (137 x 61 x 28 mm)
    Gage Body Weight:4.9 oz. (140 g) without batteries
    Probe Size:5.7" x 3.8" x 2.5" (145 x 97 x 64 mm)
    Probe Headroom:5.5" (140 mm)
    Probe Weight:14.1 oz. (400 g)


Conforms to ASTM B648/D2583, DIN EN 59 and AS/NZS 3572.22

Delivery Content

Probe Only for Positector BHI
