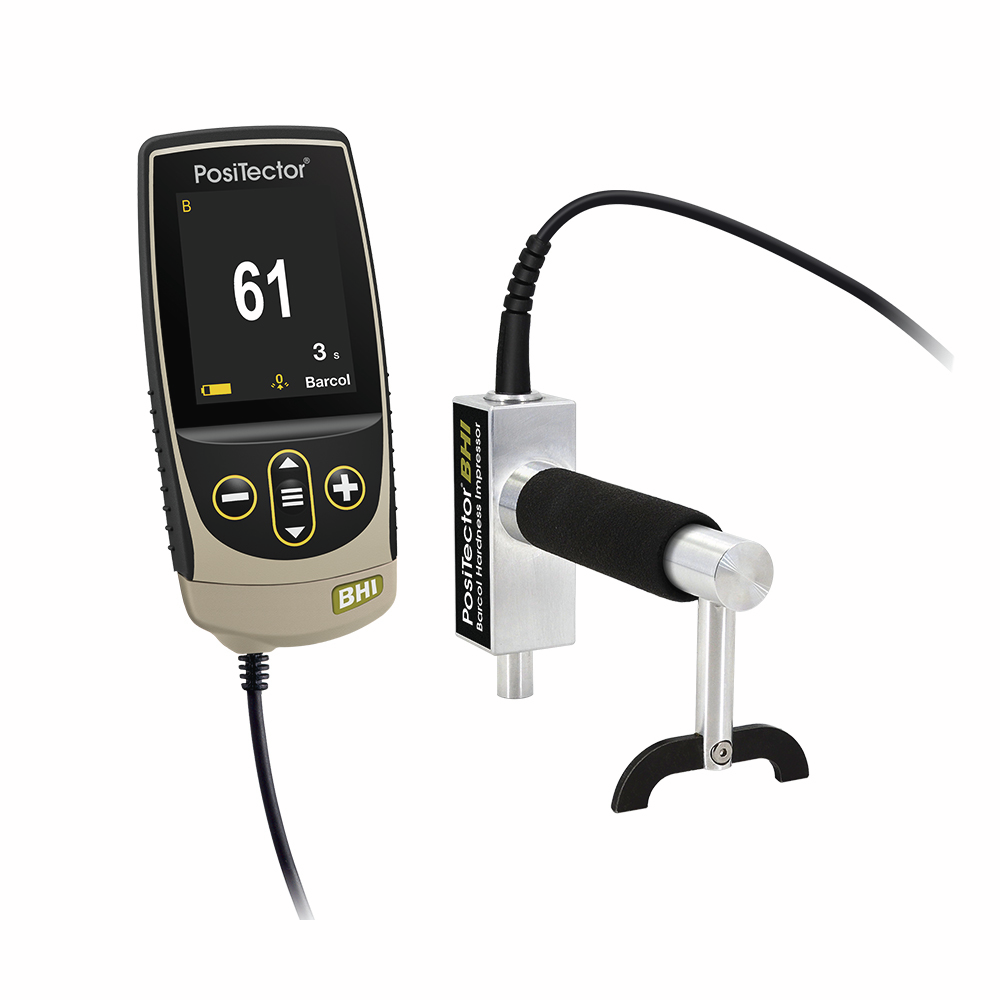

PosiTector BHI Barcol Hardness Impressor
Art. No.: 11757
Positector BHI Barcol Hardness, Std
- PosiTector BHI Barcol Hardness Impressor
- Standard Gauge and Probe
- 1,000 readings
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- The PosiTector BHI Barcol Hardness Impressor measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic.
- Easy-to-read digital display
- Comparable to 934-1 Barcol Hardness Tester
- User-adjustable measurement time with on-screen countdown
- Includes spare, field replaceable indentor with replacement tool
- Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
- Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Hard-shell carrying case included
- Two year warranty on gage body AND probe
- Certificate of Calibration included
- Hi-RES mode increases displayed resolution for precision applications
- Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
- Conforms to national and international standards including ASTM
- PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
- 1 and 2 point calibration options with Cal Reset to restore factory settings
- Selectable display languages
- Auto rotating display with Flip Lock
- Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Screen Capture, save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Instant-on feature quickly powers up the gage if recently powered down
- Up to 30% longer battery life
- USB Port for fast, simple connection to a PC and to supply continuous power
- PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Software Updates via the internet keep your gage current
- Includes PosiSoft suite of software for viewing, analyzing and reporting data
| Technical Data Chart | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||||||
(2) Test disks
Glass plate
Protective rubber holster with belt clip
Wrist strap
(3) AAA batteries
Instructions
Hard shell case
Protective lens shield
Long Form Certificate of Calibration
USB cable
PosiSoft Software
Two year warranty
Glass plate
Protective rubber holster with belt clip
Wrist strap
(3) AAA batteries
Instructions
Hard shell case
Protective lens shield
Long Form Certificate of Calibration
USB cable
PosiSoft Software
Two year warranty
Test Disks Hard With Plate 5/pk
Article No: 11759
Test Disks Soft With Plate 5/pk
Article No: 11760
Replacement Indentors
Article No: 11761
Replacement Glass Zero Plate
Article No: 11762
Positector BHI Barcol Hardness, Adv
Article No: 15023
Positector BHI Barcol Hardness, Probe
Article No: 11758
