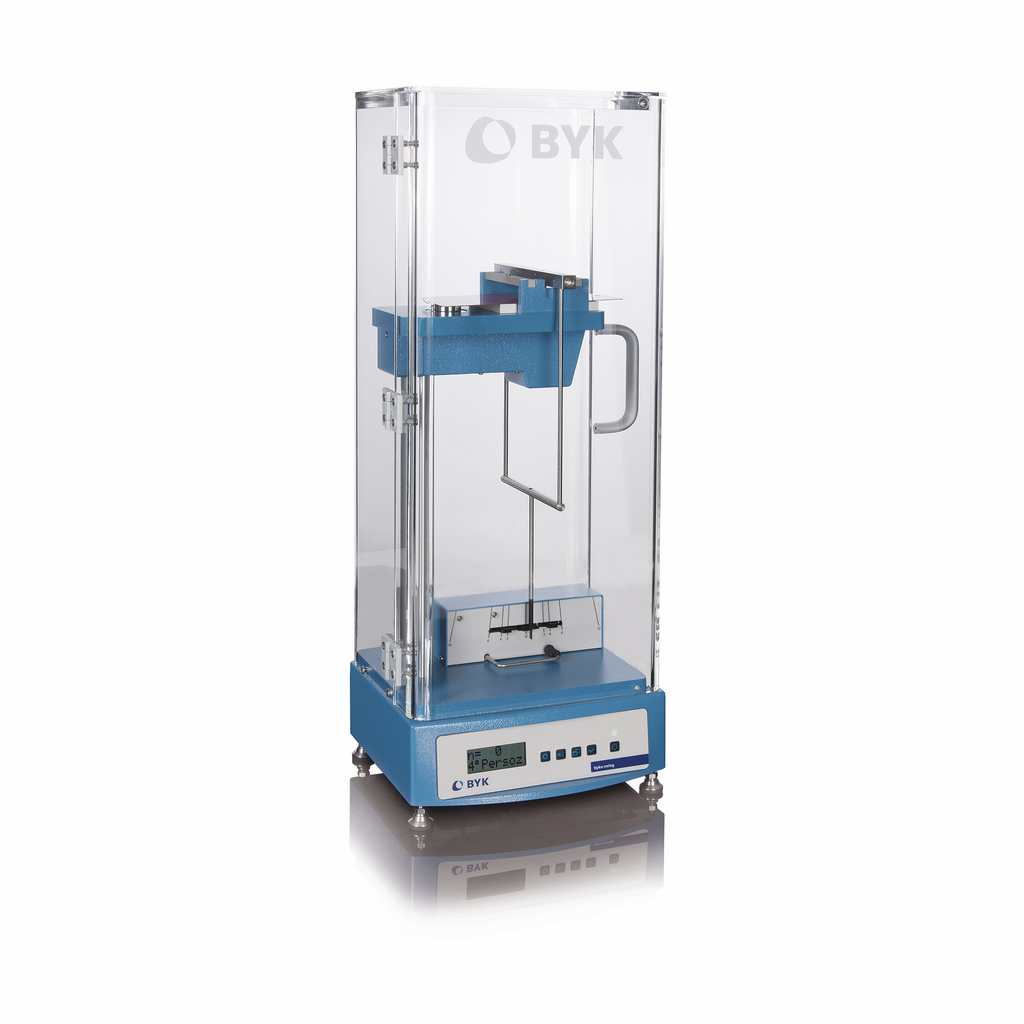

Pendulum Hardness Tester
Article No. 5866
byko-swing Persoz
Damping method for soft coatings - automatic version
- Includes base unit and Persoz pendulum
- Can also be used for Persoz method with optional König pendulum
Features
Fully automated instrument for measuring pendulum hardness in accordance with the König and Persoz methods.
- Automated design ensures reliable and repeatable measurement of coating hardness by reducing operator intervention
- Motorized sample platform lifts the sample into the test position
- Pendulum is positioned and released automatically
- Automatic counter with signal when deflection is below 3° (König) or 4° (Persoz) respectively
- Changeable from König to Persoz and vice versa with corresponding pendulum
- Pre-assembled draft shield with easy access door
- UL/CE/CSA certification
- Compliant with ASTM D4366 and ISO 1522
- Smallest sample size: 65mm x 75mm (2.6 x 3.0 inches)
- Largest sample size: 102mm x 229mm (4.0 x 9.0 inches)
- Maximum sample thickness : 8.5mm (0.33 inches)
- Minimum sample thickness is limited by the rigidity of the sample.
Technical Attributes
-
- Deflection Start/End
- 12° / 4°
-
- Ball Diameter
- 8 mm
-
- Damping Time on Glass
- 430 s ± 10 s, according to ISO
-
- Period of Oscillation
- 1 s
-
- Weight
- 500 g ± 0.1
-
- Power supply
- 100 - 240 V, 50/60 Hz, max. 1 A
-
- Weight
- 18.4 kg
-
- Weight
- 40.6 lb
-
- Dimensions: L x W x H
- 25 x 28 x 77 cm
-
- Dimensions: L x W x H
- 10 x 11 x 30.3 in
Technical Specifications
General
Standards
Delivery Content
Pendulum hardness tester
Protective cover
Pendulum Persoz (5857)
Glass calibration standard
Open-end wrench to adjust instrument feet
Power supply
Calibration certificate
Manual
Protective cover
Pendulum Persoz (5857)
Glass calibration standard
Open-end wrench to adjust instrument feet
Power supply
Calibration certificate
Manual
