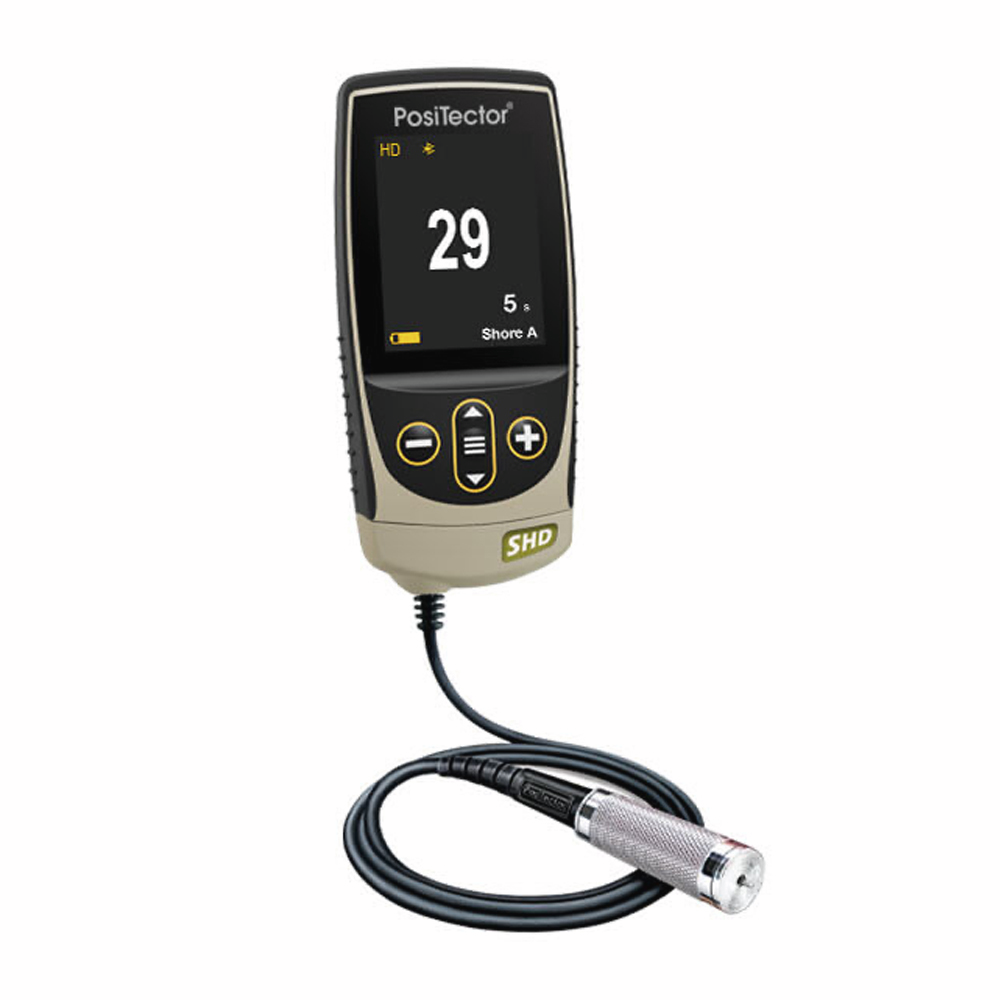

PosiTector SHD Shore Hardness Durometer
Art. No.: 11747
PosiTector Std Durometer with A Probe
- PosiTector SHD Shore Hardness Durometer
- Standard A Probe
- Storage of 1,000 readings per probe
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- The PosiTector SHD Shore Hardness Tester, is a Shore A and D hardness testers.
- It can be used as a handheld instrument or placed in a test stand to reduce operator influence.
- User-adjustable measurement time with on-screen countdown to conform to national and international standards
- Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
- Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Hardened steel indentor
- Two year warranty on gage body AND probe
- Certificate of Calibration showing traceability to NIST included
- Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
- Hi-RES mode increases displayed resolution for precision applications
- Includes test block to verify operation
- Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505
- PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
- Selectable display languages
- Auto rotating display with Flip Lock
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Screen Capture, save 100 screen images for record keeping and review
- Instant-on feature quickly powers up the gage if recently powered down
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
| Technical Data Chart | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| |||||||||||||||||||||
Test Block (for Shore A - 50 Hardness, for Shore D - 46 Hardness)
Protective Rubber Holster With Belt Clip
Wrist Strap
(3) AAA Alkaline Batteries
Instructions
Nylon Carrying Case With Shoulder Strap
Long Form Certificate Of Calibration Traceable To Nist
Protective Lens Shield
USB Cable
Posisoft Software
Two (2) Year Warranty
Protective Rubber Holster With Belt Clip
Wrist Strap
(3) AAA Alkaline Batteries
Instructions
Nylon Carrying Case With Shoulder Strap
Long Form Certificate Of Calibration Traceable To Nist
Protective Lens Shield
USB Cable
Posisoft Software
Two (2) Year Warranty
