Durometer Test Block Hardness Standards

Name: Durometer A Test Block 90
SKU: 000000000000011610
Price: 70 USD

Art. No.: 11610

Durometer A Test Block 90

Select your Model

Hardness Testers

$70.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Durometer Test Block Hardness Standards are used to obtain accurate readings on durometers.
These Test Blocks give the user the ability to develop the proper “feel”, and, while it is not to be used for calibration purposes, it enables the user to perform a quick check for proper durometer operation.
The blocks are calibrated and correspond to the Durometer Type of your choice.
Available For All Durometer Types
Blocks each measuring 1/4" x 2" x 2".
The Kit is furnished with a sturdy magnetic-latching carrying case with the true readings for each block on the inside cover of the case.
A certificate of calibration is also included for users who need documentation of traceability to NIST.
Made in the USA

Technical Data Chart

Data

Size of each Test Block Approx.:	1/4" x 2" x 2"
Thickness of each Test Block:	.250"
Material Used:	Rubber
Size of Fitted Case:	5.5" x 4.687" x 2.562"
Weight:	22 oz.
Item No.	Single Test Blocks - Nominal "A" Values
14351	Blue	30 durometers
14352	Yellow	60 durometers
11608	Tan	70 durometers
11609	Black	80 durometers

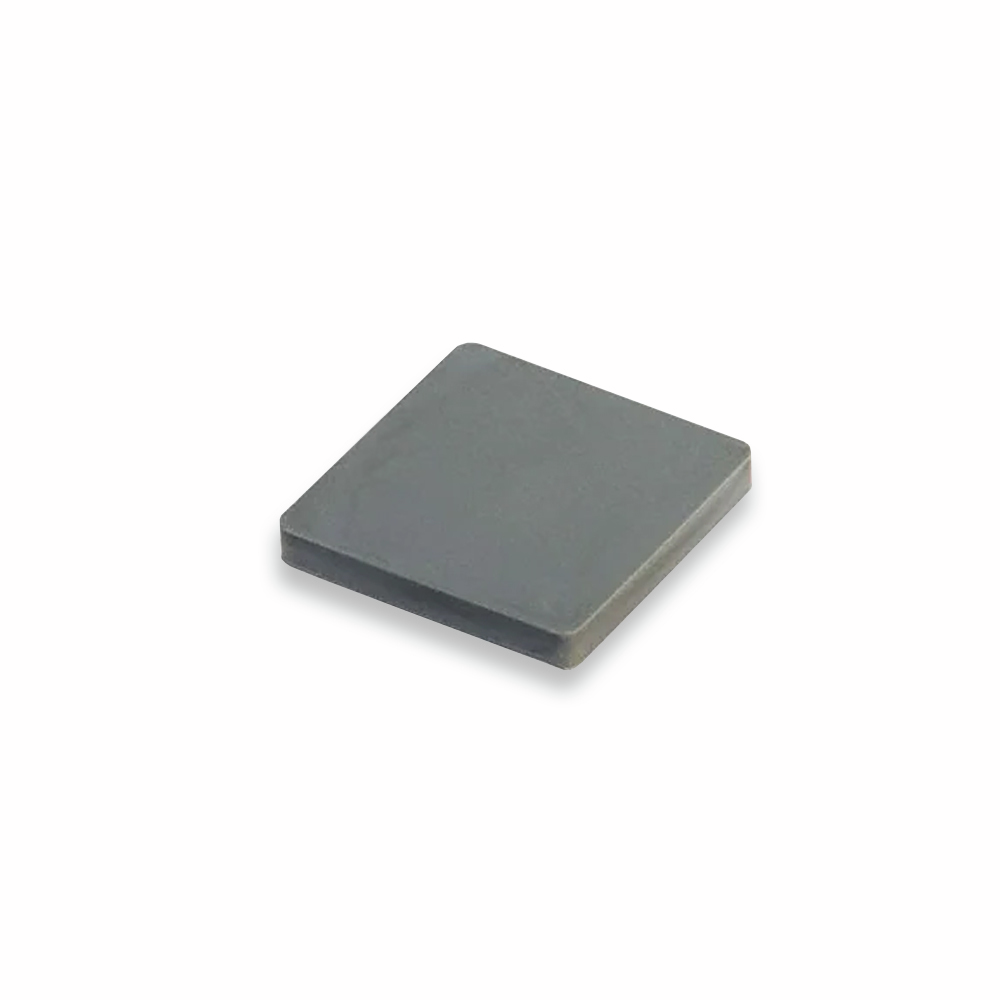

11610	Gray	90 durometers
Item No.	Single Test Blocks - Nominal "D" Values
14353	Gray	40 durometers
11611	Black	80 durometers
