Gardco Gel Timers

Article No. 15306

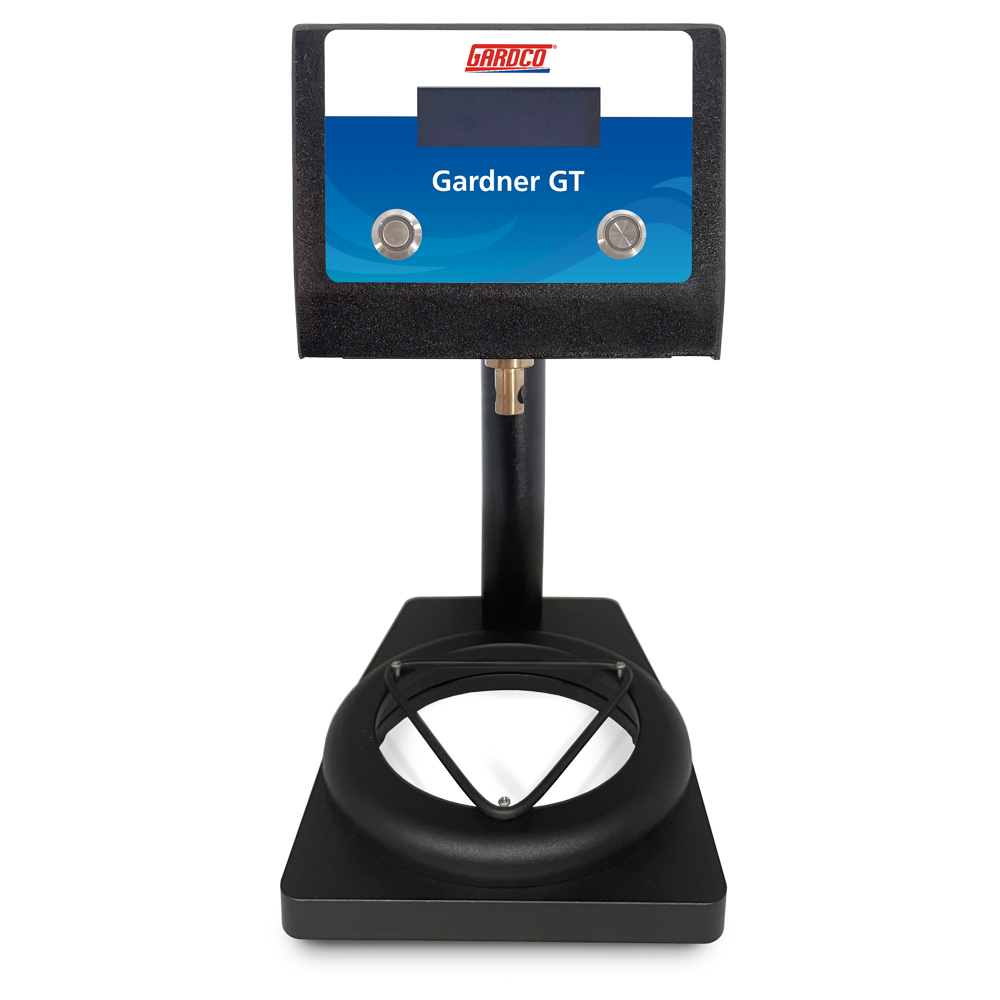

Gardner Gel Timer, Standard

The Standard Gel Timer (GT) is a simple device designed to produce gelation time with accuracy at ambient or shop temperatures.
Includes wire stirrers (10) and paper cups (10)

Select your model

excl. taxes & shipping cost

Features

The Gardco Gel Timers are straightforward devices, constructed to deliver exceptional accuracy when carrying out simple gelation tests at room temperature or in a shop setting.
They have an improved user interface that delivers unparalleled repeatability and accuracy.
No frills, no cleanup
Designed to withstand rigorous use
Pilot light
3-Wire, grounded cord set
Digital readout
No tools required
Universal power supply included
CE/UL/CSA Approved

Technical Attributes

Data

Type:	Standard Gel Timer	Hot Pot Gel Timer
Part Number:	15306	15305
Recording Time:	00:00:00 min - 99:99:99 max
Stir Speed:	20 rpm
Accuracy:	±2%
Electrical Connections:	3-Wire Grounded Cord Set
Usage:	Indoor Use
Temperature Range:	32° - 100°F (0° - 38°C) for operation 0° - 150°F (-18° - 66°C) for storage
Relative Humidity:	Up to 85% non-condensing at 95°F (35°C)
Operation Altitude:	Up to 6561 ft (2000 m)
Dimensions (LxWxH):	5 x 7.48 x 9 in. (127 x 190 x 229 mm)
Weight:	5.45 lbs (2.47 kg)	9.55 lbs (4.33 kg)
Power Supply:	Input 24 V ⎓ ; max. 2.5 A	Input 24 V ⎓ ; max. 9.2 A
External Power Supply:	Input 100-250 V ~; 50-60 Hz; max 2.5 A Output 24 V ⎓ ; max. 2.5 A	Input 100-250 V ~; 50-60 Hz; max 9.2 A Output 24 V ⎓ ; max. 9.2 A
Overvoltage Category:	1
Pollution Degree:	2
