Manual Test Stand

Article No. 11438

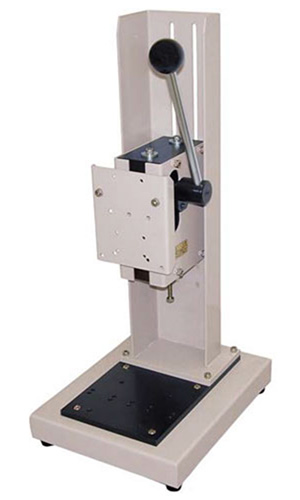

Fgs-100L Manual Lever Test Stand

The FGS-100L is a manual test stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. The hand-lever operated test stands are ideal for rapid testing applications.

$895.00 excl. taxes & shipping cost


  • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments
  • Adjustable clearance setting enables testing on a wide range of samples
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
  • Modular, compact design reduces footprint, weight and cost
  • Sturdy all steel construction allows exceptional durability and extended life of the product
  • Compatibility with many vendors' force gauges facilitates flexibility when replacing older test stands
  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing
  • It has a 200 lb. (100 kg) capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.
  • Stands are designed for precision, balance, and durability. Therefore they are perfectly suited for measuring a limitless range of materials such as, wire, spring, plastic, paper cord, tubing, glass and composites.

Technical Attributes

  • Data
    Torque Sensor
    Capacity110 lbs. (50 Kg)
    Stroke:1.97 in. (50mm)
    Clearance:3.31" - 11.57" (84 - 294mm)
    8 steps,1.18"/step (30mm/step)
    Weight:33 lbs. (15 Kg)
