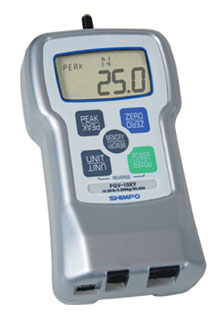

Digital Force Gauges

Art. No.: 11439

Fgv-100Xy 100Lb. Cap Lb/Kg/N Resolution

The Series FGV-XY Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Select your Model

$1,228.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • FGV Models possess on-board statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Units include the free TORIEMON-USB software and USB cable allowing further data analysis on a PC.1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results.
  • The 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C and analog outputs provide the FGV with maximum communication flexibility.
  • High accuracy +/-0.2% F.S., ideal for strict tolerances
  • Measure and record compression and tension tests- permits true “push-pull” testing
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Maximum data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • Rugged, ergonomic die cast aluminum construction allows usage on production floor
  • On board statistics provides immediate results and analysis of test data
  • Variable display response rate aids viewing readings
  • Expanded memory for reviewing data points and transferring to PC/Laptop
  • Built-in Hi-Lo Comparator function provides user with easy "Go-No Go" Testing
  • Quick retrieval of peak measurement with a single push button
  • Flexible user preference with one button selection of up to 4 engineering units
  • Dual power capable with rechargeable battery or AC line voltage
  • Field Calibration through keypad eliminates down time
  • Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
  • CE Mark & RoHS Approval

Technical Data Chart
Data
Capacity:100 lb
50.00 Kg
500.0 N
Resolution:0.1 lb
0.01 Kg
0.1 N
Accuracy:±0.2% F.S.
Display:4-Digit LCD, 0.5" (12 mm) high, Units 0.29" (7 mm). Reversible by the push of a button. Minus sign for tension
Display Update:0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate:1000 Hz
Overload:200% of F.S. (200 lb.: 150% F.S.)
Power:Rechargeable Ni-MH battery or universal AC adapter/charger (100-240VAC, 50-60Hz)
Output:Analog: ±1 V dc (through a 12 bit D/A converter) RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control USB: Allows communication between FGV-XY and Windows® PC Software with Toriemon USB via USB cable (included) Overload Comparator: Open-collector output (Max 30 V dc/5 mA)
Auto Power Shut-Off:Yes (not active if adapter/charge is in use)
Battery Charge:12 hours (when fully charged)
Recharge Time:Approximately 18 hours when fully discharged
Temperature Range:32 - 104°F (0 - 40°C)
Dimensions:5.8 x 3 x 1.5” (147 x 75 x 38 mm)
Product Weight:Approx. 1 lb (450 g); FGV-200XY Approx. 1.1 lb (500 g)
Package Weight:Approx. 2.4 lb ( 1.09 kg) for 0.5 lb and 1 lb ranges; 2.6 lb (1.12 kg) for 2 to 100 lb ranges; 2.75 lb (1.25 kg) for 200 lb range
Certification:CE, RoHS
Warranty:2-Year
Fgv-100Xy 100Lb. Cap Lb/Kg/N Resolution
  • AC adapter/charger
  • Carrying case
  • Hook
  • Chisel
  • Flat head
  • Notched head
  • Hanger
  • Cone head
  • Thread adapter
  • Extension rod
  • USB cable
  • Note: software available free download
