UVICURE® Plus II, UV Power Puck® and Profiler

Article No. 13518

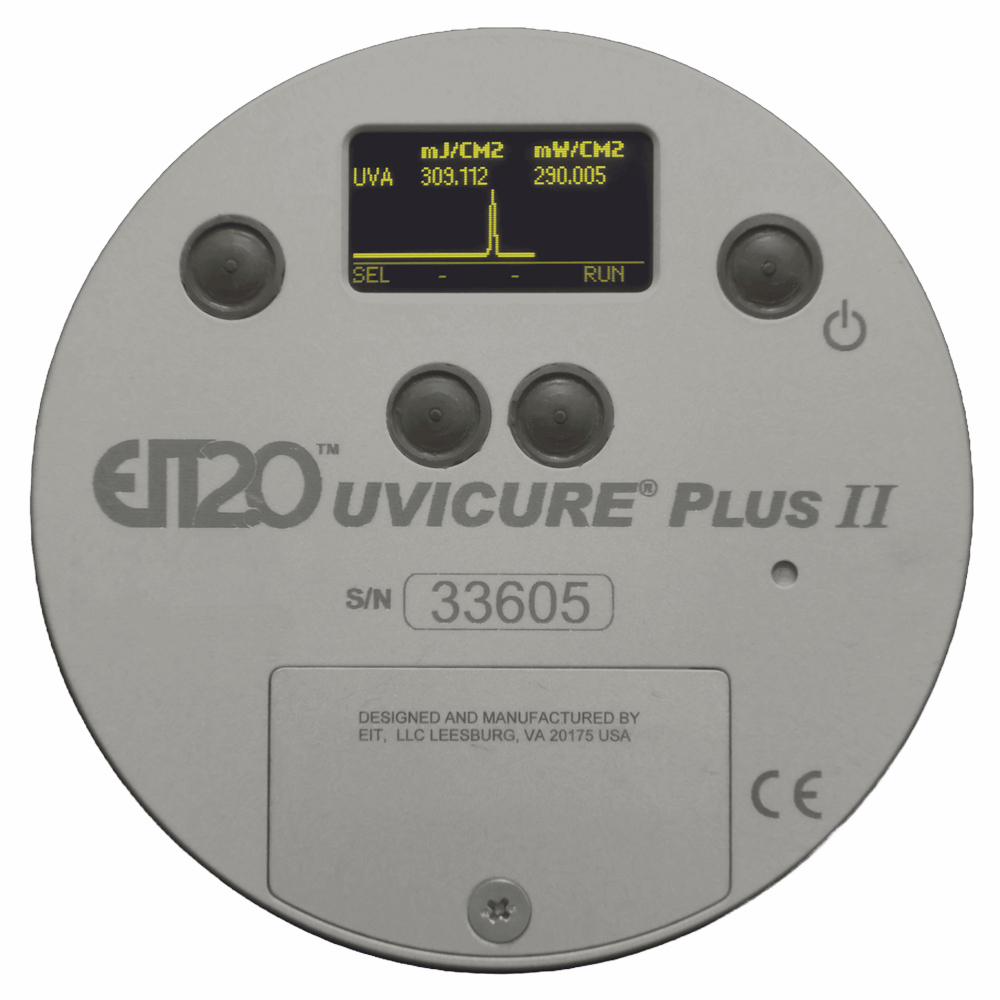

UVICURE Plus II, UVA (320-390nm)

The UVICURE Plus II is a single band radiometer. The Power Puck II is a four band radiometer. These radiometers first set the standard for the industrial UV curing industry now have the ability to be used with display or as a profiling radiometer that transfers the irradiance profile to a computer for analysis.

Select your model

$1,769.00 excl. taxes & shipping cost


  • The UVICURE Plus II or UV Power Puck II instruments are available in three dynamic (operating) ranges. (Please specify if mid or low range is required). The standard range (10 Watt) works well for high power curing applications. The mid-range (1 Watt) works well with low power arc lamps and in applications with lamps that are non focused or away from the cure surface. The low range (100 m/W) works well in exposure systems and applications with low power lamps.
  • Puck and UVICURE Plus instruments are available in UVA (320-390nm), UVB (280-320nm), UVC (250-260nm), UVV (395- 445nm)
  • The Profiler contains the same functions and features as the standard Puck II instruments. The new Profiler function allows the transfer of the numerical (irradiance, energy density) values and the irradiance profile to your computer via a USB port for analysis with the new PowerView Software®.
  • Easy to Use: Single Button for On/Off and Run Mode makes it easy to collect and view data.
  • Data Mode: Uv data (joules/cm2, watts/cm2) displayed on one screen for up to 4 bands.
  • Graph Mode: A graph illustrating the collected UV irradiance and energy is displayed for each of the UV bands. Graph shows the irradiance profile as a function of time (mW/cm2 on y-axis, time on x-axis).
  • Reference Mode: Allows the user to store a run into the instrument memory to allow for easy comparison to current UV conditions.
  • Setup Mode: Soft buttons are used for function selections, and are indicated on the bottom of the display for easy operator selection and use. User can decide what screen mode & units to display and also select the sample rate.
  • Smooth On: Compatible with previous sampling rate on legacy Power Puck units sampling at 25 samples per second.
  • Smooth Off: Compatible with UV PowerMAP sampling rate at over 2000 samples per second.
  • Top to Bottom: Data Mode, Graph Mode, Reference Mode, Setup Mode
  • Display Mode: Easy to use on the production line with irradiance (W/cm2), energy density (J/cm2) and irradiance profile information easily available on the display.
  • The Puck Profiler Instrument also features:
    • Fixed sample rate of 128 samples/second
    • Memory supports data collection of over 100 minutes
    • Information displayed on the screen for production team, transfers to computer for analysis & archiving
    • Upgrade to existing USB port instruments with return to EIT
    • PowerView Software® II is new program for use with Profiler instruments. It can analyze up to four UV bands on two different files or a single UV band on four individual files. It can display instrument data by UV band (UVA, UVB, etc.) or units/parameter (irradiance, energy density). It has enhanced note and information options to add information to your collected files. You can easily share & paste information into reports/ programs


Technical Attributes

  • Data
    Display:Easy to Read, Yellow Text on Black Background
    Suggested Operating Ranges:Standard High Range: UVA, UVB, UVV - 100mW/cm2 to 10W/cm2 / UVC-10mW/cm2 to 1W/cm2
    Mid-Range: UVA, UVB, UVV - 10mW/cm2 to 1W/cm2 / UVC: 1mW/cm2 to 100mW/cm2
    Low Power: UVA, UVB, UVV - 1mW/cm2 to 100mW/cm2 / UVC - 1mW/cm2 to 100mW/cm2

    Units will “turn on” and display data at irradiance values much lower than the suggested Operating Ranges. The suggested Operating Ranges are where the instrument performs best.
    Accuracy:±10%; ±5% typical
    Spectral Ranges (UV Power Puck II):4-channel continuous monitoring. Standard version: 320-390nm (UVA), 280-320nm (UVB), 250-260nm (UVC), 395-445nm (UVV)
    Spectral Ranges (UVICURE Plus II):1-channel continuous monitoring. Standard version: 320-390nm (UVA), 380-410nm (UVA2 for LED monitoring and additive bulb monitoring), 280-320nm (UVB), 250-260nm (UVC),
    395-445nm (UVV)
    Spatial Response:Approximately cosine
    Operating Temperature:0-75°C Internal temperature; tolerates high external temperatures for short periods (audible
    alarm indicates when temperature has exceeded tolerance)
    Smooth Modes:Smooth ON: Effective Sample rate of 25 samples/second
    Smooth OFF: Effective Sample rate of 2048 samples/second
    Smooth PROFILER: Effective Sample rate of 128 samples/second
    Sample Rate for Profiling:The Profiler instruments use a fixed sample rate of 128 samples/second for profiling. For best matching between instrument display and PowerView Software®II values, use Smooth PROFILER mode
    Memory Capacity for Profiling:The memory capacity of the Power Puck®II and UVICURE® Plus II Profilers in Profiler Mode is sufficient to collect data for >100 minutes
    Power View Software® II:National Instruments LabVIEW based programming designed for Windows XP, Windows NT, Windows Vista and Windows 7. Collected data stored in LabVIEW based *.tdms files
    Time-Out Period:2 minutes DISPLAY mode (no key activity). A no time-out mode can be ordered
    Battery:Two user-replaceable AAA Alkaline Cells
    Battery Life:Approximately 20 hours with display on
    Dimensions:4.60 x 0.50 inches (117 x 12.7 mm) D x H
    Weight:10.1 ounces (289 grams)
    Instrument Materials:Aluminum, stainless steel
    Carrying Case
    Material:Cut polyurethane interior. Scuff-resistant nylon exterior cover
    Weight:9 oz. (260 grams)
    Dimensions:10.75"W x 3.5"H x 7.75"D (274W x 89H x 197D mm)

Delivery Content

Carrying Case and NIST traceable calibration certificate


EIT Instrument Wipes 50/pk
