Drying Time Recorder

Article No. 2710

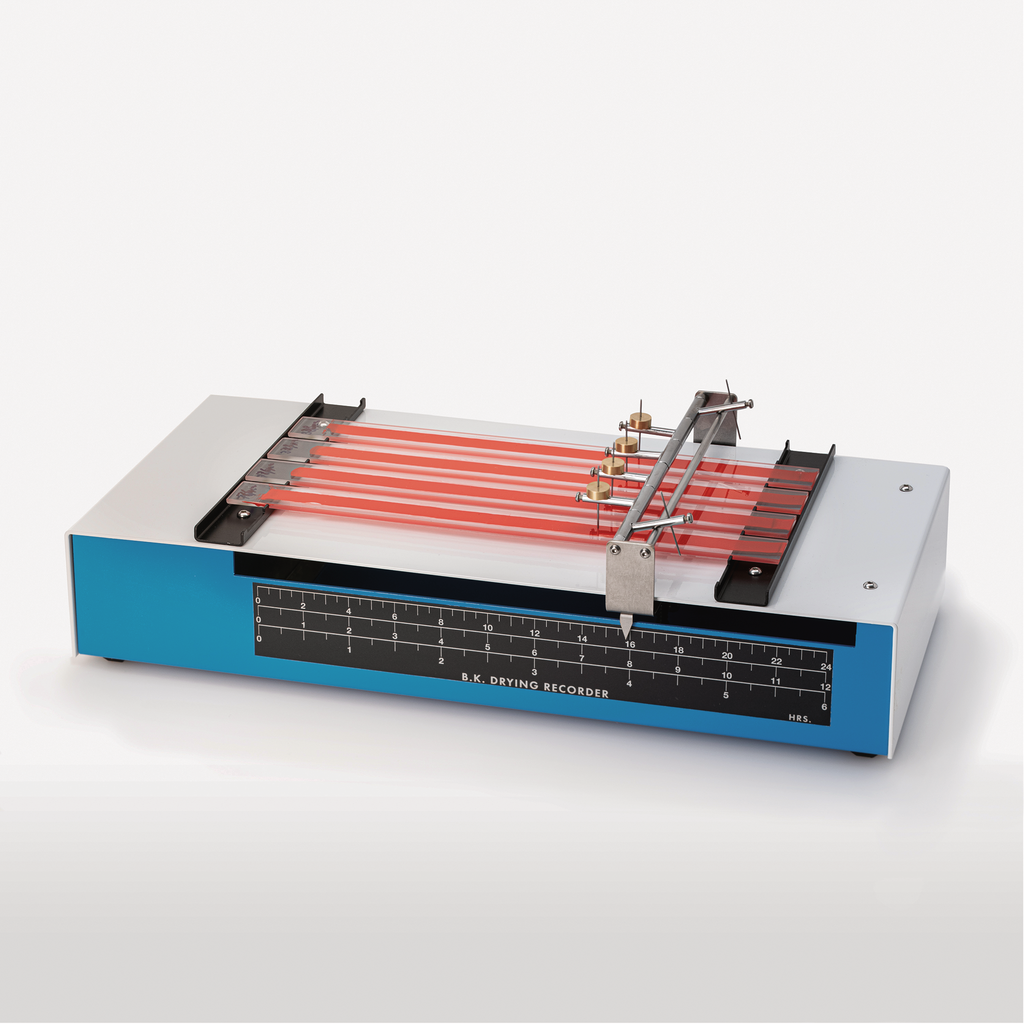

Drying Time Recorder 230V
Paint Curing Analysis for 6-12-24 hrs

  • Version for 230 Volts power sockets

More options

Power supply
$2,675.00 excl. taxes & shipping cost

Features

BYK-Gardner offers the versatile Drying Time Recorder to help quantify the various stages of the film drying and curing process.

  • Up to six samples can be tested at one time to save time
  • Standard speed is 6, 12, 24 hours, but alternative speeds are available upon request
  • Automatic switch-off after the test completion
  • Glass panels are supplied as the substrate
  • Complies with ASTM method D5895
  • Optional film applicator is available

Technical Attributes

    General

  • Power supply
    230 V, 50 Hz
  • Dimensions: L x W x H
    49 x 25 x 11 cm
  • Dimensions: L x W x H
    19.3 x 9.8 x 4.3 in

Standards

DIN EN

14022

ISO

9117-4

ASTM

D5895

Procedure

  • Coat the glass strip using the film applicator and holder (order separately below)
  • The drying of the paint starts here. If you prepare multiple panels at different times note the time when the draw down was made and add it to the time the sample is in the recorder
  • Place needles on the sample strip and select the speed by adjusting the speed switch
  • Turn the recorder on – the unit will automatically switch off at the end of the test
  • Evaluate the results

Delivery Content

Drying Time Recorder
6 Glass panels
6 Needles 1 mm
6 Needles 2 mm (2737)
