Opacity Paint Charts

Art. No.: 12730

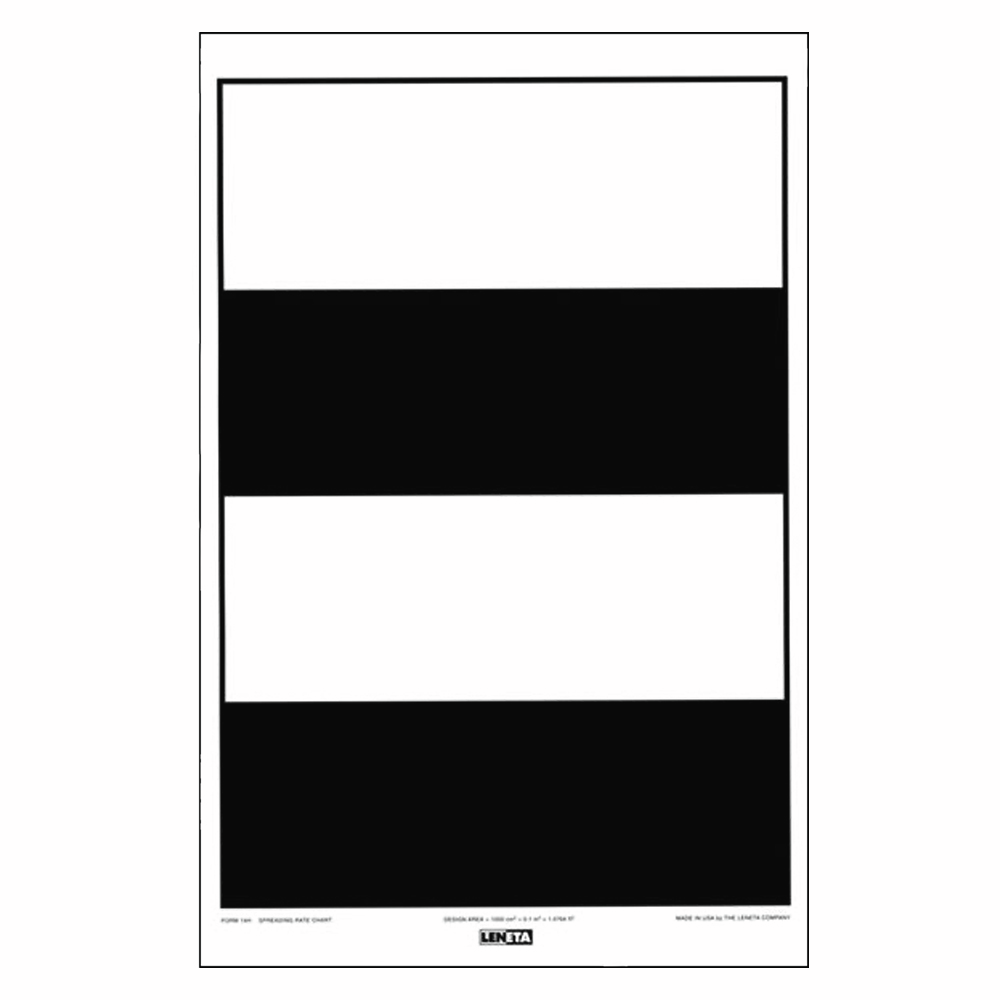

Leneta 14H Opacity Chart

Form 14H black and white sealed opacity chart
Divided into four equal sections: the top most area is white, then black, then white and then black
Overall dimensions are 11-1/4 x 17-1/4 in (286 x 438 mm)
International Standards ASTM D344

Select your Model

Drawdown Charts

$123.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Opacity Paint Charts, also known as “hiding power charts” or “contrast ratio charts”, have simple combinations of black and white areas
Sealed with a clear, impervious topcoat which prevents penetration of applied coatings into the paper
Used for hiding power
Large enough for wide aperture reflectance measurements and for visual opacity and color observations

Technical Data Chart

Data

Form:	2A	2C	14H	15H	5C	3B
Color:	Black Top / White Bottom	Black Top / White Bottom	White Top / Black / White / Black Bottom	White Left & Right Sides / Black Middle	White Top / Black Bottom	White Top & Bottom / Black Middle
Size:	5-1/2 x 10 in (140 x 254 mm)	7-5/8 x 10-1/4 in (194 x 260 mm)	11-1/4 x 17-1/4 in (286 x 438 mm)	11-1/4 x 17-1/4 in (286 x 438 mm)	7-5/8 x 10-1/4 in (194 x 260 mm)	7-5/8 x 11-3/8 in (194 x 289 mm)
Design Area:	-	-	1.076 ft², 0.1 m², 1000 cm²	-	-	-
Box Quantity:	250	250	125	125	250	250
Boxes Per Case:	-	4	4	4	4	4
Box Weight:	6 lb	9 lb	11 lb	11 lb	9 lb	10 lb

Article No: 12740

Price: $83.00

Article No: 12741

Price: $102.00

Article No: 12744

Price: $106.00

Article No: 12748

Price: $103.00
