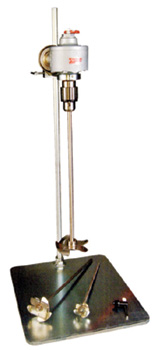

LS Series Air Driven Stirrers

Art. No.: 12450

LS-3000X Lab Large Stirrer Unit

LS-3000X Large Stirrers
Small beaker - 8 gallons
1-3/4 HP
Adjustable Chuck

Select your Model

Dispersion and Lab Mixers

$1,450.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Tabletop mixers air and gear driven stirring options
Mix, stir and blend in containers that vary in size
Mix a variety of viscosity ranges from low, medium to high
All-angle powerhead adjustment
Variable speed control
Common components for economical maintenance
Stainless Steel and zinc plated parts for long life
Adjustable gear chuck and key (12449 & 12450 only)
Gear unit - 15:1 motor reduction
The Mixed Flow Impellers that come with these units are light weight, self-centering, easy to clean, extremely strong, and will mix thoroughly and fast without drawing air into the solution
The included Powerheads slide easily up and down on the vertical shaft, locking at any angle with a slight twist of the oversize clamp handle.
Impellers and shafts can be changed easily and quickly

Technical Data Chart

Data

Part No.	12441	12449	12450
Model No.:	LS-1000X	LS-2000X	LS-3000X
Mixer Size:	Small	Midsize	Large
Capacity:	Up to 1 gallon	Up to 5 gallons	Up to 8 gallons
Viscosity Intensity:	Low	Medium	High
Horsepower:	1/2	3/4	1-3/4
RPM:	500-9000	40-3000	40-3000
Powerhead:	LS-101B	12443 (LS-102A)	12446 (LS-103A)
Weight (without filter):	11 lbs. 6 oz.	39 lbs	43 lbs. 13 oz.

1.7 HP Powerhead (300-3000 RPM, 1/4 NPT Port)
"Keyed Chuck (1/2"" Cap.)"
L-4 Clamp Block
"Lab Stand (14""W x 16"" D)"
"3 Shafts (12"" x 3/8"", 18"" x 1/2"", 18""x 1/2"")"
"1 MixedFLOW Reg Pitch Impeller 3""D x 3/8"" Bore"
"1 MixedFLOW Reg Pitch Impeller 4""D x 1/2"" Bore"
"1 MixedFLOW Reg Pitch Impeller 5""D x 1/2"" Bore"
"5' Hose (3/8""D, 1/4 NPT)"

Manuals

LS-3000X-Lab-Large-Stirrer-Unit-Manual.pdfLS-3000X-Lab-Large-Stirrer-Unit-Manual.pdf

Filter, 3/8”

Article No: 12296

Price: $234.00

5’ Air Hose, 3/8" dia. with 1/4 MNPT

Article No: 12298

Price: $46.00

Heavy Duty Support Stand With 34" Rod

Article No: 12302

Price: $260.00

Chain Can Holder 1 Gallon W/Clamp

Article No: 12310

Price: $208.00

Muffler 1/4" Npt

Article No: 12436

Price: $60.00

Clamp Block, 5/8 x 3/4" Bore

Article No: 12438

Price: $76.00

Clamp Block, 3/4 x 3/4" Bore

Article No: 12439

Price: $84.00

LS102A Powerhead W/1/2" Universal Chuck

Article No: 12443

Price: $690.00

LS103A Powerhead W/1/2" Universal Chuck

Article No: 12446

Price: $858.00

LS104A Powerhead W/1/2" Universal Chuck

Article No: 12448

Price: $1,235.00

Impeller 2 x 5/16" Bore Reg Pitch

Article No: 12458

Price: $71.00

Impeller 1-7/8 x 3/8" Bore Hi Pitch

Article No: 12459

Price: $82.00

Impeller 2 x 3/8" Bore Reg

Article No: 12460

Price: $81.00

Impeller 3 x 3/8" Bore Hi Pitch

Article No: 12461

Price: $86.00

Impeller 3 x 3/8" Reg Pitch

Article No: 12462

Price: $86.00

Impeller 4 x 1/2" Bore Hi Pitch

Article No: 12463

Price: $98.00

Impeller 4 x 1/2" Bore Reg Pitch

Article No: 12464

Price: $98.00

Impeller 5 x 1/2" Bore Hi Pitch

Article No: 12466

Price: $105.00

Impeller 6 x 1/2" Bore Hi Pitch

Article No: 12467

Price: $123.00

Impeller 6 x 5/8" Bore Hi Pitch

Article No: 12468

Price: $128.00

Impeller 6 x 5/8" Reg Pitch

Article No: 12469

Price: $128.00

Impeller 8 x 5/8" Bore Hi Pitch

Article No: 12470

Price: $252.00

Impeller 5 x 1/2" Reg Pitch

Article No: 14514

Price: $70.00

Impeller 6 x 1/2" Reg Pitch

Article No: 14515

Price: $104.00

Impeller 2 x 5/16" Bore Hi Pitch

Article No: 14740

Price: $45.00

4" Shaft Guard

Article No: 15498

Price: $159.95

6" Shaft Guard

Article No: 15499
