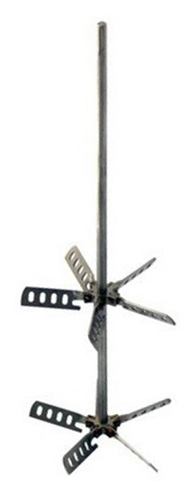

The Folding Mixers is ideal for rapid and thorough mixing of paint, epoxy, mortar, inks and plaster.
Couplers - 304 stainless steel straight coupler is ideal for attaching mixing shafts to motor shafts or gearboxes with set screws.
Container Holders for Drill Press holds pints up to 5-gallon containers with a chain & spring wrapped and hooked. This model does not have a drill press bracket but rather a 9/16" mounting rod that can be used with a support clamp to mount to any stirrer stand.
Stainless Steel High Speed Disperser - DS series disperser shafts adapt dispersion blades with 1/2" center hole to any 1/2" capacity chuck. The polished 3/4" 316 stainless steel shaft is 12" long and is threaded for the included 1/2" bolt at the bottom end.
Small Diameter Shafts - Need to run a dispersion blade with your portable drill motor or lab stirrer? Our TS series shafts are the answer and can be used with dispersion blades up to 6" in diameter. An SA300 1/2" to 1/4" bore adapter (sold separately) is required for blades with 1/2" bore.
Chain Type Clamp Container Holder - Holds beakers, bottles & cans between 3" and 6-1/2" diameter. The 19" long chain locks the container securely in place. The 1/2" x 5-1/2" mounting rod attaches to any stirrer stand with a support clamp. Support clamps and stirrer stands sold separately.
Economy Support Clamp Holder - Connects stirrer mounting rods or container holder mounting rods to stirrer stands and connects stirrer "C" clamps to stirrer mounting rods up to an 8 lb. limit. This support clamp is constructed of aluminum alloy and tightens with thumb screws. Both opening accepts rods up to 3/4".
Block Support Clamp - Connects stirrer mounting rods or container holder mounting rods to stirrer stands and stirrer "C" clamps to stirrer mounting rods. This heavy duty support clamp is constructed of stainless steel and tightens with t-handle screws.
Filter, Regulator and Lubricator - (FRL) is required for proper long-term operation of this equipment. Lubrication is necessary for all internal moving parts and for rust prevention. The model PB362 filters impurities down to 40 microns and regulates airflow to your motor for maximum performance. This unit has 1/4" NPT inlet/outlet connections and a maximum operating pressure of 150 psi.
Stainless Steel Mixing Steep Pitch Propellers - Steep pitch propellers are your solution for increased agitation from a given propeller size. This propeller has a more aggressive blade angle than standard square pitch propellers. The left hand design produces downward fluid motion with clockwise rotation as viewed from above. Our industrial grade propellers are investment cast, roto tumbled and finish machined to close tolerances. The set screws securely fastens the propeller to your mixer shaft yet allows for adjustment in position.
Stainless Steel Mixing Square Pitch Prop - Roto Dull Propellers - Provides excellent corrosion resistance and is ideal for a wide range of applications. The left hand design produces downward fluid motion with clockwise rotation as viewed from above. Our industrial grade propellers are investment cast, roto tumbled and finish machined to close tolerances. Dual set screws positioned ninety degrees apart securely fasten the propeller to your mixer shaft yet allow for adjustment in position. If your requirements are for a sanitary mixing process our propellers can be ordered polished. We also carry hastelloy propellers when corrosion resistance beyond that provided by 316L is required.
12418 - 6" Diameter Blade, 1/2" x 24" Shaft
12419 - (2) 8" Diameter Blade, 1/2" x 24" Shaft
