Ceramic Grinding Mill Jars

Article No. 12055

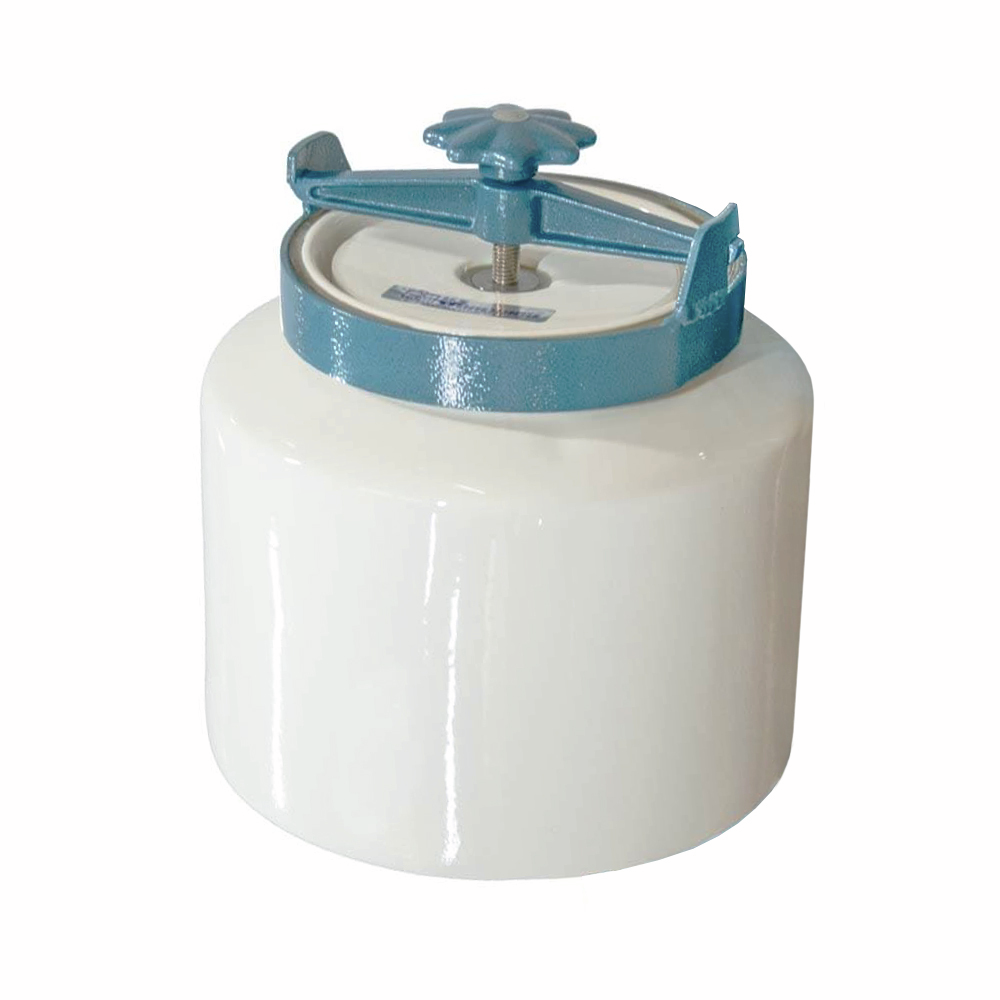

774 Roalox Alumina Mill Jar, 6.6 Gal

  • 774 Roalox Alumina-Fortified Grinding Jars
  • 6.6 Gallon

Select your model

$3,278.00 excl. taxes & shipping cost

Features

  • These ceramic jar bodies have been formulated to provide about 4 times the wear rate of our competitors porcelain jars
  • Lower silica content cuts silica contamination by more than half
  • High-strength, impact-resistant composition minimizes chipping and breakage
  • Made of wear-resistant chemical porcelain fortified with alumina
  • Positive lid locking bar and hand wheel for quick, easy opening and closing
  • Precision ground cover and gasket seat assure leakproof fit
  • Wide mouths for fast emptying, cleaning, loading
  • Gaskets are oil, solvent and chemical-resistant Neoprene rubber
  • Inside surfaces are unglazed

Technical Attributes

  • Data
    Jar SizeJar Volume*Diam.Jar HeightOverall Ht.Mouth OpeningApprox. Net Wt. (lbs)
    0000.1 gal
    (0.3 liters)
    3-3/8"4-3/8"5-1/2"1-1/4"1
    000.3 gal
    (1.0 liters)
    5-1/2"5-1/2"6-3/4"2-3/4"5
    00.5 gal
    (1.8 liters)
    5-7/8"7-1/4"8-3/4"2-3/4"7
    11.5 gal
    (5.6 liters)
    8-7/8"8-1/2"11-1/2"5-1/4"21
    22.2 gal
    (8.3 liters)
    10-3/8"9-1/2"12"5-1/4"23
    33.3 gal
    (12.4 liters)
    12-3/8"10"13"8"35
    66.6 gal
     (25.0 liters)
    14-5/8"13"15"8"55
    *Volumes are ±10

Accessories

12066
SS Discharge Cover Size 00 & Size 0
$316.00
12067
Discharge Cover, S/S Sizes 3, 4 and 6
$546.00
12071
Neoprene Gasket 3-1/8"Od Size 00
$11.00
12070
Neoprene Gasket 3-1/8"Od Size 0
$11.00
12076
Viton Rubber Gasket Size 4
$339.00
12075
Viton Rubber Gasket Size 2 & 4
$219.00
12063
Mill Jar Repl Cover Sizes 0 And 00
$309.00
14827
773 SS Discharge Cover - 3
$398.00
12065
SS Discharge Cover Size 1
$359.00
