Ceramic Grinding Mill Jars

Name: 773 Hi Alumina Grinding Jar, 0.3 Gal
Price: 1198.0 USD
Availability: InStock

Article No. 12048

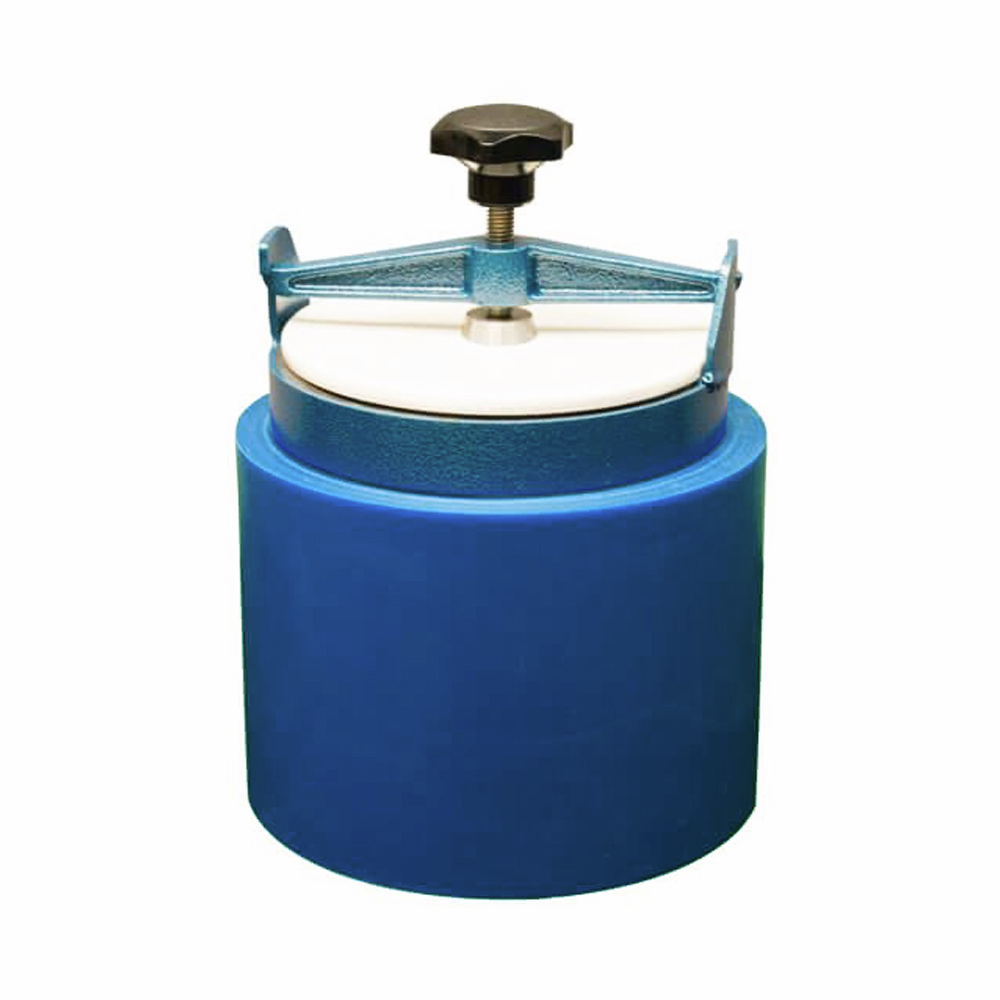

773 Hi Alumina Grinding Jar, 0.3 Gal

These ceramic jar bodies have been formulated to provide about 4 times the wear rate of our competitors porcelain jars. Lower silica content cuts silica contamination by more than half. High-strength, impact-resistant composition minimizes chipping and breakage.

Select your model

excl. taxes & shipping cost

Features

Made of wear-resistant chemical porcelain fortified with alumina
Positive lid locking bar and hand wheel for quick, easy opening and closing
Precision ground cover and gasket seat assure leakproof fit
Wide mouths for fast emptying, cleaning, loading
Gaskets are oil, solvent and chemical-resistant Neoprene rubber
Inside surfaces are unglazed
Two Models available:
- 774 Roalox Alumina-Fortified Grinding Jars
- 773 High Alumina Grinding Jars
  - Ultra-high fired ceramic body composed primarily of high-grade aluminum oxide
  - Extremely high abrasion resistance, long service life, negligible contamination factor
  - Recommended where silica contamination must be held to an absolute minimum
  - Polyurethane-coated body minimized breakage

Technical Attributes

Data

Jar Size	Jar Volume*		Approx Outside Dims (inches)				Approx. Net Wt. (lbs)
Jar Size	Gallons	Liters	Diam.	Jar Height	Overall Ht.	Mouth Opening	Approx. Net Wt. (lbs)
774 High Roalox Alumina Grinding Jars
000	0.1	0.3	3-3/8	4-3/8	5-1/2	1-1/4	1
00	0.3	1.0	5-1/2	5-1/2	6-3/4	2-3/4	5
0	0.5	1.8	5-7/8	7-1/4	8-3/4	2-3/4	7
1	1.5	5.6	8-7/8	8-1/2	11-1/2	5-1/4	21
2	2.2	8.3	10-3/8	9-1/2	12	5-1/4	23
3	3.3	12.4	12-3/8	10	13	8	35
6	6.6	25.0	14-5/8	13	15	8	55
773 High Alumina Grinding Jars
00	0.3	1.0	6-3/8	5-3/8	7	3-11/16	5.5
1	1.5	5.6	9-1/2	8-1/2	12-1/4	7-1/8	23.0
*Volumes are ±10
