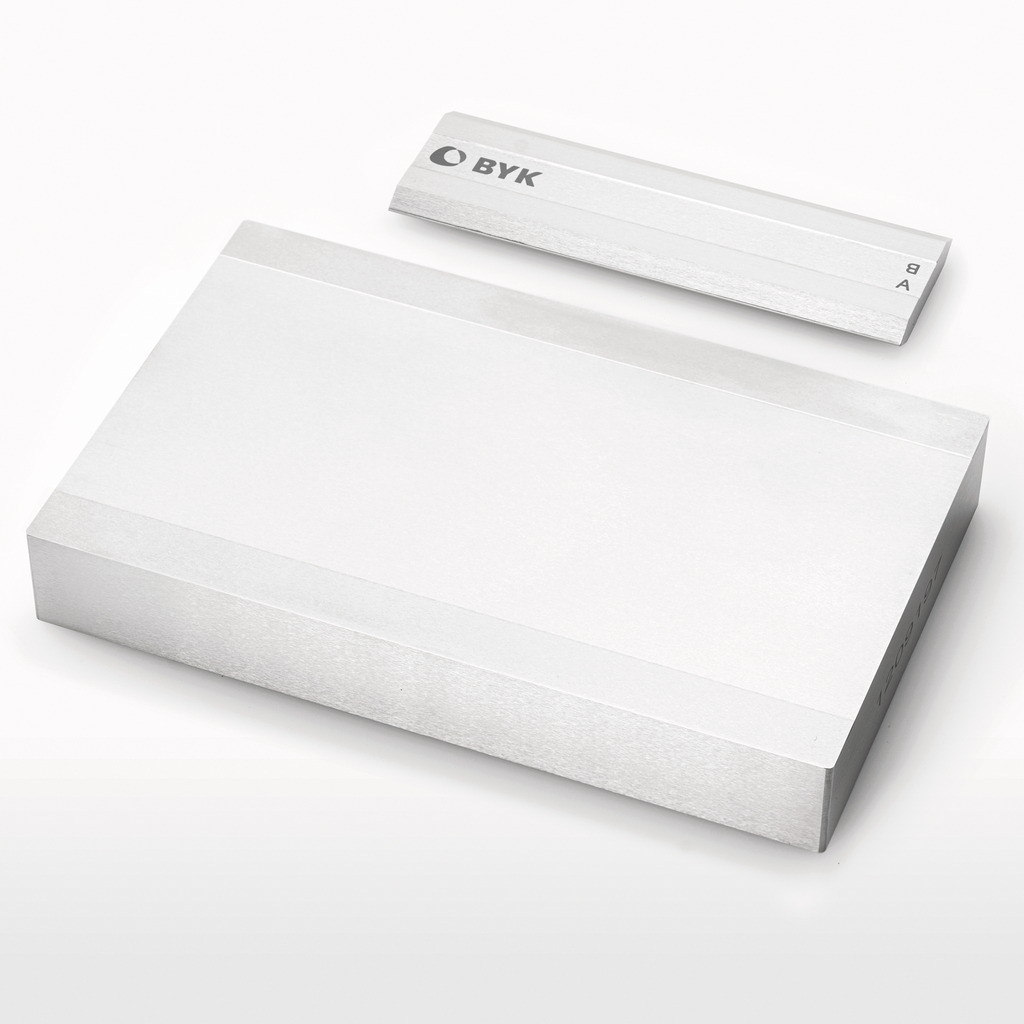

Wedge Printing Plate

Art. No.: 1521

Wedge Print Plate, Warren-3
Wedge Printing Plate - groove depth 0.4 mils

  • Path Size: 76.2 x 165.1 mm
  • No. of Paths: 1
  • Scales: Mils
  • Range: 0.4

Select your Model

$714.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Wedge Printing Plate offers a convenient quality check for ink prior to use on the press. The ink can be evaluated for color, gloss, holdout, varnishability, drying time, rub and fade resistance. The printing gage consists of a precisely made channel of a fixed depth to control the ink film thickness. The channel has a large surface area to evaluate ink properties. The ink is precisely hand-drawn using a scraper. The plate is easy to clean for quick turnaround.

  • Wedge printing plate made of high quality stainless steel for extended use
  • The printing gage consists of a precisely made channel of a fixed depth to control the ink film thickness.
  • The channel has a large surface area to evaluate ink properties.
  • The ink is precisely hand-drawn using a scraper.
  • The plate is easy to clean for quick turnaround.

Technical Specifications
Path Size7.6 x 16.5 cm
Scalesmil
No. of Paths1
Range 0.4 mil
General
Weight3.4 kg
Weight7.4 lb
Dimensions: L x W x H16.5 x 10.2 x 2 cm
Grind Block
Scraper (1522)
Storage case
