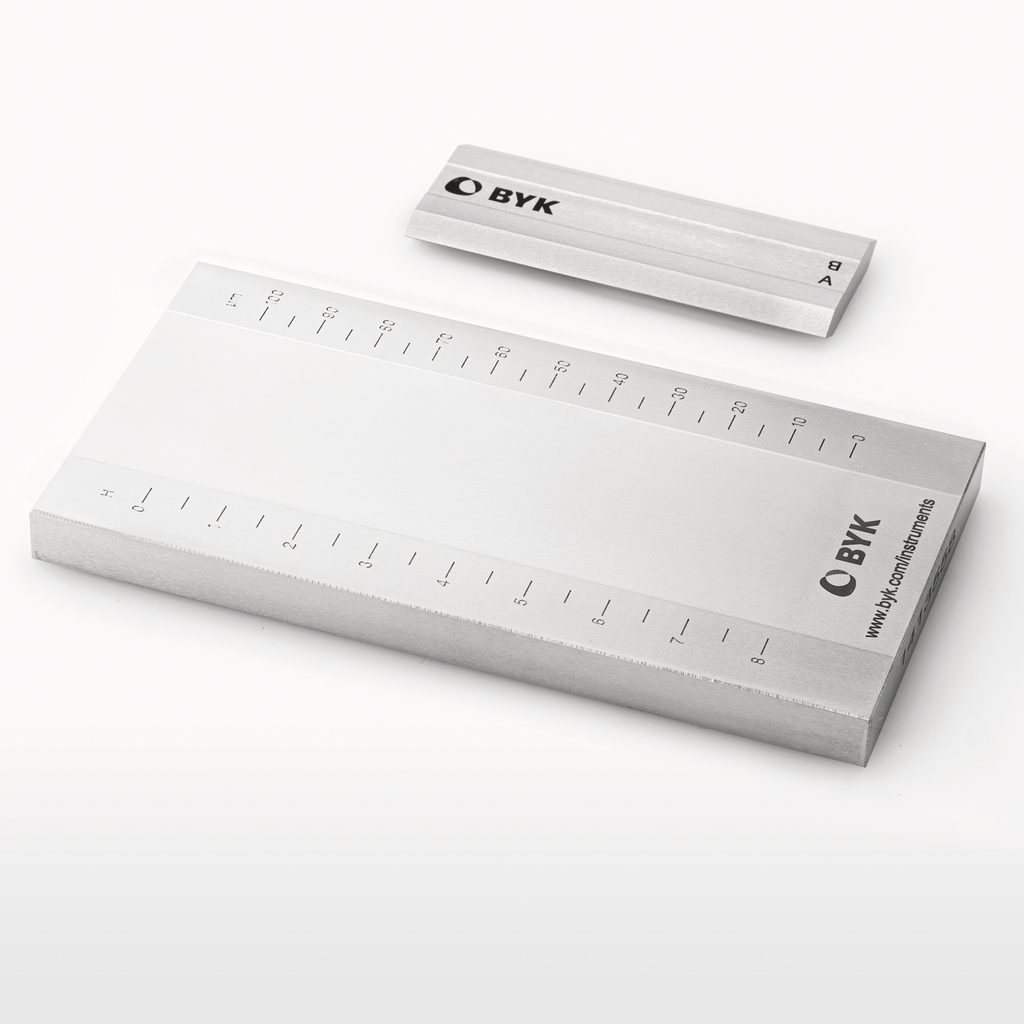

Hegman micron scale from BYK-Gardner

Grind Gages - µm / Hegman, one path

Art. No.: 2506

Grind Gage No. 54
Grind gage - groove depth range 0-100 µm

  • Path Size: 2 x 5 in
  • No. of Paths: 1
  • Scales: Hegman/Microns
  • Range: 8 - 0/ 0-100

Select your Model

$584.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Fineness of Grind Gage is a flat steel block in the surface of which are two flat-bottomed grooves varying uniformly in depth from a maximum at one end of the block to zero near the other end. Groove depth is graduated on the block according to one or more scales used for measuring particle size.

The Hegman scale or National Standard scale may be abbreviated "NS" on the gage. The scale ranges from 0 to 8 with numbers increasing as the particle size decreases.

  • 0 Hegman = 4 mil/100 micron particle size
  • 4 Hegman = 2 mil/50 micron particle size
  • 8 Hegman = 0 mil/0 micron particle size

  • Grind blocks made of high quality, corrosion resistant stainless steel for extended use
  • One channel designs
  • Groove depth is graduated on the block showing mils and Hegman scales
  • Made from ANSI 440C Stainless Steel

Technical Specifications
Path Size2 x 5 in
Scalesµm, Hegman
No. of Paths1
Range 0 - 100 µm
Range 0 - 8 Hegman
General
Weight3.6 kg
Weight8 lb
Grind block
Scraper (2514)
Storage case

Brochure

Grind gage no. 25, groove depth range 0-25 µm from BYK-Gardner

Replacement Scraper, 95 mm

Article No: 2514

Price: $329.00

Grind Gages - µm, Hegman, one path, Article No. 2508, Grind Gage No. 51, Grind gage - groove depth range 0-25 µm

Grind Gage No. 51

Grind gage - groove depth range 0-25 µm

Article No: 2508

Price: $584.00

Hegman micron scale from BYK-Gardner

Grind Gage No. 52

Grind gage - groove depth range 0-50 µm

Article No: 2507

Price: $584.00
