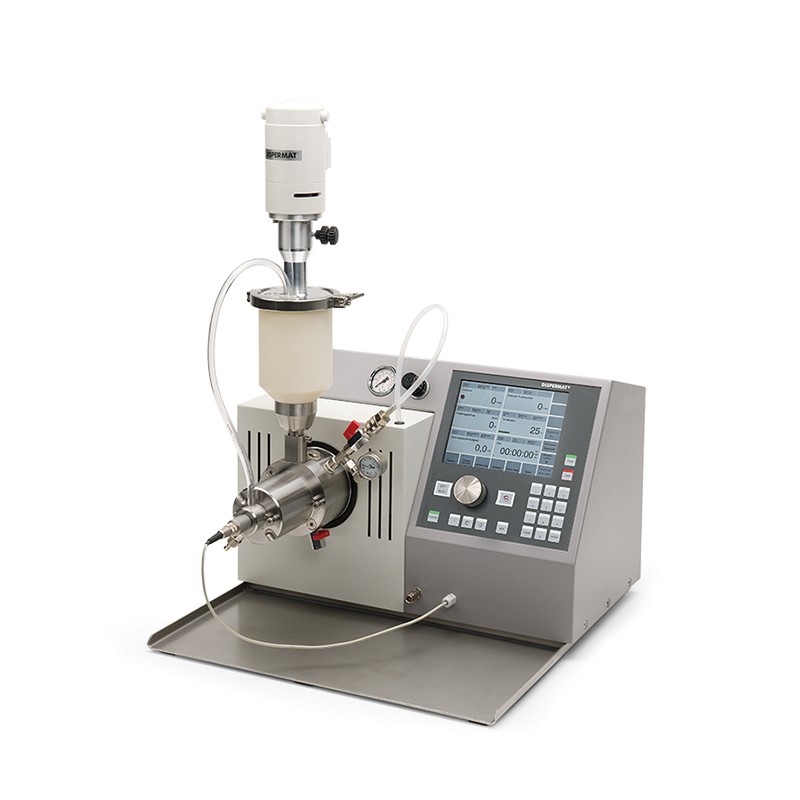

Dispermat SL-Nano

Art. No.: 1384

Dispermat SL200-Nano

  • Millbase: 2,000-50,000 ml
  • Milling Chamber: 2,000 ml
  • Speeds/rpm: 0-3,000

Select your Model

The SL-Nano Bead Mill System allows the use of 0.1 mm diameter bead size.

  • High power input for rapid results
  • C-technology display to monitor and record the important dispersion parameters
  • Wide selection of milling chambers from 50 ml to 2 liters

Technical Specifications
Power5.6 hp
Power4 kW
Speed0 - 3,000 rpm
Container Capacity5 l
Millbase Quantity2 - 50 l
Milling Chamber Volume2,000 ml
General
Power supply400 V, 3-phase
Weight180 kg
Weight396 lb
Horizontal bead mill
Pumping & Mixing system
Polyamide supply vessel 5 l
Sieve filter 0.04 mm
Temperature probe
Manual

Dispermat SL25-Nano

Article No: 1380

Dispermat SL5-Nano

Article No: 1376

Dispermat SL50-Nano

Article No: 1381

Dispermat SL100-Nano

Article No: 1382

Dispermat SL12-Nano

Article No: 1379
