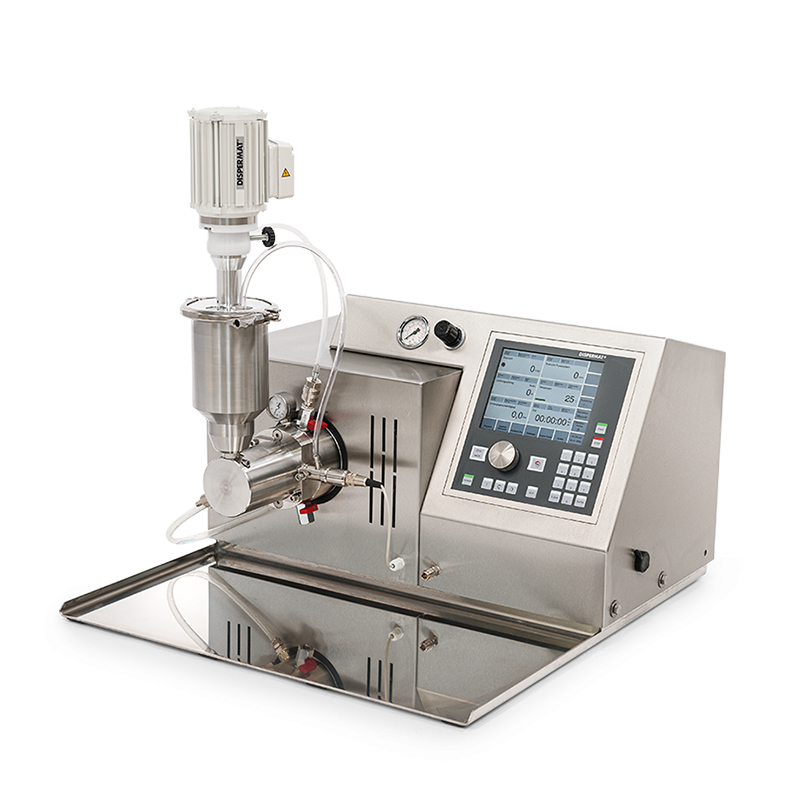

Dispermat SL-C

Art. No.: 1603

Dispermat SL-C 50

  • Millbase: 500-10,000 ml
  • Milling Chamber: 500 ml
  • Speeds/rpm: 0-6,000

Select your Model

The Dispermat SL-C Bead Mill product line offers maximum control of the dispersion process.

  • Compact design to save on counter space
  • Displays and records shaft speed, torque, energy input, temperature, time
  • PC interface and download of dispersion results
  • Small milling chambers available to save on disposal costs
  • Pumping and mixing system to control mill base flow rate through milling chamber
  • SL Nano kit accessory to convert standard SL model to nano milling design

Technical Specifications
Power3.1 hp
Power2.2 kW
Speed0 - 6,000 rpm
Container Capacity3 l
Millbase Quantity0.5 - 10 l
Milling Chamber Volume500 ml
General
Power supply400 V, 3-phase
Weight140 kg
Horizontal bead mill
Pumping & Mixing system
Polyamide supply vessel 3 l
Temperature probe
Mechanical seal
Manual

Dispermat SL-C 5

Article No: 1600

Dispermat SL-C 25

Article No: 1602

Dispermat SL-C 12

Article No: 1601

Dispermat SL-C 100

Article No: 1604

Dispermat SL-C 200

Article No: 1605
