Pycnometer - Density Cups

Article No. 9664

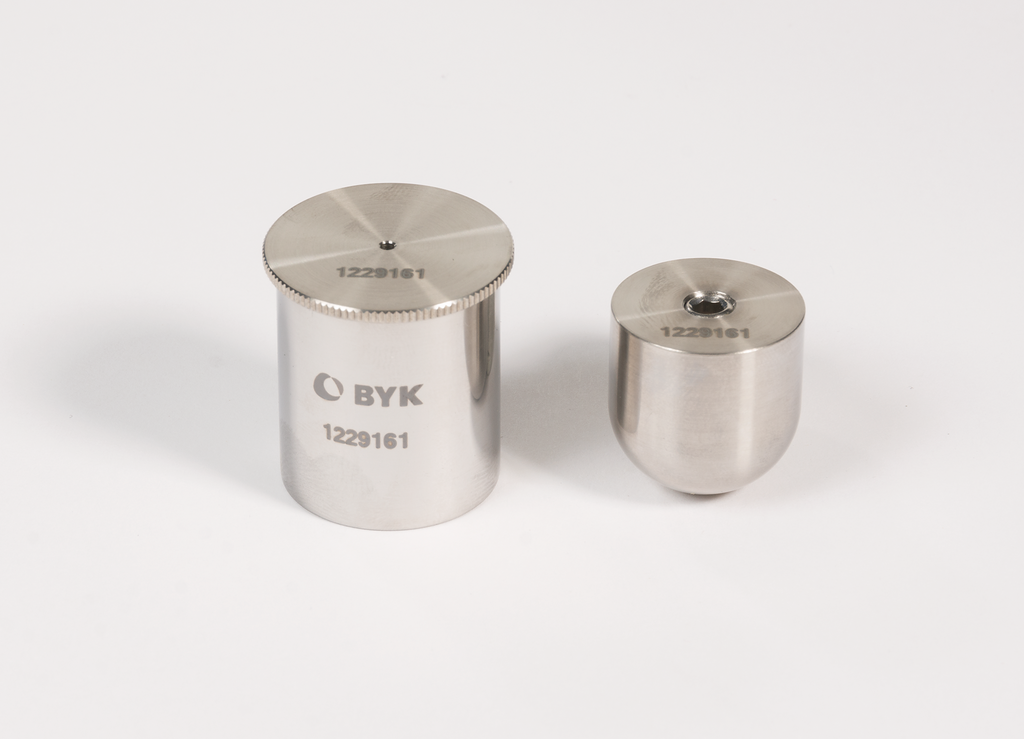

US Mini Cup w/tare weight
US Density Cup - small size 8.32 ml with tare weight

  • Volume in mL: 8.32
  • Dimensions: 25 x 32 mm (1.0 x 1.25 in)
  • Weight: 0.23 kg (0.5 lbs)

More options

Volume Description
Volume

Certificate:

$274.00 excl. taxes & shipping cost

Features

BYK-Gardner offers the US Standard Cup and US Midget Cup for easy conversion to a one-gallon volume as well as 100 ml or 50 ml size ISO density cup

  • Made from corrosion resistant steel
  • Compliant with ISO 2811 and DIN 53217 methods or ASTM D 333, D 1475, D 2805
  • Precisely made for maximum accuracy

Technical Attributes

    Technical Specifications

  • Volume
    8.32 ml
  • Volume Description
    US-Volume w/weight
  • General

  • Dimensions: L x W x H
    3.2 cm
  • Dimensions: L x W x H
    1.25 in
  • Dimensions
    ∅ 2.5 x 3.2 cm
  • Dimensions
    ∅ 1 x 1.25 in

Standards

BS

3900-A19

ISO

2811

ASTM

D333 D1475

DIN

53217

Procedure

  • Weigh cleaned density cup empty and record weight
  • Temper density cup and test liquid (Refer to appropriate test standard for proper temperature)
  • Fill density cup
  • Put cover on without tilting
  • Avoid air bubbles
  • Remove overflowing liquid carefully with absorbent cloth
  • Weigh filled density cup
  • Calculate density
