Flowability Tester

Art. No.: 14160

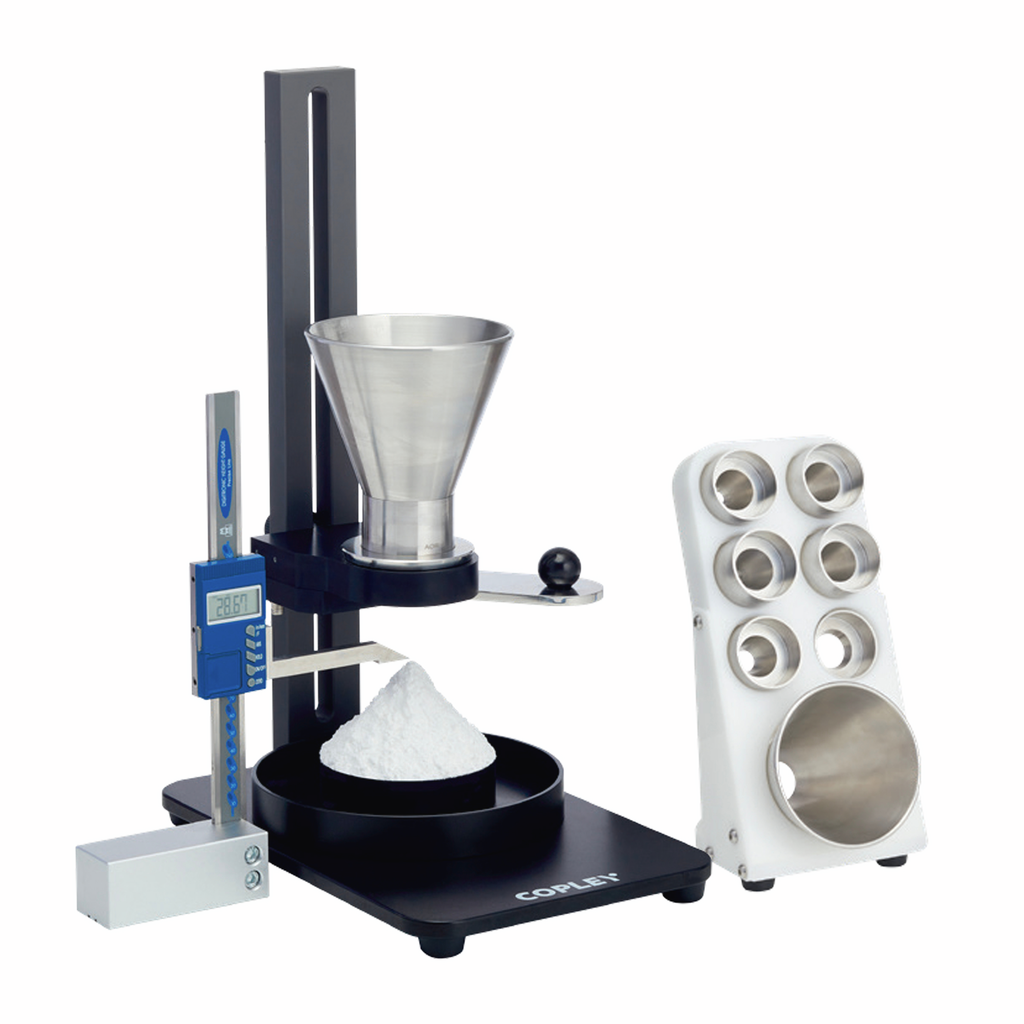

Flowability Tester w/Angle Of Repose

Flowability Tester with Flow Through Orifice via Funnel Test and Angle of Repose Test
Records the time taken for a fixed quantity of powder to pass through a funnel of known outlet diameter (Funnel Test)
Provides a simple method for assessing the frictional characteristics of powders by measuring the powders cone’s height (Angle of Repose Test)

Select your Model

Density Measurement

$6,495.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Powder flowability testing for all pharmacopeial assessments supporting industries such as cosmetics, food production and additive manufacturing.
The Powder Testing Workstation PTW offers:
- The Flow Through an Orifice via Funnel - Records the time taken for a fixed quantity of powder to pass through a funnel of known outlet diameter and is designed in accordance with USP <1174> and Ph. Eur. Chapters 2.9.36 and 2.9.16 for Flowability, the 316 stainless-steel funnel and nozzles (5, 7, 10, 15, 25 mm) simulate flow in a hopper or other similar production equipment.
- Angle of Repose - Providing a simple method for assessing the frictional characteristics of powders, the Copley Angle of Repose module is ideal for predicting manufacturing issues associated with gravitational flow. Comprising a 100 mm diameter circular test platform together with a digital height gauge, powder heights of up to 145 mm can be easily read from the clear display. The tangent of the Angle of Repose (θ) is determined by measuring the height of the powder cone in mm and dividing it by 50. The inverse tangent of this figure provides the Angle of Repose in degrees.
Ensures reliable manufacturing processes and consistent final product performance requires an understanding of how these constituent powders behave.
Designed to meet the standards outlined by USP, Ph. Eur., ASTM, and ISO for powder flow testing.
Can be configured to support six established methods including Angle of Repose, Flow Through an Orifice via Cylinder and Funnel, Bulk Density via Scott Volumeter and Shear Cell, plus Flowability and Bulk Density of Metal Powders (Hall, Gustavsson and Carney Flowmeter).
Works with the Powder Testing Assistant™ PTA 100i, which simplifies testing by guiding users through methods, automating calculations, and reducing transcription errors, ensuring accurate and reliable results every time. See accessories.

Baseplate
Upright (4xM5x20mm Socket Head Cap Screws/4xM5 Washers)
Shutter Module (1 x Washer/1 x Thumbscrew)
Hex Key, 4 mm
Powder Retaining Tray
Height Gauge
Stainless Steel Funnel
100 mm AoR Nozzle
Funnel Adaptor
