Balanced Beam Scrape and Mar Tester
Art. No.: 5780

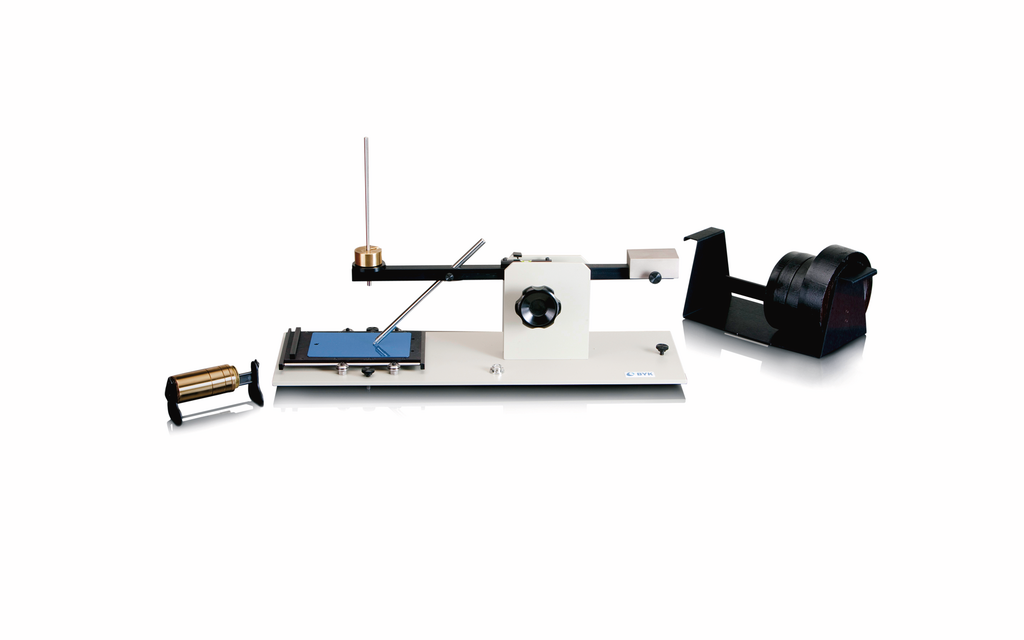

Balanced Beam Adhesion/Mar Tester
Adhesion Tester for scrape and mar resistance
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
The Balance Beam Tester has a flexible design to perform paint adhesion or mar resistance testing on a variety of substrates.
- Several stylus designs to optimize the test method
- Fast setup and easy to use
- Compliant with ASTM methods D2197, D2248, D2454, D5178 as well as MIL-DTL-7788G
- Weight force directly applied over the stylus for better precision
- Large weight selection range from 10 to 12,000 grams
| General | |
|---|---|
| Weight | |
| Weight | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
Tester
Loop stylus (5781)
Needle stylus (5782)
Weight post and holder
Weight rack and set of 12 weights:
6977 (1 x 10g, 2 x 20g, 1 x 50g, 1 x 100g, 2 x 200g,
1 x 500g), 6972 (1 x 1000g), 2 x 6974 (2 x 2000g ), 6976 (1 x 5000g)
Manual
Loop stylus (5781)
Needle stylus (5782)
Weight post and holder
Weight rack and set of 12 weights:
6977 (1 x 10g, 2 x 20g, 1 x 50g, 1 x 100g, 2 x 200g,
1 x 500g), 6972 (1 x 1000g), 2 x 6974 (2 x 2000g ), 6976 (1 x 5000g)
Manual
Brochure
- Technical-Data-Sheet_Balanced-Beam-Test_20250131.pdf
Technical-Data-Sheet_Balanced-Beam-Test_20250131.pdf
Hoffman Scratching Tool
Article No: 1611
Loop Stylus
Article No: 5781
Needle Stylus
Article No: 5782
Rod Stylus
Article No: 5783
Ball Point 1/8 in
Article No: 5784
Ball Point 1/16 in
Article No: 5785
Spit stylus
Article No: 5786
Stylus Holder
Article No: 5787
Weight 1000 g
Article No: 6972
Weight 2000 g
Article No: 6974
Weight 5000 g
Article No: 6976
Weight Set
Article No: 6977
Coin Holder For Adhesion/Mar Tester
Article No: 15030
