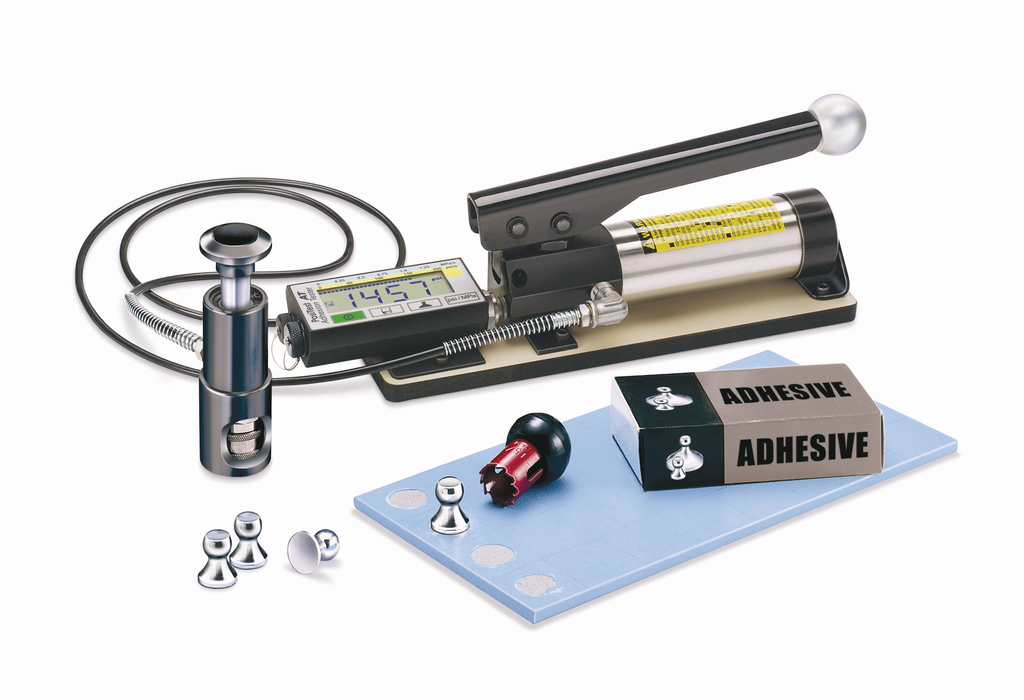

PosiTest AT Pull-Off Adhesion Tester from BYK-Gardner

PosiTest® Pull-Off Adhesion Test

Art. No.: 2201

PosiTest AT
Manual Pull-Off Adhesion Tester

Manual hydraulic pump designed to apply smooth and continuous pressure with a single stroke
Pull Rate Indicator to manually monitor and adjust the rate of pull

Select your Model

Adhesion Testers

$2,245.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

There are two models available. The model AT-A Automatic Pull-Off Adhesion Tester and Model AT manual version. Both models have the following features:

Portable, hand-operated instrument can be used in any position and requires no external power source-ideal for the lab and on-site
Large scale reads clearly and easily in PSI and MPa
Inexpensive, single-use dollies eliminate the need for heating, cleaning, or brushing for re-use
Self-aligning dolly enables measurement on smooth or uneven surfaces without adversely affecting the test results.
Heavy-duty hydraulic pump with safety valve helps prevent damage to pressure system
Quick-coupling makes securing dollies in actuator simple, fast and trouble-free
Multi-purpose, high-tensile two-part adhesive suitable for use with a wide variety of coatings and coating thicknesses
Cutting tool for isolating test area is included
Coating adhesion tester pressure system is calibrated and certified to ±1 % accuracy (full-scale) and comes with a two-year warranty
Internal memory stores up to 200 pulls. This includes maximum pull-off pressure, rate of pull, test duration, and dolly size
Optional PosiSoft software available to upload test results
USB Port PC interface
10, 14, 20, and 50mm dollies to maximize the measurement resolution and test range

General

Model

Manual

Weight

5.5 kg

Weight

12 lb

Dimensions: L x W x H

43 x 33 x 15 cm

Dimensions: L x W x H

17 x 13 x 6 in

Technical Data Chart

Data

Ordering Guide	20 mm Kit	50 mm Kit	50 mm² Tile Kit (BS EN 12004-2)	50 mm C1583 Kit (ASTM C1583)
Automatic Models:	0.7 - 24 MPa 100 - 3500 psi 100 - 7550 N	0.4 - 3.8 MPa 50 - 560 psi 100 - 7550 N	0.4 - 3.033 MPa 50 - 440 psi 100 - 7550 N	0.4 - 3.8 MPa 50 - 560 psi 100 - 7550 N
Manual Models:	0.7 - 20 MPa 100 - 3000 psi	0.4 - 3.5 MPa 50 - 500 psi	0.4 - 2.585 MPa 50 - 375 psi	0.4 - 3.5 MPa 50 - 500 psi
Included Dollies:	Ø20 mm (qty 20) Aluminum	Ø50 mm (qty 8) Aluminum	50 mm2 Plate (qty 4) with threaded post Steel	Ø50 mm (qty 4) with > 25 mm thickness Steel
Typical Application:	Higher bond strength coatings on metals	Lower bond strength coatings on wood, concrete and plastic	Cementitious adhesive for tiles	ASTM C1583 Concrete surfaces and overlays
Cutting Tool:	20 mm hole saw	50 mm hole saw	-	50 mm diamond grit hole saw with arbor
Adhesive:	ResinLab EP11HT 2-Part Epoxy	ResinLab EP11HT 2-Part Epoxy	ResinLab EP11HT 2-Part Epoxy	ResinLab EP11HT 2-Part Epoxy^
Resolution:	0.01 MPa (1 psi)
Accuracy:	±1% Full Scale
Standards:	Conforms to international standards including ASTM D4541, D7234; ISO 4624, 16276-1; AS/NZS 1580.408.5 and others

Technical Specifications

Adhesion Strength

0 - 20 MPa

Adhesion Strength

0 - 3000 psi

Resolution

± 0.01 MPa

Resolution

± 1.0 psi

Dolly Size

20 mm

AS/NZS	1580.408.5
ASTM	D4541 D7522 D7234
ISO	4624 16276-1

Adhesion Tester with digital display
Hydraulic pump and actuator
Dolly set 20mm (0030)
Cutting tool for 20 mm dollies
Adhesive Kit (0032)
Flexible hose 1.5 m (5 ft.)
USB Cable
Certificate of calibration
Manual
Carrying case
