DY-2 Adhesion Pull-Off Testing

Article No. 12661

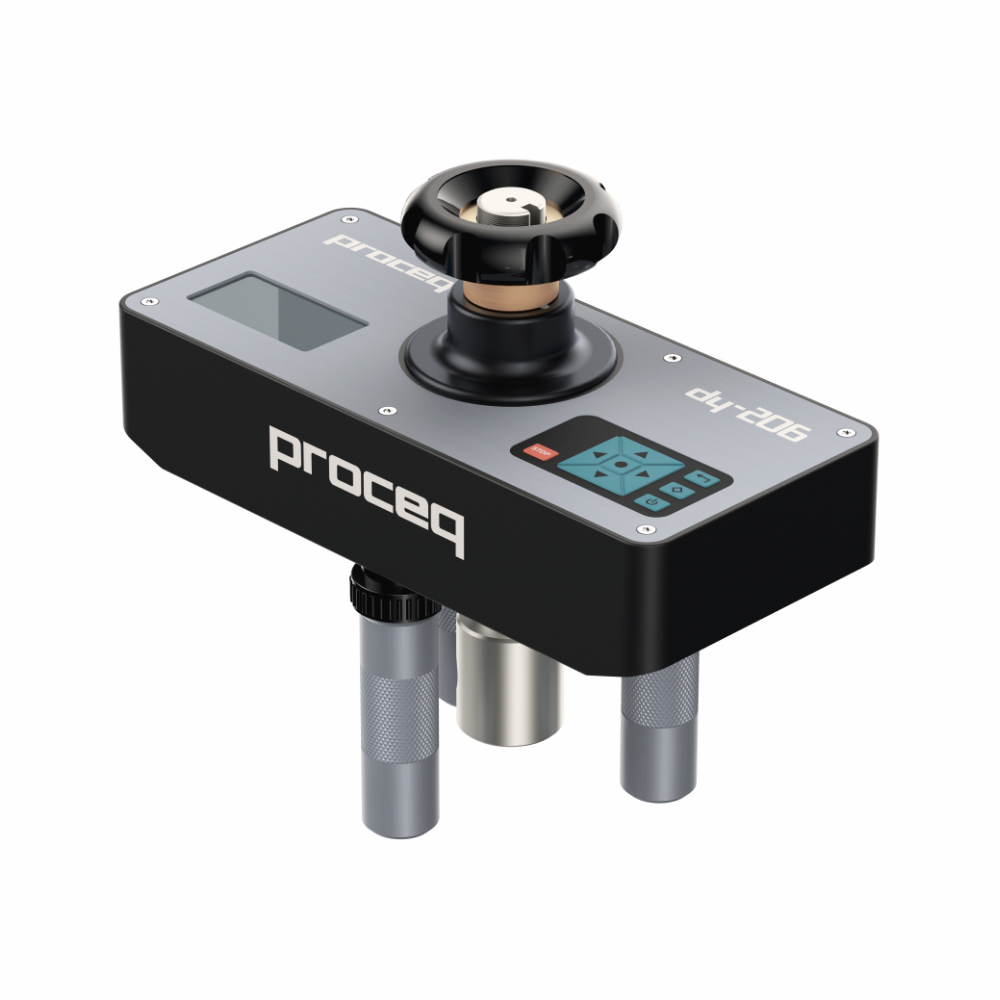

Ahesion Dy-206 Pull-Off Tester, 6Kn

The Proceq™ DY-2 is an automated pull-off tester with an unmatched ease of operation and can store a complete record of the test. Pull-off testing is one of the most widely used test methods in the construction industry. It is indispensable for the diagnosis of structural damage to buildings as well as for checking complete renovation work.

$6,507.00 excl. taxes & shipping cost


  • Constant load rate - One of the major influences on the result of a pull-off test is the operator influence in the application of a constant load rate. The DY-2 has integrated, feedback controlled motors that remove this variable completely, by providing a fully automated test at a constant load rate which can be verified.
  • Unique in parameter setting - The DY-2 is further unique in that it records every single test parameter required by the specification: Time and date of the test, test disc size, maximum load applied, automatic calculation of bond strength, applied load rate with graphical record, complete time of test as well as the failure mode. For the very first time, the operator is able to provide a complete record of the pull-off test, proving that the test was carried out in accordance with the applicable standard.
  • Complete report of load rate - DY-2 provides documentary proof that the test was actually carried out with the specified load rate. The load rate curve is saved along with the test results and may be downloaded to a PC for reporting, or it may also be viewed in real time if the DY-2 is connected to a PC during the test.
  • Failure mode reporting - Most pull-off testing standards require the operator to record the mode of failure. DY-2 is unique in that it allows this information to be saved along with the test result.
  • Range of test discs available - Depending on the application and material under test, the standards specify a range of test disc sizes.

Technical Attributes

  • Data
    Max Stroke:5mm
    Calibration Accuracy:DY-206 EN ISO 7500-1 Class 2
    Battery Capacity:1500 mAh, 3.75V (min. 80 measurements)
    Memory Capacity:100 measurements
    Charger Connection:USB type A (5V, 500mA)
    Weight:9.92 lbs (4.5 kg)
    Dimensions of Housing:4.29" x 9.45" x 8.10" (109 x 240 x 205.5 mm)
    Operating Temperature:32 to 122°F (-10 to 50°C)
    Storage Temperature:14 to 158°F (-10 to 70°C)
    IP Classification:IP54
    Tensile Force:0.6 - 6 kN / 135 - 1349 lbf
    Test Disc Ø 50mm:0.3 - 3.1 MPa / 44 - 443 psi
    Maximum Pulling Speed:4.65 mm/min 0.183 inch/min
    Applications:Increased accuracy for low strength applications such as testing adhesive strength of mortars and renders


Conforms to: EN 1542, EN 1015, EN 1348, ISO 4624, BS 1881 Part 207, ASTM D4541, ASTM C1583, ASTM D7234, ASTM D7522, ZTV-SIB 90. Additionally, most standards state an accuracy requirement. The DY-2 is calibrated according to EN ISO 7500-1 Class 1 and thereby exceeds the accuracy requirements specified in any of the standards listed.


  1. Select Unit
  2. Select size of Test Disc
  3. Select Load Rate
  4. Start test
  5. Get your result

Delivery Content

Complete with battery charger with USB cable, test disc Aluminum Ø 50mm/M10, draw bolt M10, torque screwdriver, software, operating instructions, calibration certificate and carrying case.
