PosiTest CH Cross Hatch Adhesion Tester

Art. No.: 15370

Cross Hatch ISO Kit 1mm/6 Teeth

ISO 2409 PosiTest Kit
1 mm / 6 Teeth Blade
0 - 2.3 mils (0-60 µm)

Select your Model

Adhesion Testers

$340.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Determines a coating's ability to resist separation from a substrate when a lattice pattern is cut into the coating in accordance with ISO 2409 and ASTM D3359
Includes all tools and accessories required for cross hatch testing
Ergonomic tool handle with non-slip grip provides comfortable all-day use
Pivoting cutting head ensures proper positioning and equal pressure across the cutting surface
Easy to replace, high-grade hardened steel blade with 4 cutting edges for longer testing
Choice of adhesive tape conforms to ISO 2409 or ASTM D3359
Conforms to ISO 2409/16276-2, ASTM D3359, AS 3894.9/1580.408.4, JIS K 5600-5-6
Ideal for coatings up to 250 μm (10 mils) depending on blade and Standard
Wide range of 4-in-1 cutting blades available for different Standards, coating thicknesses, and substrates. Tool is compatible with all DeFelsko cutting blades.
Illuminated Magnifier available with 3x or 10x magnification depending on Standard
Brush included to remove any detached flakes from the coating
Durable hard shell case keeps contents secure

Technical Data Chart

Data

ISO 2409 Test Kits	15370	15371	15372
Coating Thickness:	0-2.3 mils (0-60 µm)	2.4-4.7 mils (61-120 µm)	4.7-9.8 mils (121-250 µm)
Specified Blade (Spacing # of Cuts):	1 mm / 6 Teeth*	2 mm / 6 Teeth	3 mm / 6 Teeth
* For soft substrates (e.g. wood and plaster), use 2 mm / 6 Teeth for coating thicknesses between 0 - 120 μm (0 - 4.7 mils)

AS	1580.408.4 3894.9
ASTM	D3359
ISO	2409 16276-1
JIS	K 5600-5-6

Cross Hatch ISO Kit 1mm/6 Teeth

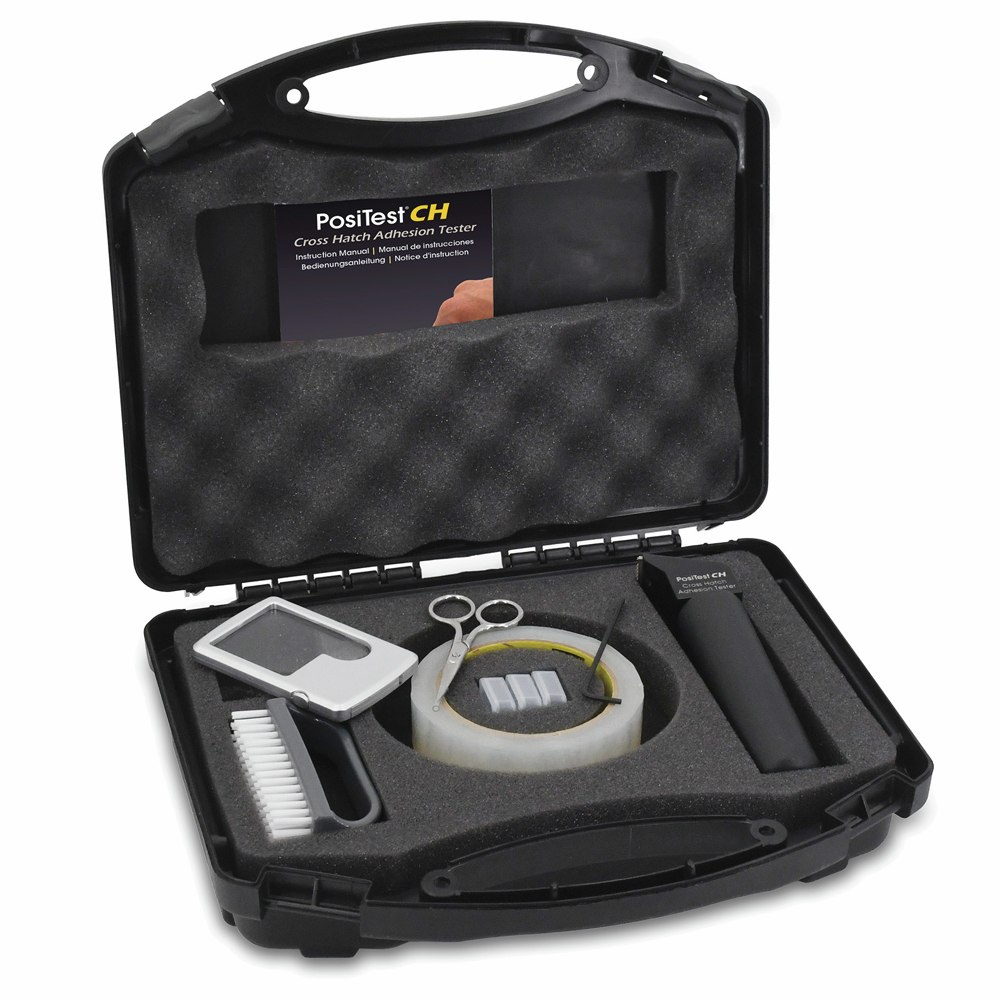

Cross hatch tool, blade, 3X magnifier, ISO adhesive tape, brush, scissors, 3/32" hex key, ISO classification reference chart, instruction manual, hard-shell case
