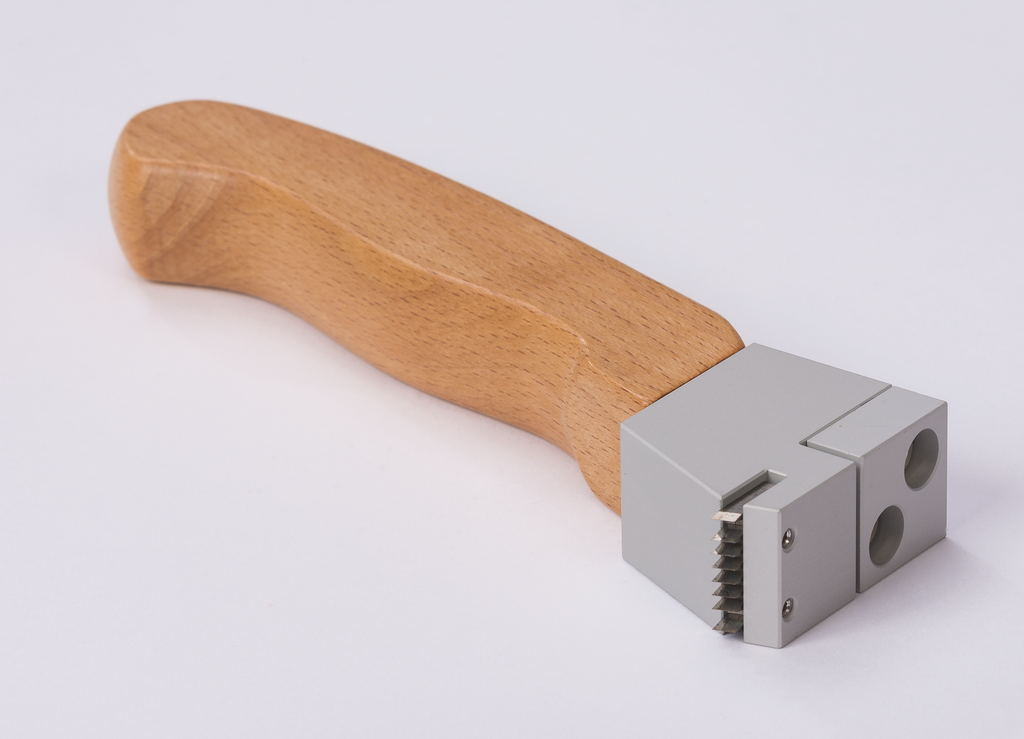

Cross Hatch Kit, single blade

Article No. 5126

Cross-Cut Kit 6, 1-edge 2 mm
Adhesion Tester single blade 2mm spacing - ISO 2409

  • 6 Teeth
  • 2 mm Cutter Spacing
  • In accordance with DIN / ISO methods

More options

Material
Standard/Cutter Spacing
$295.00 excl. taxes & shipping cost

Features

The crosshatch paint adhesion test kits also have the one edge blade option to comply with the appropriate ASTM and ISO coating adhesion test methods.

  • Blades made from hardened steel alloy for long life
  • Pivoting head blade holder for easy alignment onto the coating surface
  • Test kit comes with all the accessories necessary to perform cross-hatch test

Technical Attributes

    Technical Properties

  • Material
    wooden handle
  • Technical Specifications

  • Standard/Cutter Spacing
    DIN / ISO - 2 mm
  • Standard
    DIN / ISO
  • No. of Cutting Edges
    1
  • No. of Teeth
    6
  • Cutter Spacing
    0.08 in
  • Cutter Spacing
    2 mm
  • Hex Wrench included
    yes

Standards

ISO

2409

DIN

927-3

Procedure

  • Make a lattice pattern in the film with the appropriate tool, cutting to the substrate.
  • Brush several times lightly backwards and forwards, using a soft brush or tissue to remove any detached flakes or ribbons of coatings.
  • Place a tape over the cut, smooth it firmly with a fingertip and remove the tape.
  • Examine the grid area using an illuminated magnifier.

DIN EN ISO 2409 standard describe that the number of cuts shall be 6. The spacing of the cuts in each direction shall be equal and shall depend on the thickness of the coating and on the type of substrate as follows:

1 mm space for hard substrates (metal) 0 - 60µm
2 mm space for soft substrates (plastic) 0 - 60µm
2 mm space for hard or soft substrates 61 - 120µm
3 mm space for hard or soft substrate 121 - 250µm

Delivery Content

Cross-Cut Tester kit with blade
Hex wrench for changing blades
Magnifier (5136)
Cleaning brush (5135)
One roll of adhesive tape
Manual
Carrying case
