Scrub abrasion and washability testers

Article No. 5097

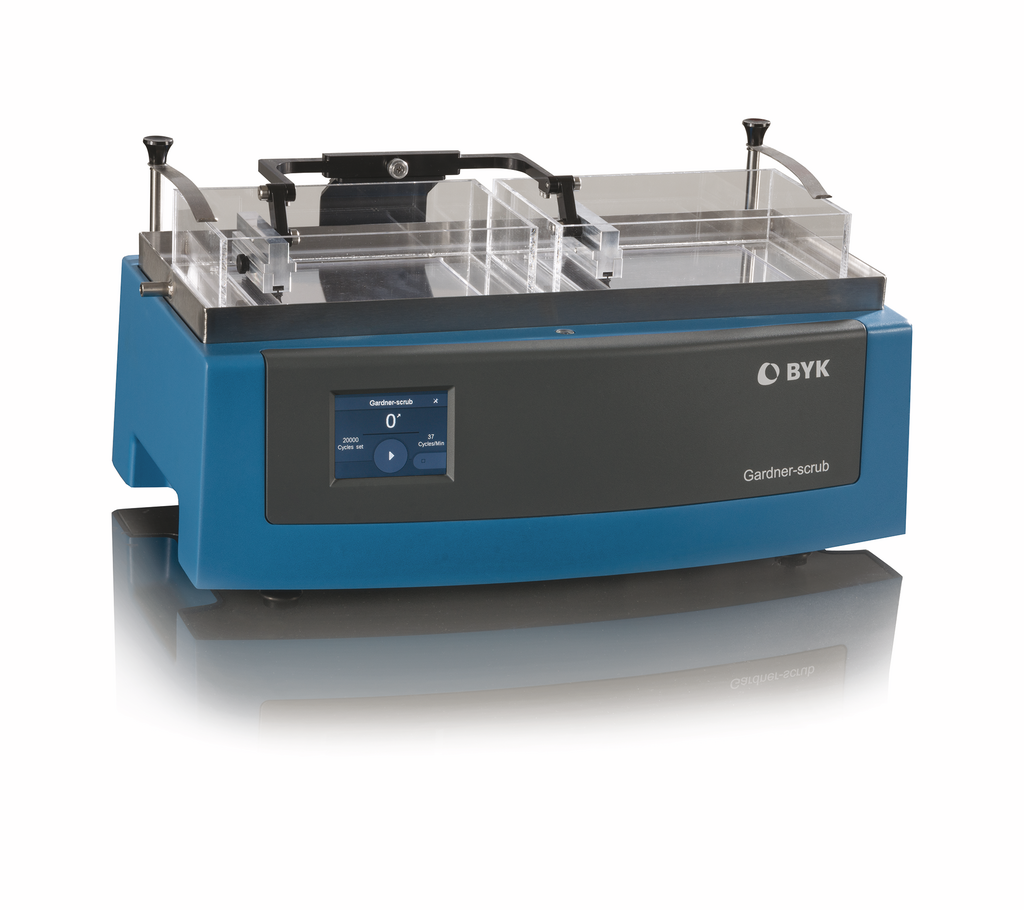

Gardner-scrub, ECE 43
Abrasion Test compliant with DIN ISO 5685 / ECE R43

  • Scrub tester modified to fullfill DIN ISO 5685 / ECE R43 Wiper Resistance test method for automotive windshields
  • The test method was developed to simulate the typical stresses an automotive windshield is exposed.

Select your model

$10,590.00 excl. taxes & shipping cost


Coated and uncoated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, scouring pad, sand paper, and other means. Abrasion resistance can be tested by wet abrasion methods using scrub media or cleaning solutions. The most common applications are testing the scrub resistance of interior wall paints, floor tiles, shower stalls, and furniture surfaces. The abrasion tester can examine the washability of a coated surface for the removal of stains. Detergents and cleaning solutions can be tested and evaluated in a reproducible manner.

  • Compliant with ASTM, DIN, and ISO methods with appropriate accessories
  • Durable chain drive mechanism for long-term reliable operation
  • Reciprocating linear motion with a constant speed over the travel distance for repeatable results
  • Compact design saves on counter space
  • Easy to use touch screen display
  • Instrument arm holds up to 3 brush or pad holders to increase output
  • User selectable scrub rate from 6 - 60 cycle/minute
  • Up to 4 kg (8.8 lbs) can be applied to the instrument arm
  • Stroke length 13.0 cm (5.1 inch)

Technical Attributes

    Technical Specifications

  • Scrub Rate
    6 -60 cycles/minute
  • Stroke Length

    13 cm for ECE model (5097)


  • Stroke Length

    5.1 in for ECE model (5097)


  • General

  • Power supply
    100 - 240 V, 50/60 Hz
  • Weight
    14.5 kg
  • Weight
    32 lb
  • Dimensions: L x W x H
    48.3 x 19.1 x 27.9 cm
  • Dimensions: L x W x H
    19 x 7.5 x 11 in







  • Attach the samples in the acrylic sample boxes

  • Fill in a freshly prepared aqueous suspension

  • The stroke length of the instrument is 130 mm ± 2 mm in two parralel boxes

  • Attach a wiper blade (e.g. CR Bosch Profile 32) with a load of 15 g/cm (80 mm blade 120 g)

  • Test two samples on a double stroke instrument parralell or in row

  • Setup instrument to 10.000 cycles

  • Samples need to be turned after 10.000 cycles

  • Run test for another 10.000 cycles

  • Measure transmission haze of cleaned and dried surface

Delivery Content

2-Acrylic boxes
2-Wiper holders
2-Space plates 2 mm
2-Space plates 4 mm
4-precut wiper blades
200 g scale
Sample pan (5041)
Bubble level
