Scrub abrasion and washability testers

Article No. 5060

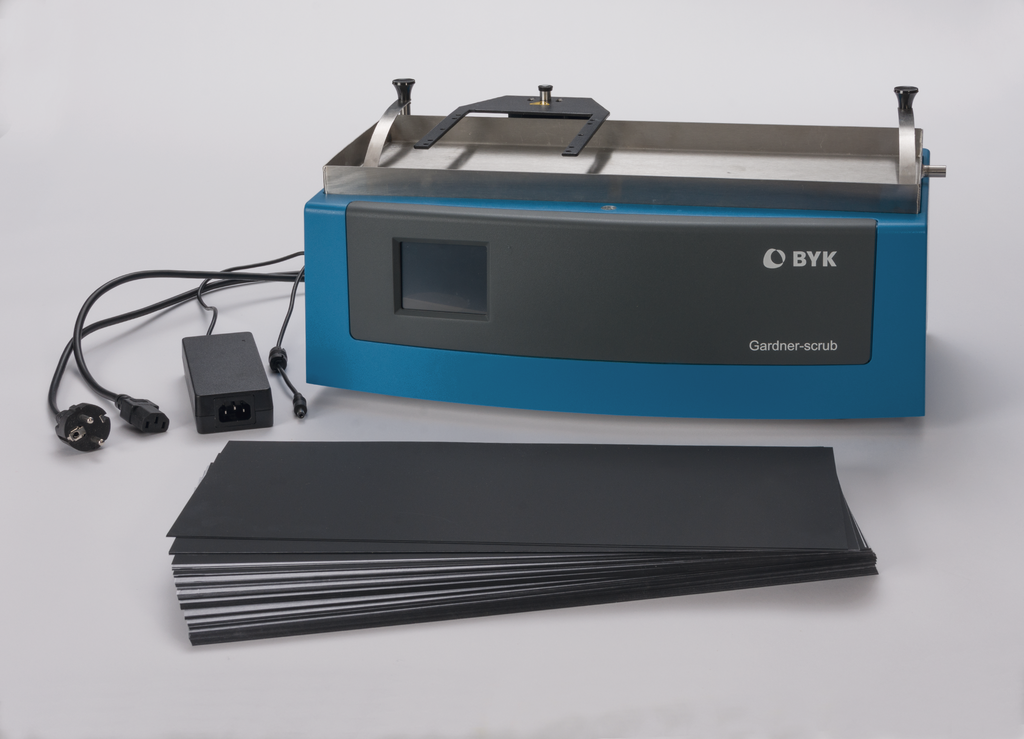

Gardner-scrub, base
Abrasion Tester, base unit without accessories

  • Base unit with sample pan and scrub panels.

Select your model

$7,640.00 excl. taxes & shipping cost


Coated and uncoated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, scouring pad, sand paper, and other means. Abrasion resistance can be tested by wet abrasion methods using scrub media or cleaning solutions. The most common applications are testing the scrub resistance of interior wall paints, floor tiles, shower stalls, and furniture surfaces. The abrasion tester can examine the washability of a coated surface for the removal of stains. Detergents and cleaning solutions can be tested and evaluated in a reproducible manner.

  • Compliant with ASTM, DIN, and ISO methods with appropriate accessories
  • Durable chain drive mechanism for long-term reliable operation
  • Reciprocating linear motion with a constant speed over the travel distance for repeatable results
  • Compact design saves on counter space
  • Easy to use touch screen display
  • Instrument arm holds up to 3 brush or pad holders to increase output
  • User selectable scrub rate from 6 - 60 cycle/minute
  • Up to 4 kg (8.8 lbs) can be applied to the instrument arm
  • Optional weights for custom applications

View more videos

Technical Attributes

    Technical Specifications

  • Scrub Rate
    6 -60 cycles/minute
  • Stroke Length

    25.4 cm, standard setting

    Optional stroke length of 22.9 or 27.9 cm to be specified when ordering


  • Stroke Length

    10 in, standard setting

    Optional stroke length of 9 in or 11 in to be specified when ordering


  • General

  • Power supply
    100 - 240 V, 50/60 Hz
  • Weight
    14.5 kg
  • Weight
    32 lb
  • Dimensions: L x W x H
    48.3 x 19.1 x 27.9 cm
  • Dimensions: L x W x H
    19 x 7.5 x 11 in







D1792 D2198 D2486 D3206 D3207 D3450 D4213 D4488 D4828 D6736



Delivery Content

Sample pan (5041)
Bubble level
byko-chart Black Scrub Panel P121-10N (5015)
Power supply
