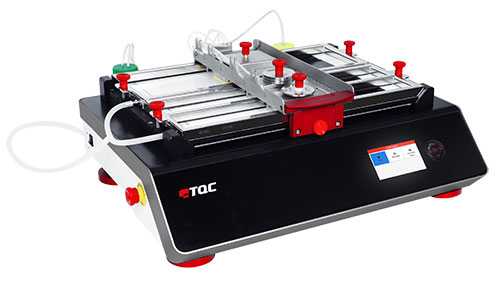

The TQC Scrub Abrasion and Washability Tester is used to test the resistance of paint, varnish or coatings to scratching, wearing, and color loss due to wet or dry abrasion, by simulating everyday wear from cleaning actions or general use.
|Traverse Speed:||1 - 60 cycles per minute|
|Traverse Speed Accuracy:||+ / - 1% of set speed|
|Stroke Length:||0.39 - 11.81 in. (20 - 300 mm)|
|Stroke Length Accuracy:||+ / - 0.01 mm|
|Pump Flow Rate:||0.0 - 3.0 ml per minute / 0.0 - 0.79 GPH|
|Max. Panel Width:||2.76 in. (70 mm)|
|Max. Panel Length:||13.78 in. (350 mm)|
|Max. Panel Height:||1.38 in. (35 mm)|
|Depth:||19.3 in. (490 mm)|
|Depth with Pumps:||20.87 in. (530 mm)|
|Width:||25.2 in. (640 mm)|
|Height:||9.24 in. (235 mm)|
|Power Supply:||100 - 240 V / 50 - 60 Hz|
|Power Consumption:||Max. 50 Watt|
|Display:||480 x 272 pixel TFT display Control: 5-key navigation switch (Mouse Keyboard optional)|
|Menu Languages:||English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian, Turkish|
DIN 53778, ASTM D2486, ASTM D4213, ASTM D4828, ASTM D3450, ASTM D7835, ISO 11998, ASTM F1319, ISO 105X12, Renault D431010, GME 60269, ECCA T11, EN 13523-11, EN 60730-1 and EN 13300.
Operation is intuitive by means of a jog-dial switch and a multi-lingual operating menu on a large illuminated display. This unique system guides the operator through the interface of the lab-machines. At each step of the multilingual operating menu the interface detects which buttons are active and indicates these by means of an illuminated red center. This results in a very intuitive operating system which is enhanced with information on the machine’s display.
13970 - Scrub Abrasion and Washability Tester, 24V adapter & Power Cable, Manual, Tubing, Fluid containers and Manual, (2) AB5196 Test Bed, (2) AB5197 Clamping Frames, (2) AB5041 Tool Adapter Double, (2)AB5180 Glass Base
13971 - Scrub Abrasion and Washability Tester Basic, 24V adapter & Power Cable, and Manual (2) AB5196 Test Bed, (2) AB5197 Clamping Frames, (2) AB5041 Tool Adapter Double, (2)AB5180 Glass Base
