BK/BKV Drying Recorders Cube Applicators
Article No. 11348
SS Applicator 50 & 100 Micron

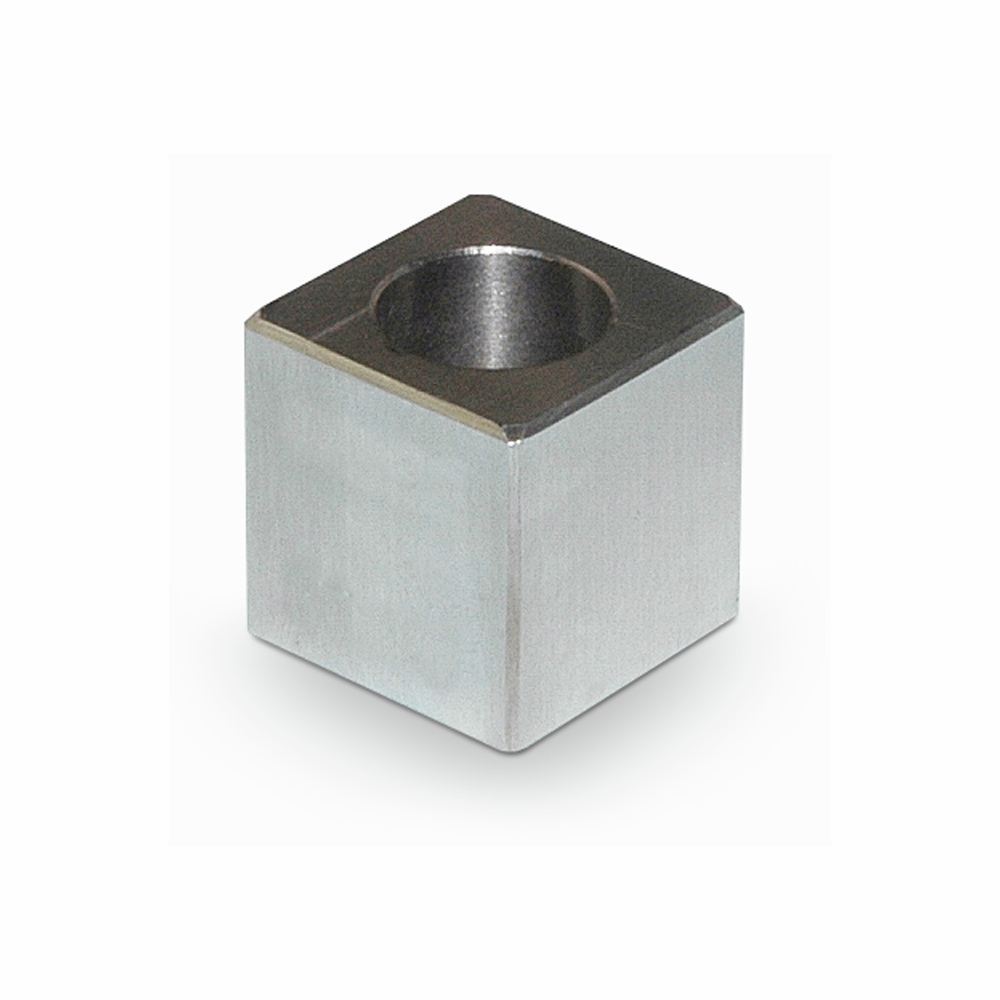

The Cube Applicator is a stainless-steel cube used to apply paint for Drying Time Recorders. It has a hole drilled centrally from one face through to the opposite face.
Features
- The standard applicator has a gap depth of 75 microns (3 mils) one end and 150 microns (6 mils) the other, which will apply a paint film thickness of approximately half the gap size.
- Other available sizes inlcude: 150 & 300, 50 & 100, 25 & 50, 400 & 650 and 64 & 128 Microns.
- Any gap depth between 10 and 650 microns can be supplied to suit customer requirements.
Procedure
- The applicator is placed at one end of the glass strip with the ground gap facing the end.
- Paint is poured into the hole and the applicator is steadily drawn down the glass strip and off the other end, the gap being the trailing end of the applicator.
- Paint will flow through the gap depositing a 12 mm wide film on the glass strip.
