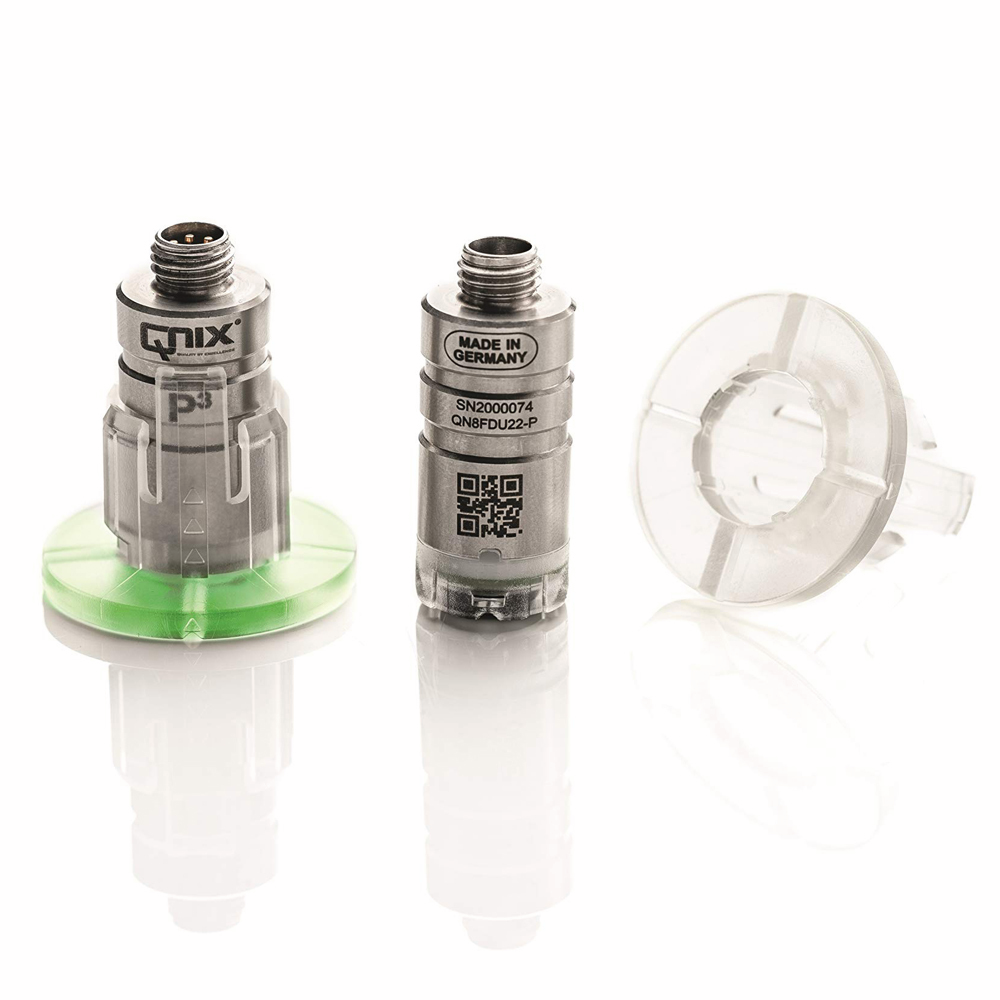

QNix 9500 Coating Thickness Gauge Probes

9500 Probes

Art. No.: 15121

Probe Fe 3 Mm For Qnix 5500/9500

Select your Model

Thickness Gauges

$508.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The new QNix® standard probe is small and highly robust
Probe adaptor cable is sold separately made of drag chain compatible PUR
The values listed for the probes indicate the max film thickness that they can measure
There are Fe-, NFe- and dual probes available
Stainless steel probe with a protective membrane, IP65 dust and water protection
Resistant probe head with polished ruby
Chemically resistant material, to clean with solvents (acetone, nitro dilution, ethanol)
LED-limit indicator on the probe tip
There is a digital copy of the last calibration certificate saved in each probe, which can be integrated into a report via PC software.
All interchangeable standard probes of the QNix® 9500 are also compatible with the new QNix® 5500, thus ensuring a cross-model flexibility

Technical Data Chart

Data

QNix® 9500 Probes
Status Display with RGB-LED on the Probe:	yes
Limit Display with RGB-LEDs on the Probe:	yes
Measuring Principle:	magnetic: magnetic field amendment / hall-effect Fe / whirl current NFe
Standards:	DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3 & 11), BS 3900-C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091
Measuring Range:	depending on the probe
Measuring Speed (Measurements per Minute):	≥ 120
Accuracy of Measurement** on Fe Substrates Related to QNix® Reference Standards:	± (1 µm + 2 % of the reading) to 2.0 mm ± 3 % of the reading from 2.0 mm
Accuracy of Measurement** on NFe Substrates Related to QNix® Reference Standards:	± (2 µm + 2 % of the reading) to 2.0 mm ± 3 % of the reading from 2.0 mm
Smallest Measuring Surface Fe / NFe:	Diameter 14.5 mm
Smallest Curvature Konvex Fe:	4 mm - Zero adjustment and 250 µm adjustment on original substrate (accuracy checked up to 250 µm) 6 mm - Zero point adjustment on original substrate (accuracy checked up to 250 µm)
Smallest Curvature Konvex NFe:	30 mm - Zero adjustment and 250 µm adjustment on original substrate (accuracy checked up to 250 µm) 50 mm - Zero point adjustment on original substrate (accuracy checked up to 250 µm)
Minimum Thickness of Base Metal Fe:	25 µm - Zero adjustment and 250 µm adjustment on original substrate (accuracy checked up to 250 µm) 100 µm - Zero point adjustment on original substrate (accuracy checked up to 250 µm)
Minimum Thickness of Base Metal NFe:	20 µm - Zero adjustment and 250 µm adjustment on original substrate (accuracy checked up to 250 µm) 50 µm - Zero point adjustment on original substrate (accuracy checked up to 250 µm)
Mechanical Properties
Material Casing Top:*	Stainless steel V4A (1.4305)
Material Casing Bottom:*	Trogamid®
Material Measuring Tip:*	Ruby, polished (Al203)
Dimensions (Height, Diameter):	34.5 mm, 14.5 mm
Weight:	11.9 g
Robustness / Environmental Conditions
IP Protection:	IP65
Operating Temperature:	-20 °C to +70 °C
Storage Temperature:	-20 °C to +70 °C
Max. Surface Temperature:	80 °C
Max. Surface Temperature at 1s Measuring Time every 20s:	100 °C
* Clean with a damp cloth; is chemically resistant against acetone (except soft rubber parts e.g. keyboards or rubber protective frame), nitro dilution and ethanol ** An accurate measurement can vary when external temperature is below -5 °C or above 65 °C, but not more than factor 2.
