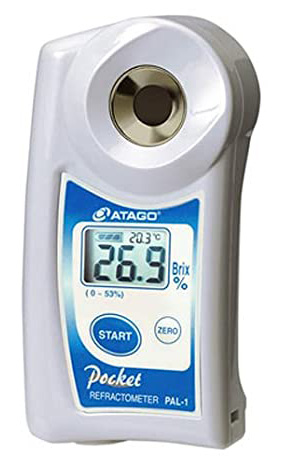

Pocket PAL 1 Refractometer

Article No. 13009

Atago Pocket Pal Refractometer

The Pocket PAL 1 Refractometer works perfectly in measuring almost any fruit juice, food, or drink, such as soup, sauce, ketchup, tomato sauce, low-sugar jam, or marmalade. PAL series comes with Data Transmission Function with NFC (Near Field Communication) technology. Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader.

$399.00 excl. taxes & shipping cost


  • Simple operation - apply sample, press start, and reading is displayed in seconds
  • Extended range for added flexibility
  • Rugged design is IP65-rated and easy to clean
  • Easy calibration - just clean prism, add water, press the zero key
  • No need to worry about spilling sample on the instrument
  • Easy to use
  • Light and compact
  • Wide measurement range
  • Automatic Temperature Compensation

Technical Attributes

  • Data
    Measurement Range:Brix 0.0 to 53.0%
    Minimum Indication:Brix 0.1%
    Measurement Accuracy:Brix ±0.2%
    Auto Temperature Compensation:10 to 100°C
    Power Supply:2 x AAA Batteries
    Waterproof Protection Class:IP65
    Dimensions WxDxH:2.1 x 1.2 x 4.3 in. (5.5 x 3.1 x 10.9 cm)
    Weight:3.5 oz. (100g)
    Zero Setting:Uses just water (Standard liquid not needed for calibration)


  1. Apply 2-3 drops pnto the prism surface
  2. Press the START key
  3. Brix % displayed in 3 seconds

Delivery Content

Storage case
