PosiTector® SST Soluble Salt Tester

Name: Positector SST Probe Only
Price: 395.0 USD
Availability: InStock

Article No. 14562

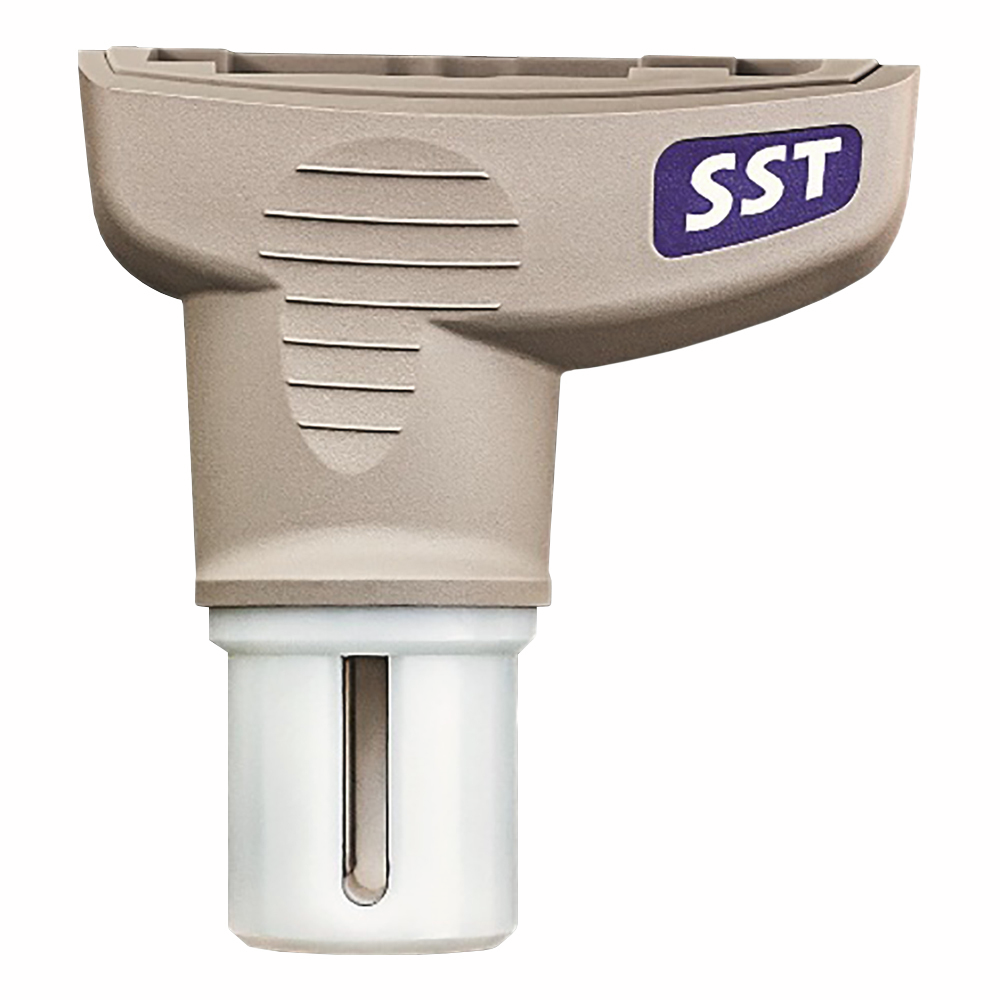

Positector SST Probe Only

The PosiTector SST Soluable Salt Tester measures the concentration of soluable salts on metal surfaces. It can be used with all Bresle patch types including PosiPatch. The conductivity probe is specifically designed for ISO 8502-6,9, and it displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2). Its onscreen interface guides users through the Bresle test method.

Select your model

excl. taxes & shipping cost

Features

Conductivity probe specifically designed for ISO 8502-6,9 - the Bresle Method
Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
Easy 1-2-3 gage interface guides users through the Bresle test method
Automatic storage of a background (blank) measurement, handy when performing multiple salt tests
Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
Ergonomic design with durable rubberized grip
Shock-absorbing protective rubber holster for added impact resistance
Two year warranty on gage body AND probe
Long Form Certificate of Calibration showing traceability to NIST included
Includes certified conductivity standard (calibration solution) to verify probe accuracy. Certificate included.
Automatic temperature normalization and sample temperature reporting
Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940
PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Ideal for determination of water-soluble contaminants in non-metallic blast media
A selection of kits include everything needed to retrieve and analyze soluble salts on surfaces
Adjustable for various Bresle patch volumes
Selectable display languages
Auto rotating display with Flip Lock
Track and record test duration in accordance with ISO 8502-6
Screen Capture, save 100 screen images for record keeping and review
Instant-on feature quickly powers up the gage if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Software Updates via web keep your gage current
Includes PosiSoft suite of software for viewing and reporting data
Every stored measurement is date and time stamped

Technical Attributes

Data

Range:	0 - 500 µS/cm, 0 - 2000 mg/m², 0.0 - 200.0 µg/cm²
Resolution:	1 µS/cm*, 1 mg/m², 0.1 µg/cm2
Accuracy:	+/- 2 µS/cm (0 - 200 µS/cm) +/- 10 µS/cm (201 - 500 µS/cm)
Hi-Res Mode:	0.1 µS/cm (0 - 200 µS/cm)
Temperature Range:	0 - 50° C (32 - 122° F)
Normalization Temperature:	25° C (77° F)
Test Cell Volume:	1 ml
Size:	165 x 61 x 28 mm (6.5" x 2.4" x 1.1")
Weight:	140 g (4.9 oz.) without batteries

More Information

Standard Models - Includes ALL features previously listed plus...

Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Advanced Models - Includes ALL features previously listed plus...

Storage of 250,000 readings from multiple probes in up to 1,000 batches
Touchscreen keyboard for quickly renaming batches, adding notes, and more
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Standards

Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940

Delivery Content

Standard and Advanced bodies come with Nylon carrying case with shoulder strap
