Destructive Film Thickness Gauge
byko-cut no cutters, Metric
Metric DFT Gauge - without blades
- byko-cut universal with metric scale
- No cutters included
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost

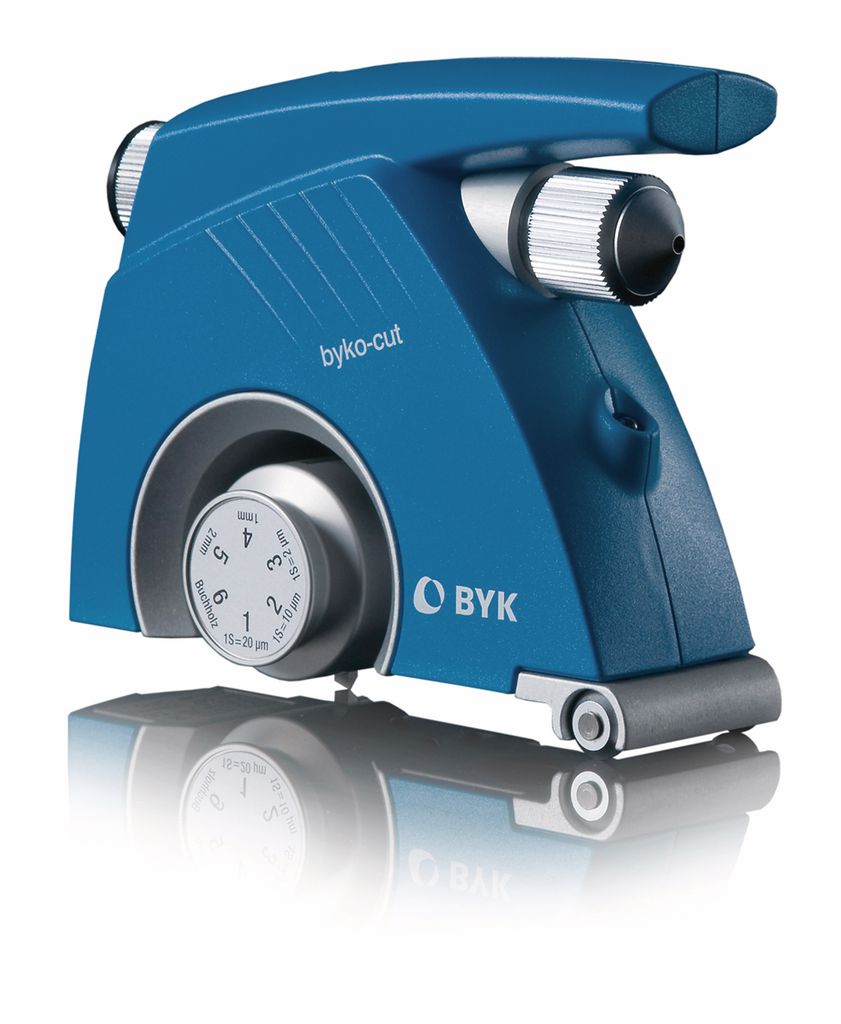

The byko-cut universal is a multi-purpose paint testing instrument that measures paint coating thickness, paint adhesion, and coating hardness.
- Can measure coating thickness on metal, wood, plastic, and other rigid substrates
- Multi-layer coating thickness can be measured
- Built-in microscope can also be used for assessing paint imperfections
- Rotating blade holder for easy, safe change-over of the cutting blades
- Optional cross-cut blade to perform a cross-hatch adhesion test
- Optional Indentation hardness blade to comply with ISO 2815 Buchholz hardness
- LED illumination for easy visual assessment
- Portable design for field testing and inspection
consentmanager.net| Thickness Measurement | |
|---|---|
| Measuring Range Mils / µm | |
| Measuring Range | |
| Lamp | |
| Microscope | |
| Technical Specifications | |
| Full Scale Calibration Range Mils/ µm | |
| General | |
| Power supply | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
| Technical Properties | |
| Measurement Unit | |
| Thickness cutters 1 - 3 | |
| ASTM | D4138 D3359 D3002 |
|---|---|
| DIN | 50986 53151 |
| ISO | 2409 2808 2815 |
Built-in microscope (scale 0 - 2 mm)
LED
Battery
Manual
Carrying case
Manuals
- Operating_Manual_byko-cut_183019275_E_2505.pdf
Operating_Manual_byko-cut_183019275_E_2505.pdf
Short Instructions
- Short_Instructions_byko-cut_183020787_E_0812.pdf
Short_Instructions_byko-cut_183020787_E_0812.pdf
Brochure
- Technical_Data_Sheet_byko-cut_Destructive-Film-Thickness-Gauge_20241211.pdf
Technical_Data_Sheet_byko-cut_Destructive-Film-Thickness-Gauge_20241211.pdf
Destructive Film Thickness Measurement
Create a V-shaped cut through the coating down to the substrate and measure width of a’ (b’), which is proportional to the thickness a (b).
The specially designed blades which are attached to the instrument are used to make a short incision in the film. Then, the depth of the layer is measured with the built-in 50 fold microscope and the film is inspected for flaws.
Each of the cutting tips has two bevels which are made to precision with the mentioned slopes (see table). Since the slope of the cut is known, the measurement of the horizontal distance across this full slope (from the substrate to the top edge of the cut) is also a measurement of true vertical depth.
Buchholz Indentation Hardness
Place the byko-cut universal equipped with tool (Cat. No. 3427) and slip-on weight (Cat. No. 3434) on measuring position in accordance with standard. After 30 seconds measure indentation length using the built-in microscope.
Film thickness
For all requirements associated with a coating, there is an optimal layer thickness to ensure good flow and leveling, gloss, optimal color uniformity and opacity as well as good protection against environmental influences and corrosion. If the layer thickness is too high, mechanical-technological properties such as mandrel bending tests, stone impact tests and ball impact tests deteriorate, and the cost-effectiveness of the painting process also decreases. For this reason, layer thicknesses are worked out and specified by the paint supplier and quality assurance. These must be regularly checked and documented.
