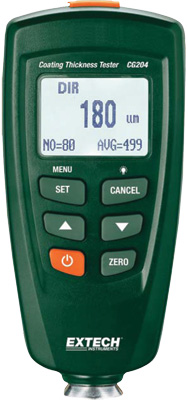

CG204 DFT Coating Thickness Tester

Article No. 11025

Dry Film Thickness Gauge 0-49 mils

The CG204 Coating Thickness Tester is has automatic substrate recognition. It has magnetic induction for ferrous substrates and eddy current measurement for non-ferrous substrates.

$255.00 excl. taxes & shipping cost


  • Easy-to use menu system
  • Two measuring modes: Single and Continuous
  • Two working modes: Direct and Group
  • Memory stores 400 readings: 80 Direct and 320 Group
  • User-programmable high/low alarms
  • Min/Max/Average
  • One or two point calibration
  • USB interface includes software

Technical Attributes

  • Data
    Sensor ProbeFerrousNon-Ferrous
    Working Principle:Magnetic InductionEddy Current
    Measuring Range:0 to 1250μm
    0 to 49mils
    0 to 1250μm
    0 to 49mils
    Basic Accuracy:±3%±3%
    Resolution:0.1μm (0.004mils)0.1μm (0.004mils)
    Minimum Curvature Radius:1.5mm (59.06mils)3mm (118.1mils)
    Minimum Diameter:7mm (275.6mils)5mm (196.9mils)
    Minimum Substrate Thickness:0.5mm (19.69mils)0.3mm (11.81mils)
    Dimensions:4.7 x 2.4 x 1.25” (120 x 62 x 32mm)
    Weight:6.17oz (175g)

Delivery Content

2 AAA batteries, USB cable, Calibration Iron, Calibration Aluminun, Precision Standards, Pouch case, Software
