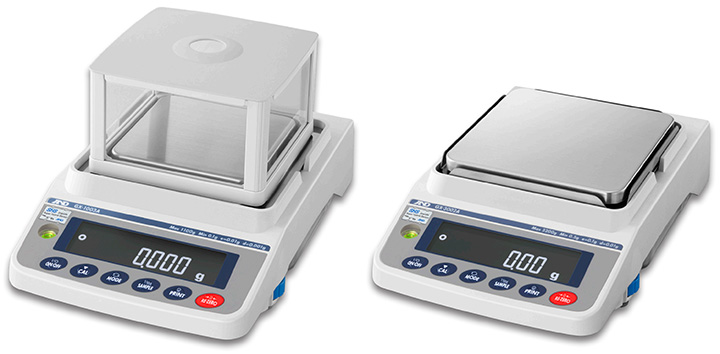

Apollo GX-A Series Precision Balances

Article No. 10821

A&D GX1003A Balance 1200g x 0.001g

The Apollo GX-A Series Precision Balances feature a Smart-Super Hybrid Sensor (SHS) technology, which gives higher maintainability with a reduced number of parts while still offering maintenance accessibility, unlike other Mono-type systems which only increase cost of ownership.

$3,371.00 excl. taxes & shipping cost


  • Advanced Technologies Providing Innovative Solutions
  • The Smart sensor improvements stem from better design, construction, and materials, resulting in better performance and turbo stabilization times of 1 second. This increases productivity for all weighing work-flows in both labs and production environments.
  • Remarkable cost and time savings at the touch of a button
  • Factory Tough - Laboratory Precise
  • Real-time feedback prevents the sensor from being damaged
  • Shock-log pinpoints the exact moment a critical shock occurred to quickly assess and fix critical failure to get operations back online
  • Devices can sync for better accuracy & precision
  • Protects and adheres to good data management, documentation and compliance practices
  • The weight sensor is well protected against vertical and transverse static overloading. It won’t break due to malfunction of the weighing system’s actuator and the resulting excess “E” load.
  • Additionally there are two leaf springs that support the weighing pan of the Apollo series also mitigate impact shocks significantly.
  • Quick Min-S - From the standard deviation obtained using ECL described earlier, the Apollo series also calculates and indicates the minimum weight at the installation location3 in accordance with the United States Pharmacopeia (USP) standard.
  • Min-S Alert - To ensure that the measured sample quantity meets the minimum weight requirement, the Apollo series can display an alert until the sample quantity reaches the value entered as the minimum weight.
  • Password-Protect - Use of the balance can be password-protected for authorized individuals (up to 11 including one administrator) - the administrator can perform all operations including calibration while other users can make measurements only. Moreover, upon receiving a command to disable its keys, the balance becomes operable only by sending commands from an external device such as a PC.
  • Automatic Self-Calibration (ASC) - The GX-A can be set to calibrate itself automatically using its internal weight either (1) in response to change in ambient temperature to prevent error due to sensitivity drift, (2) at a set interval time, or (3) at predetermined (up to three) times of the day. Internal calibration can also be performed any time with one key press.
  • GLP/GMP/GCP/ISO - Compliant Output For documentation requirements, the Apollo series can output its manufacturer, model, serial number, ID number, date + time, space for signature for calibration report, calibration test report, and title & end blocks for a series of weighing results.
  • Universal Flexi Coms (UFC) - UFC lets you edit serial data output/printout format. With this function, label printing is also made possible by connecting the balance to a commercially-available printer4, and enabling the arbitrary character strings output.
  • Statistical Calculation Function (SCF) - The Apollo series can display and output statistical calculation data including number of data, sum, maximum, minimum, range (maximum-minimum), average, standard deviation, and coefficient of variation to facilitate the analysis of measurements.
  • Gross/Net/Tare Output - On receiving a command or with key operation, the Apollo series outputs the gross, net, and tare values to an external device such as a printer, PC or PLC.

(3 The effects of the ambient environmental conditions on repeatability is taken into account, unlike the values shown in catalogs as "ideal" or "typical".
4 Printers can be programmed to print from string sent via RS232C. Cross cables may be required based on the external device.)

Technical Attributes

  • Data
    Capacity:1100 g
    Readability:0.001 g
    Repeatability (Std. Deviation):0.001 g
    Linearity:±0.003 g
    Accuracy Immediately After Internal Calibration (for the GX-A series): i±0.010 g
    Stabilization Time:Approx. 1 sec (approx 0.8 sec for 5 g)
    Sensitivity Drift:±2 ppm / °C (10 °C to 30 °C / 50 °F to 86 °F, when automatic self-calibration is OFF)
    Calibration:TypeGX Internal / GF External
    Wt g50 g
    100 g
    (100 g interval)
    1000 g
    Display:Reverse Backlit LCD (Character height: 17.8 mm)
    Display Refresh Rate:5 times / second, 10 times / second or 20 times / second
    Units of
    Measure: ii
    g (gram), oz (ounces), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (specific gravity), and a user-programmable unit.
    Counting Mode:0.001 g - Min unit mass
    Number of samples 5, 10, 25, 50 or 100 pieces
    Percent Mode:0.100 g - Min 100% ref mass
    0.01%, 0.1% or 1% (depends on the reference mass stored) - Min 100% display
    Operating Environment:5 °C to 40 °C / 41 °F to 104 °F, 85% R.H. or less (no condensation)
    Power Supply / Consumption:AC adapter / approx. 30 VA
    Communication Interface:RS-232C and USB
    Weighing Pan Size:128 mm x 128 mm / 5 x 5 in
    Dimensions:(W x D x H) 212 x 317 x 93 mm / 8.3 x 12.5 x 3.7 in
    Net Weight:Approx. 5 kg / 11 lb

More Information

Electronically Controlled Load (ECL) Innovation - The operator simply holds the mode key to first perform a self diagnostic check and proceed to ECL where internally a repeatability test is performed without use of an external weight. This critically checks the stability of analog-to-digital conversion before applying a controlled load inside the balance (between 0.3% to 3% of the weighing capacity). It does this by altering the equilibrium state of the weigh sensor and takes 10 repeated measurements. The entire process takes only 1.5 minutes versus traditional repeatability procedures which can take up to 10 minutes, ultimately giving greater convenience and time savings to customers. The ECL technology provides valuable information which Auto Precision Assessment (APA) smartly processes into meaningful, beneficial outcomes such as Dia-Check, Standard Deviation, Quick Min-S, and Min-S-Alert. Dia-Check quickly gives users peace of mind to proceed with daily weighing routines, providing a critical pass or fail indication. A powerful, dynamic tool to diagnose, and verify balance performance. ECL steps it up a notch by producing the most valuable information, the Standard Deviation (SD), allowing users to quickly assess the balance performance under any given environment. This is helpful to include in daily SOP checks. SD also can determine the minimum sample weight with a feature called QuickMin-S. QuickMin-S helps to overcome challenges with handling small weights, accessibility to in-line systems, and in tough environmental conditions ECL goes one step further allowing users to set the minimum sample weight limit and provides a real time alert with Min-S-Alert. Users always feel secure knowing they are in compliance of USP 41 and does not limit how often a minimum sample weight can be determined. This gives more flexibility to follow recommendations of USP 1251. What is so remarkable is this can be performed at the touch of a button, within minutes, in challenging conditions, without the need of an external calibration weight.


Impact Shock Detection (ISD) Innovation - Often balances can be damaged or errors can occur due to sharp impacts from automated machine loading or operators dropping material onto the pan. The Apollo series educates, prevents and documents such scenarios. ISD visually indicates the magnitudes of impact shocks that a weigh sensor receives at four different levels. It audibly beeps once at Level 3 and twice at Level 4 delivered through the feature of Impact-Alert. This patented technology provides real-time feedback mechanisms that prevent the sensor from being damaged and can ultimately train and influence operator behaviors. ISD smartly strives for operators to have better weighing techniques, while also helping to program or modify loading in-line automated processes. Impact-Alert ensures the investment of the balance is protected, helps to extend the life of balance, reduce repair and replacement cost and ensure productivity can be maintained by reducing downtime. ISD takes protection one step higher with Shock-log that documents the date, time, and shock level. This enables managers and quality officers to pinpoint the exact moment a critical shock occurred to quickly assess and fix critical failure to get operations back online.


Flow Rate Display (FRD) Innovation - Many operators use a stopwatch or PC to determine a flow rate. FRD helps to streamline and improve both by offering a synced solution that improves accuracy and precision in filling or dosing applications. For example, the internal clocks of external devices are never in complete sync with precision balances. Therefore there is a time-clock disparity that is most noticeable when measuring and recording flow rates of pumps, feeders and other devices at short intervals*1. Therefore command speed and refresh rate will cause the PC to intermittently produce irregular values or spikes even if the actual flow rate is constant. The Apollo series through an FR-Cal function calculates, displays, & outputs (WinCT-FRD) the mass flow rate, or the volume flow rate by entering the density of the material. Up to 10 densities can be saved to the device. Both the display refresh rate and interval (set between 1 second and 1 hour) are regulated by the same internal clock of the balance, making measurements free from the irregularity that rise from time clock disparity problem. Now what is smart about FRD technology is that we can use a comparator function of FR-Compare to provide a feedback mechanism to the user if the flow rate is going too fast or too slow or indicate if flow rate is kept within the designated limits. Lastly, if the worst happened with a power outage during the “loss-in-weight” measurement, the tare value is stored in our non-volatile memory. The remaining amount in the container can be displayed again and the application can continue through our FRSecure.*2 This avoids loss of sensitive materials and lost time. Flow rate measurement using FRD as opposed to the conventional method.

*1 Flow rate is determined from the weight variation that occurs during a given interval.
*2 When function is activated, the power-on/rezero/tare is toggled off.
