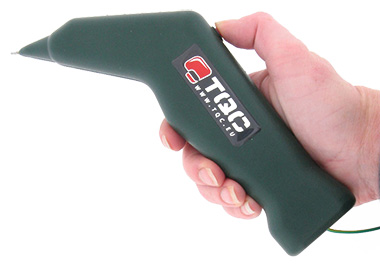

The Coatings Conveyor Ground Test is a low cost, easy to use ground check that is battery operated. This conveyor ground test informs you whether items to be painted are sufficiently grounded. It is also specially designed for electrostatic coating applications.
Simple and easy-to-use
Low cost device for ground test
Great for use in automotive & industrial finishing industries
Specially designed for electrostatic coating applications
Easy cleaning with a soft dry cloth, no detergents
A poor ground of the pieces to be coated may result in a poor quality of the electrostatic coating work. Coating thickness may not be sufficient or the pieces may not be even covered. Consult your paint manufacturer or the supplier of your spray equipment for correct values.
|Range:||0 - 0,01 MΩ - One green LED|
0,01 - 0,1MΩ - Two green LED's
0,1 - 1,0 MΩ - One yellow LED
1,0 - 20 MΩ - One red LED
20 MΩ - Two red LED's
|Dimensions:||208 X 50 X 25 mm|
|Earth Lead:||200 mm|
|Power:||One 9V Alkaline battery|
Simply connect the cable crocodile clip to a known good earth point
The instruments performance can be tested by touching the ground clamp with the metal tip of the instrument. One green LED should light up when the button is pressed.
Then point instrument to the part to be painted, touching the bare metal surface. Make sure the ground clamp and instrument tip are free of dirt as this may affect the results.
Press the button
Results are indicated through two green, one yellow and two red lamps.
To replace battery loosen the three screws at the side of the instrument and exchange battery. Then close the case and tighten the three screws.
