Mitutoyo Dial Thickness Gauges

Article No. 12163

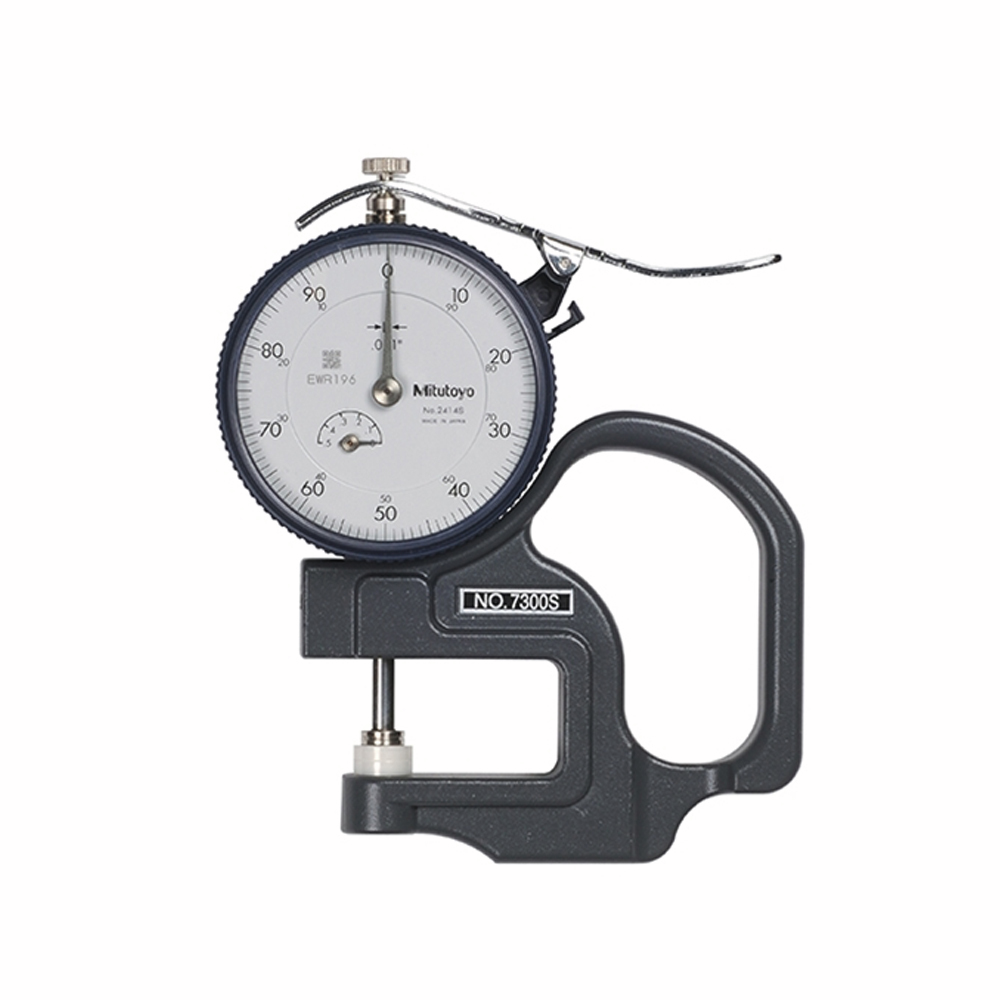

Dial Thickness Gauge .001”

  • Mitutoyo Dial Thickness Gauge
  • Graduation .001
  • Range 0 - 0.5"

Select your model

$175.00 excl. taxes & shipping cost


The Mitutoyo flat anvil thickness gage measures the thickness of a wide range of materials and objects including film, wire, sheet metal and other similar materials. Our fine dial reading gages are ideal for measuring the thickness of paper. The indicators’ contact points are coated with ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy and the white dial face is easy to read.


  • The Mitutoyo flat anvil thickness gage quickly measures the thickness of different materials or objects with high accuracy.
  •  These gages are available with standard or deep-throated frames along with fine dial readings.
  • Metric and Inch models available
  • Available with fine measurement dials
  • Available with deep-throated frames
  • White dial face for easier, precise measurement readings
  • Anvil and contact point are constructed of ceramic for better corrosion resistance
  • Measuring force is 1.4N or less
  • Crystal is glare-free with a scratch-resistant coating
  • Supplied in a fitted plastic case

Technical Attributes

  • Data
    Part No.:1216312165
    Range:0 - 0.5"0 - 0.05"
    Dial Indicator Accuracy:±.001"±.0002"
    Measuring Force:Less than 1.4N
    Remarks:StandardFine dial reading

Delivery Content

Supplied with fitted plastic case
