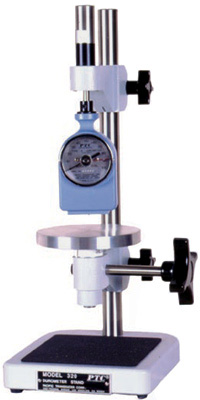

Model 320 Durometer Test Stand

Art. No.: 11633

Durometer Stand

The Model 320 Durometer Stand is designed to be used with many durometer Types A, B, C, D, DO and O. A unique, spring load cell can be easily set for the proper precision spring load. This system provides similar loads to ASTM recommendation of 1 kg for Types A, B, and O; and 5 kg or Types C, D and DO.

Select your Model

$1,538.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • Designed for use with most styles of durometers
  •  Lightweight and very portable
  • Maximize your productivity with this precision engineered durometer accessory
  • Use of this spring loaded test stand and your durometer gives you the most accurate readings, better repeatability, and the fastest method of testing
  • This stand simulates the ASTM recommended masses, providing a consistent load each and every test.
  • Unique load cell system can be set for Type A, B, & O durometers and with a simple adjustment can also switch to Type C, D & DO durometers. The load cell enables the user to instantly change loads without having to handle heavy 1 kg or 5 kg weights. By lifting and turning the load cell cap and installing the proper durometer, the unit is ready for making tests of another ASTM Type scale.

Technical Data Chart
Data
Maximum working height for samples is:5 in. (12.7 cm)
Height:17 in. (43.2 cm)
Width:6 in. (15.2 cm)
Depth:7 in. (17.8 cm)
Weight:9 lb. (4.1 kg)
Shipping Weight:14 lb. (6.4 kg)
