Pendulum Skid Tester

Article No. 11431

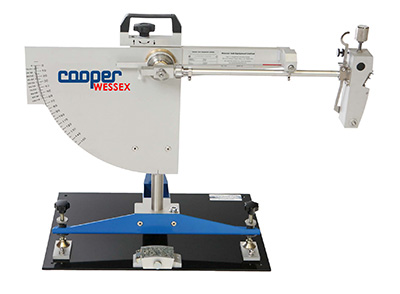

Pendulum Skid Tester Complete

The Cooper-Wessex Pendulum Skid Tester is the established world leader in its field equipment. The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface.

$6,572.00 excl. taxes & shipping cost


  • It is based on the Izod principle: a pendulum rotates about a spindle attached to a vertical pillar.
  • Designed for laboratory and in situ road surface testing
  • Provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.
  • Originally designed in the 1940s in the US, the instrument was further developed in the 1960s at the UK Transport Research Laboratory for the testing of road surfaces.
  • Dispatched calibrated to EN1097-8 (accredited under ISO 9001:2000)
  • Low friction arm, and lightweight pointer
  • Comes with integral "F" scale for use with small slider set for 76mm slide length. (PSV test)
  • Repeatable and reproducible
  • Supplied with robust carrying case
  • Great for assessment of surface friction and skid resistance properties, and the testing of aggregates in the PSV (Polished Stone Value), new road surface materials under development, pedestrian walkways,traffic accident investigations, litigation investigations, and pavers in the flat bed polisher
  • Made in the United Kingdom

Technical Attributes

  • Data
    DescriptionNameSlider Usage
    TRRL 3.0Slider 55Road surfaces, surfaces rougher than normal floors
    TRRL 1.250Slider 55PSV Test
    FOUR SSlider 96Internal Floors
    CENCENSome European Standards


BS EN 1097-8 determination of polished stone value
AS/NZS 4586:1999 slip resistance classification of new pedestrian surface materials
BS 6077 Pt1 clay and calcium silicate pavers for flexible pavements
BS 7044 artificial sports surfaces: person/surface interaction
BS 7188 impact absorbing playground surfaces
BS 8204 in situ flooring, part 3 code of practice for polymer modified cementitous wearing surfaces
ASTM E303 standard method for measuring surface frictional properties using the British Pendulum
BS 7976 method of operation and calibration of the pendulum tester
EN 1436: 1997 road marking materials
BS EN 13036-4:2003 road and airfield surface characteristics
BS 812 Pt. 144
AS 4586


  1. At the end of the tubular arm a head of known mass is fitted with a rubber slider.
  2. The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity.
  3. The distance travelled by the head after striking the sample is determined by the friction of the sample surface.
  4. A reading of Skid Resistance is obtained.

Delivery Content

Tool Kit and Pendulum Instrument with case


1.25" Rubber Mounted PSV Ider (55)
3.00" Rubber Mounted TRRL Ider (55)
3.00" Rubber Mounted Four S Ider (96)
3.00" Rubber Mounted Cen Ider
Base Plate
Spreader Feet For Uneven Surfaces Set/3
60 Grade Si lapping paper, 10 sheet (A4)
