Q-Panel Paint Test Panels

Article No. 12905

Q-Panel QD Steel Panel 2 x 4" pk/600

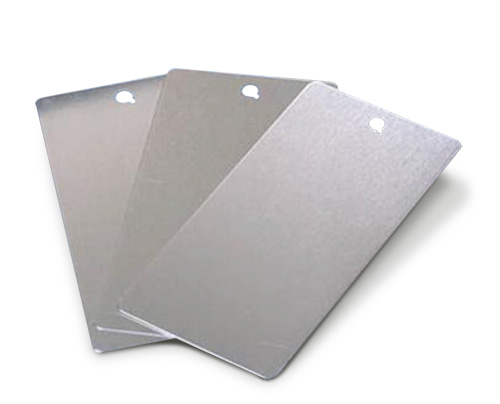

Q Panel brand test panels minimize metal variability in coatings tests. These spray out cards are available in various sizes and finishes, including bare steel, iron phosphated steel, bare aluminum and chromated aluminum. Panels are supplied pre-cleaned, with a 1/4" (6mm) Q-shaped hole. For safety and ease of handling, the panels have rounded corners and deburred edges.



More options

Material
Size
$383.00 excl. taxes & shipping cost

Features

Aluminum test substrates minimize metal variability as a source of bias in critical tests. Made from high quality aluminum, they are clean, consistent, convenient, and economical. A wide range of panel sizes and types are available and are typically in stock. Panels are stored completely clean, and in most cases can be used right out of the box. Because they are lightweight and rust free, it is often more convenient to use aluminum panels in place of steel. Aluminum panels can be used to replace steel for sales samples, color standards, mailing and even for weathering tests.

  • Bare Aluminum Panels (Type A) are our standard aluminum panels, made from alloy 3003 H14, and are 0.64 mm (0.025 in) thick. Alloy 3003 H14 is now the most widely used general purpose aluminum alloy from coil stock.
  • Chromated Aluminum Panels (Type AL) are treated with a chromium conversion coating which improves paint adhesion and resistance to underfilm corrosion. Most aluminum is given such a pretreatment prior to painting. Type AL are made from alloy 3003 H14, and are 0.64 mm (0.025 in) thick.

Steel test substrates minimize metal variability as a source of bias in critical tests. Made from standard low-carbon, cold-rolled steel, they are clean, consistent, convenient and economical. A wide range of panel sizes and types are available and are typically in stock. Panels are stored completely clean and, in most cases, can be used right out of the box. Steel panels are made from standard low-carbon, cold-rolled steel complying with ASTM A 366, A 109 and QQS-698.

  • Smooth Finish Steel Panels (Type QD, and DT) have a smooth, bright finish. Type QD are 0.020 in (0.51 mm) thick, and are our smoothest panel. They are recommended for testing gloss and color, and are the best buy for many general applications. Type DT are very thin 0.010 in (0.25 mm), flexible panels and are tin plated. These types are very inexpensive and are stocked in a limited number of sizes.
  • Matte Finish Steel Panels (Type R) are a dull matte mill finish produced by roughened rolls. This matte finish is representative of general purpose sheet metal applications. Because they are thicker, 0.032 in (0.81 mm), Type R panels are more rigid than Type QD.
  • Ground Polished Finish Steel Panels (Type S) are the same steel as Type R, with a thickness of 0.032 in (0.81 mm), but one side is polished by grinding it with an abrasive until the mill surface is completely removed. This imparts a smooth surface that looks similar to a “brushed” finish. The ground (or polished) surface frequently gives better adhesion results than a matte finish.

Technical Attributes

  • Material
    Steel Type QD
  • Size
    2 x 4 x 0.020"
  • Data
    Aluminum Panels:Type A/AL
    Alum. Assoc. Material Design:3003 H14
    ASTM Material Specifications:B209
    AMS Material Specifications:QQ-A-250/2
    ISO Material Design (ISO 209-1):AlMn1Cu
    ISO Panel Specifications:209-1, 1514
    Tensile Strength (kpsi):20 - 26 (kpsi) / 140 -180 (MPa)
    Min Yield Strength (kpsi):17 (kpsi) / 115 (MPa)
    Aluminum (%):Balance
    Copper (%):0.05 - 0.20
    Iron (%):<0.70
    Manganese (%):1.00 - 1.50
    Silicon (%):<0.60
    Zinc (%):<0.10
    Others (Each/Total) (%):0.05 - 0.15



    Steel Panels:Type QDType RType SType DT
    SAE Material Designation:1008/1010
    ASTM Material Specifications:A1008A624
    ISO Material Specifications:3574 Type CR111949
    ASTM Panel Specifications:D609 - Type 3D609 - Type 1D609 - Type 2-
    ISO Panel Specifications:1514 - Type 31514 - Type 11514 Section 3.5.41514 Section 4.1
    Roughness Ra (micro-inches):<2025-6520-45<20
    Surface Finish:Smooth

    Bright finish produced at the steel mill by rolling with smooth ground rolls. Recommended for testing gloss and color. NOT recommended for physical properties and corrosion tests.
    Dull Matte

    Mill finish produced by roughened rolls. This matte finish is representative of general purpose sheet metal applications. Because they are thicker, more rigid than Type QD.
    Ground

    Polished Finish (one side), same steel as Type R but one side polished by grinding with an abrasive until mill surface is completely removed. Not representative of any specific steel surface normally used for painting, they are widely used because they provide a standardized surface for testing.
    Tinplate

    Tin-plated with bright reflow finish. This type is required by some government standards.
    Temper:1/4 hardT2
    Hardness (Rockwell B):50-65
    Tensile Strength (MPa):310 - 448262 - 400
    Also Available: Smooth Finish Panels, Thin, Flexible (Smooth Finish Type D) Panels, Adhesion Panels (Ground Finish), Taber® Abraser Panels, 304SS Panels.
