Lab Resin Mixers

Article No. 12224

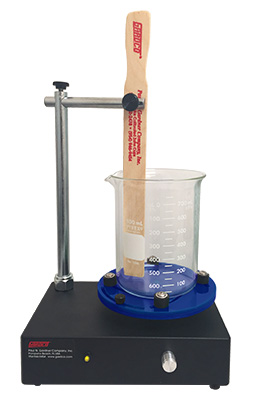

Lab Resin Mixer W/Wd Paddles (100)&12Vac

The Lab Resin Mixer is the easiest way to mix small batches of viscous liquids and needs no clean up. It is especially suited for small batches of messy resins, thick liquids. Just start mixing and walk away! This mixer saves time wasted by hand mixing. It is simple to install and operate, and is a semi-automatic mixer.

$374.00 excl. taxes & shipping cost


  • Eliminates variation by always mixing at the same rate
  • Gentle mixing does not incorporate air bubbles into your mixture
  • Complete mixing assured because fatigue, boredom and impatience of hand mixing is eliminated
  • Any container size up to 4 inch diameter
  • Consistent mixing same speed every time
  • Variable speed knob for different viscosities. Up to 60 RPM
  • Mixes high viscosity liquids up to 30,000 Cp.
  • Ideal for epoxy resins or polyester resins but also used for paints, solder masks and other liquids.

Technical Attributes

  • Data
    Power Jack Inside Dimension:2.1 mm
    Power Jack Outside Dimension:5.5 mm
    Base Size122 mm L x 15 mm W x 44 mm H
    Chuck Max. Opening Size
    Chuck Min. Opening Size
    4.2" (107 mm)
    2.0" (50.8 mm)
    Maximum Rotation Speed60 rpm
    Input Voltage9-12VDC
    Base ConstructionCast aluminum
    Maximum Viscosity30,000 Cp
    Package Weight2 kg
    MaterialViscosity in Centipoise (CP)*
    SAE 10 Motor Oil85-140
    SAE 20 Motor Oil140-420
    SAE 40 Motor Oil650-900
    Castor Oil1,000
    Karo Syrup5,000
    Chocolate Syrup25,000
    Sour Cream100,000
    Peanut Butter250,000
    *Approximate viscosity


  1. Simply tighten your container in the adjustable chuck. The chuck, known as a "Longworth chuck", consists of two discs that rotate counter to each other in order to cause the grips to move inwards to tighten on the container.
  2. Then secure a wood stick in the stick-holder-arm and turn on the speed knob to desired speed. The mixing stick interrupts the fluid movement and this turbulence causes the contents to mix.
  3. When mixing is complete, simply throw away the stick. No other cleanup is necessary.

Delivery Content

Lab Resin Mixer ships with 100 wood paddles and 12V AC adapter.


Wood Paint Paddle, 12 x 1-1/8”
Staccup Disposable PP Beakers 500cc/100P
