Drum Tumblers
Article No. 14942

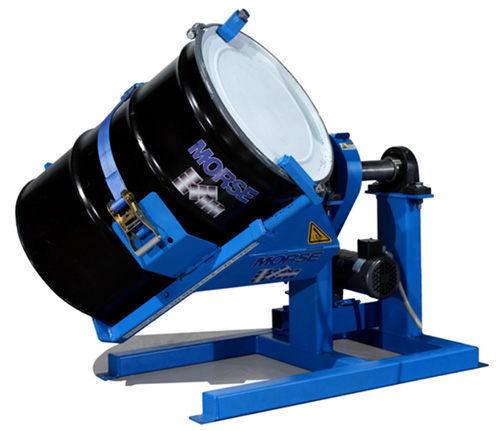

Drum Tumbler 309-3
The Morse 309 Series Drum Tumblers rotate "corner-over-corner" to thoroughly mix drum contents without ever opening drum. This prevents messy cleanup from insertion mixers; reduces hazards and worker exposure; incorporates settled or stratified valuable ingredients; homogenizes liquid, granulated, or powdered products; and eliminates sediment at the bottom of a drum.
Features
- Barrel agitators mix drum contents without even opening it
- Prevent messy cleanup of insertion mixers
- Reduce hazards and worker exposure
- Incorporate settled or stratified valuable ingredients
- Homogenize liquid, granulated or powdered products
- Eliminate sediment at the bottom of a drum
- Tumble many different drums, including a 55-gallon (210 liter) or 30-gallon (114 liter) steel, fiber or plastic drum / barrel
- Tumble drum with 18" to 23.5" (46 to 60 cm) diameter, and 29" to 37" (74 to 94 cm) tall
- Drum Holder secures drum, and is easily loaded with your hoist or crane with model 92 Below-Hook Drum Lifter, or with your forklift, model 284 Fork Hook, and model 92 Below-Hook Drum Lifter
- Variable Speed rotates from 2 to 20 RPM
- Control Package and Guard Enclosure each sold separately
- IMPORTANT: OSHA requires enclosure with safety interlock.
- Capacity:
- 800 Lb. (363 kg) Full Drum
- 400 Lb. (181 kg) Half-Full Drum - Half-Full Capacity is an indication of the capacity for tilting an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
Technical Attributes
-
- Data
-
Motor: Inverter duty Phase: 3-Phase Motor Voltage: 230/460 Hz: 60 Full Load Amp Draw: 2.8/1.4 Drum RPM: 14 RPM or Variable Speed 2 to 20 RPM with Morse Control Package Domestic Ship Weight: 638 Lb. (290 kg) Domestic Ship Dimensions: L72" W42" H46" (183 x 107 x 117 cm)
Other Variations
