Oven Tracker Accessories

Article No. 13442

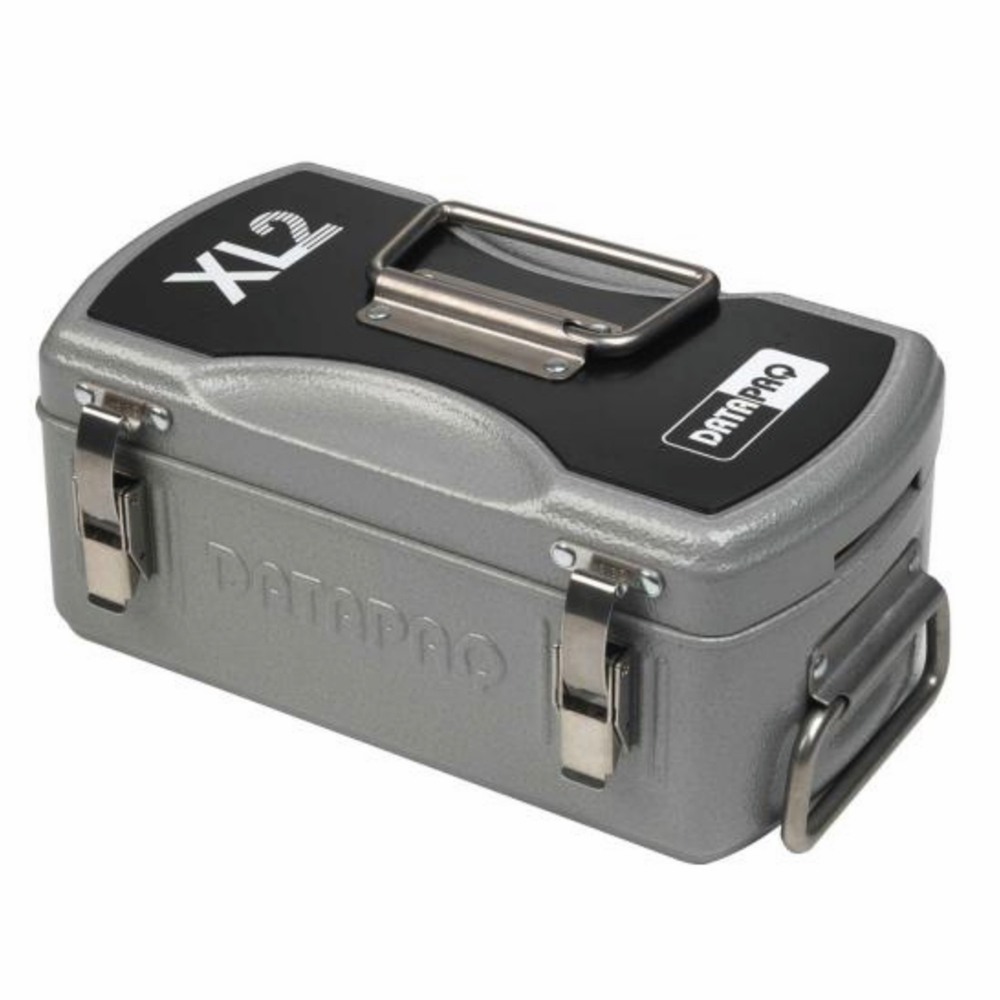

Datapaq Thermal Barrier

The standard XL2 barrier, designed specifically for use on automotive paint lines. Weighing less than 4 kg (9 lbs) ensures easy, safe handling and transportation.

Select your model

$4,639.00 excl. taxes & shipping cost


  • The patented Silicone-free barrier construction eliminates concerns for contamination and possible damage to paint finishes caused by silicone products.
  • Ceramic insulation and phase-change heatsink technology, provides dual heat protection and enables safe logger operation for 3 hrs at 200ºC (392ºF). This allows multiple runs and eliminates the chance of damage to the data logger during unplanned process delays.
  • With the redesigned barrier lid, even a bulky gloved hand can easily access the logger. You can even check the data logger status without removing it from the barrier.
  • Strong, secure catches with locking pins guarantee the lid remains securely in place.
  • Aluminum construction ensures the barrier is lightweight, compact and easy to handle. Carry in one hand with magnetic thermocouples attached to the ferrous lid plate for easy transportation.
  • Heatsink allows easy cable routing from the data logger out of the barrier

Technical Attributes

  • Data
    Weight:                    Thermal Barrier: 5.85 lbs (2.65 kg)
    Heatsink 2.2 lbs (1.0 kg)
    Dimensions (HxWxL):5.3  x 7.4 x 11.7" (134 x 187 x 296 mm)
